Delivery lead time upon request
90° bend 60 FS
Item no. 7124430 | EAN 4012196687657
- Product description
-

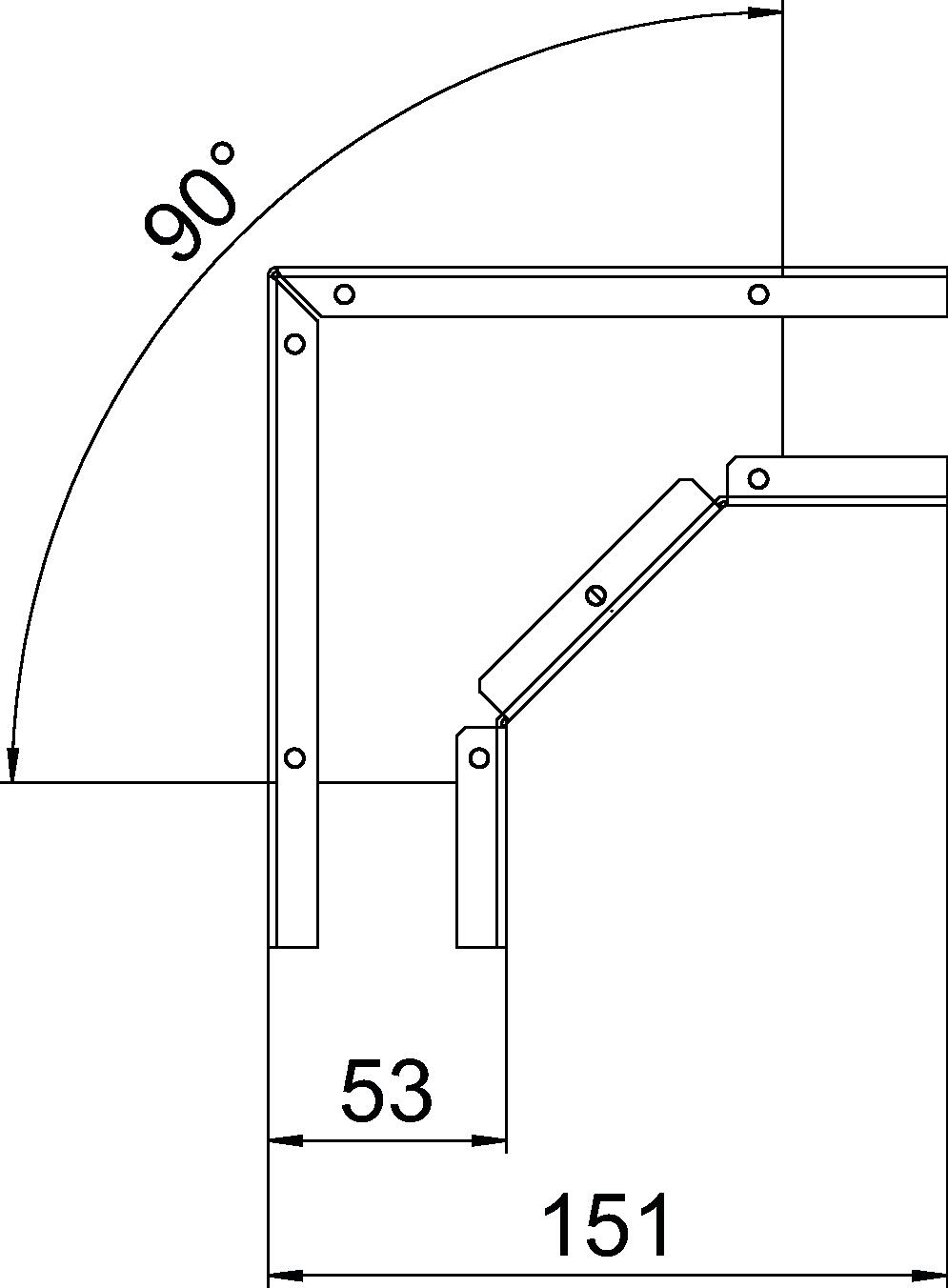

Product description90° bend for horizontal routing of cable trays, type RKS 605.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Connector version Supplied connectors Dimension 60x50 Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no ROHS-conformant yes Rustproof steel, pickled no Side perforation no Surface Strip galvanised Type Bend, rigid Type of connector, cable support system Screwed Wide-span version no Dimensions
Dimension B 50 mm Dimension R 50 mm Height 60 mm Height 2 in Width 50 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,3056 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,3056 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet RB 90 605 FS / 7124430 , 0.17MB , pdfEU declaration of conformity RB 90 605 FS / 7124430 , 0.10MB , pdfREACH Declaration of conformity RB 90 605 FS / 7124430 , 0.12MB , pdfRoHS Declaration of conformity RB 90 605 FS / 7124430 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
