Note: This article is discontinued.
You can find the current article here: 6036590 / 90° bend 60 FT

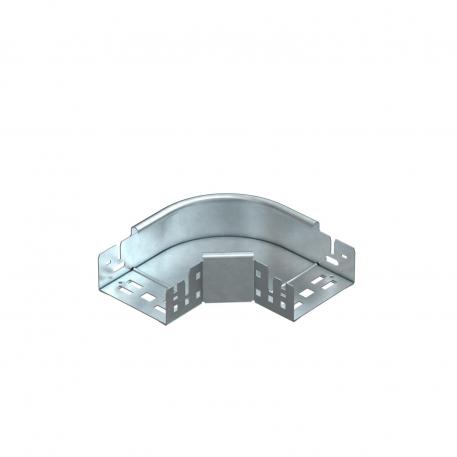

90° Magic bend 60 FT
Item no. 6041150 | EAN 4012195881889
- Product description
-
Product description90° bend with quick connector system. For all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Connector version Integrated connector Dimension 60x100 Maintain electrical functions yes Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation no Surface Hot-dip galvanised Type Bend, rigid Type of connector, cable support system Click fastening Wide-span version no Dimensions
Dimension B 100 mm Height 60 mm Height 2 in Width 100 mm Width 4 in CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,0772 kg CO2e / 1 Piece CO₂ Footprint (GWP) 2,0772 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
- Downloads
-
Data sheet RBM 90 610 FT / 6041150 , 0.18MB , pdfEU declaration of conformity RBM 90 610 FT / 6041150 , 0.10MB , pdfREACH Declaration of conformity RBM 90 610 FT / 6041150 , 0.12MB , pdfRoHS Declaration of conformity RBM 90 610 FT / 6041150 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
