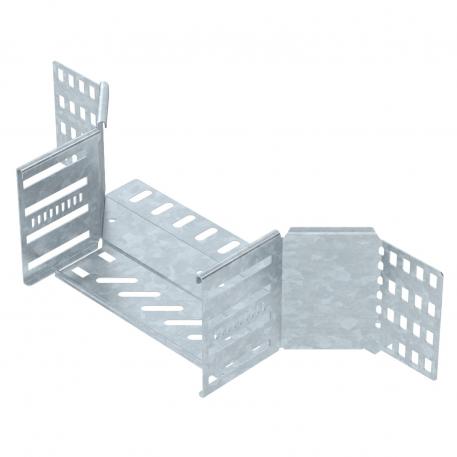

Add-on tee 110 FT

Item no. 6042255 | EAN 4012197342814

Item no. / Types

Width

Colour	zinc

Product description

Product description

Add-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 110 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.

Technical data

Technical data

Colour	zinc
Connector version	Integrated connector
Departing width	200 mm
Dimension	110x200
Maintain electrical functions	no
Material	Steel
Material thickness, floor plate	0,8 mm
NATO hole pattern	no
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	0,8 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	20 St.
Rustproof steel, pickled	no
Surface	Hot-dip galvanised
Type of connector, cable support system	screwed/clamped
Wide-span version	no

Dimensions

Dimension B	200 mm
Height	110 mm

Width	200 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	1,858 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	1,858 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Width	Colour	Item no.	Quantity	SSU
RAA 110 FT	100 mm	zinc	6042251	piece	1 piece
RAA 115 FT	150 mm	zinc	6042253	piece	1 piece
RAA 120 FT	200 mm	zinc	6042255	piece	1 piece
RAA 130 FT	300 mm	zinc	6042257	piece	1 piece
RAA 140 FT	400 mm	zinc	6042259	piece	1 piece
RAA 150 FT	500 mm	zinc	6042261	piece	1 piece
RAA 160 FT	600 mm	zinc	6042263	piece	1 piece
