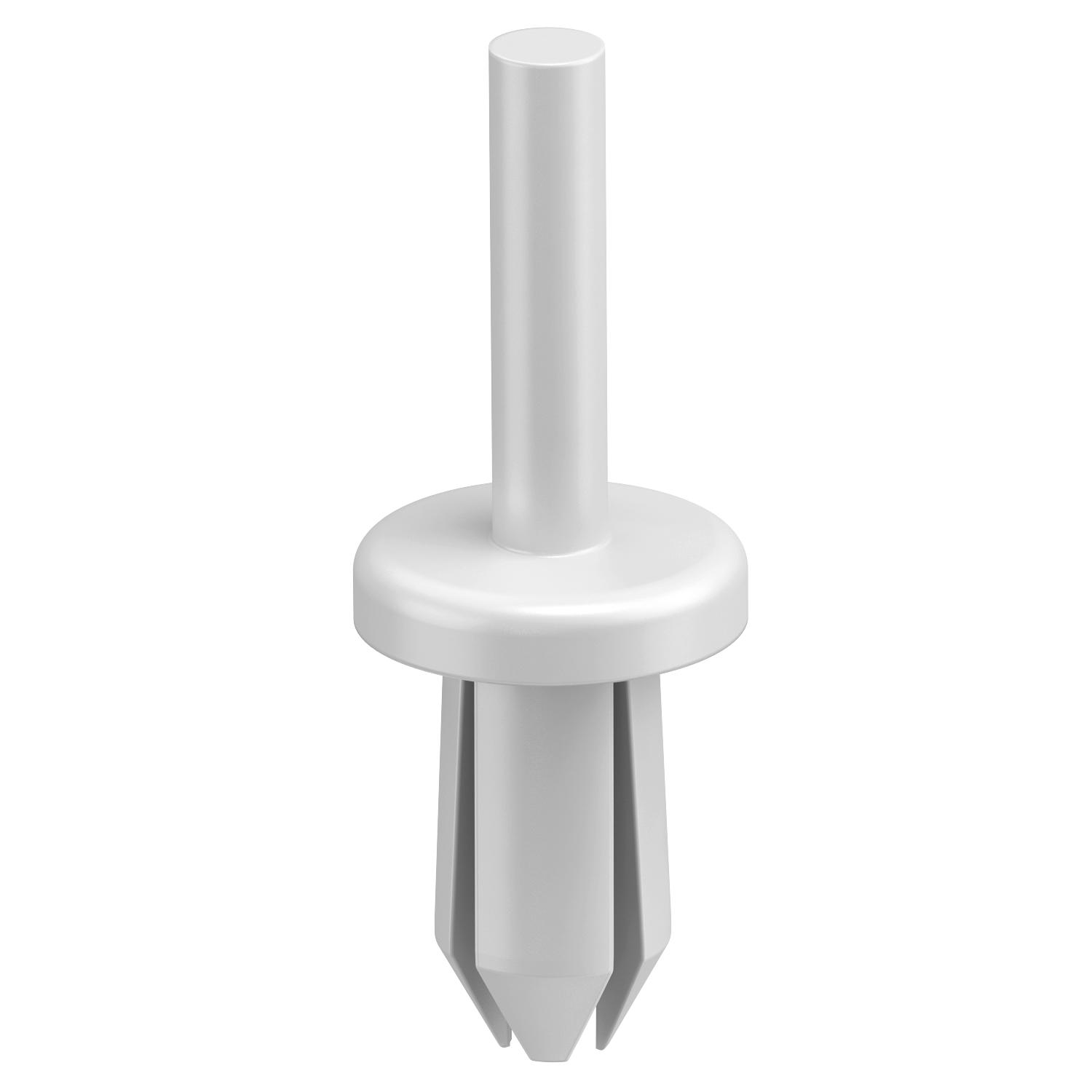

Body-bound rivet, KSN 22
Item no. 6178525 | EAN 4012196337057
- Product description
-
Product descriptionThe KNW2 riveting tool should be used for rapid mounting and for the optimum function. Dimension of the drill hole: 6.5 mm.
Total clamping strength: 2.8 – 6 mm
-
- Technical data
-
Technical data

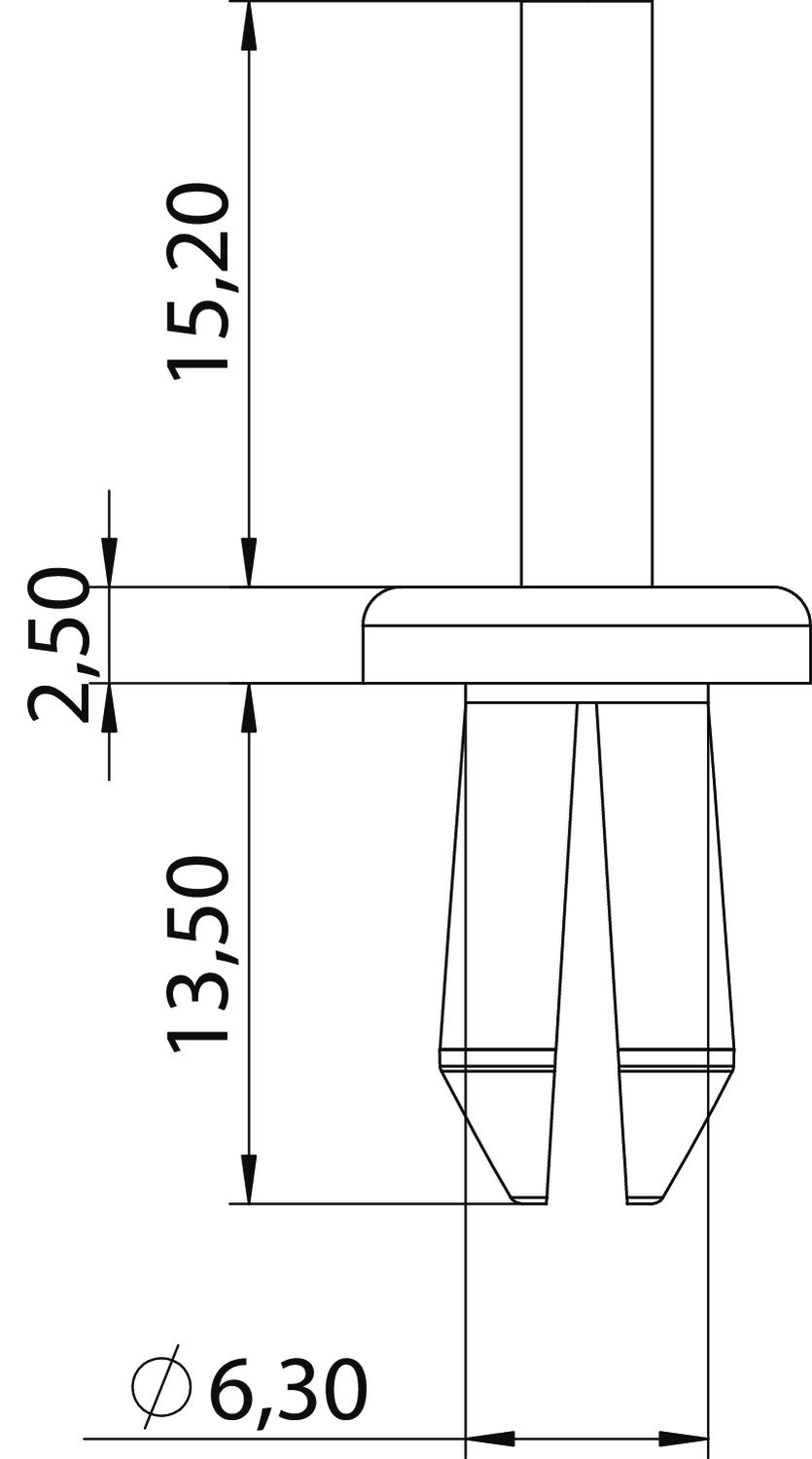

Bore hole diameter 6,5 mm Colour Light grey; RAL 7035 Dimension Ø6,3mm Halogen-free yes Material Polyamide Dimensions
Dimension a 6,3 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0036 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0036 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet KSN22 / 6178525 , 0.15MB , pdfBrochure Wiring trunking , 2.15MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity KSN22 / 6178525 , 0.10MB , pdfREACH Declaration of conformity KSN22 / 6178525 , 0.12MB , pdfRoHS Declaration of conformity KSN22 / 6178525 , 0.12MB , pdf
