Bolt tie FAZ II P A4
Item no. 3498966 | EAN 4012197507268
- Product description
-

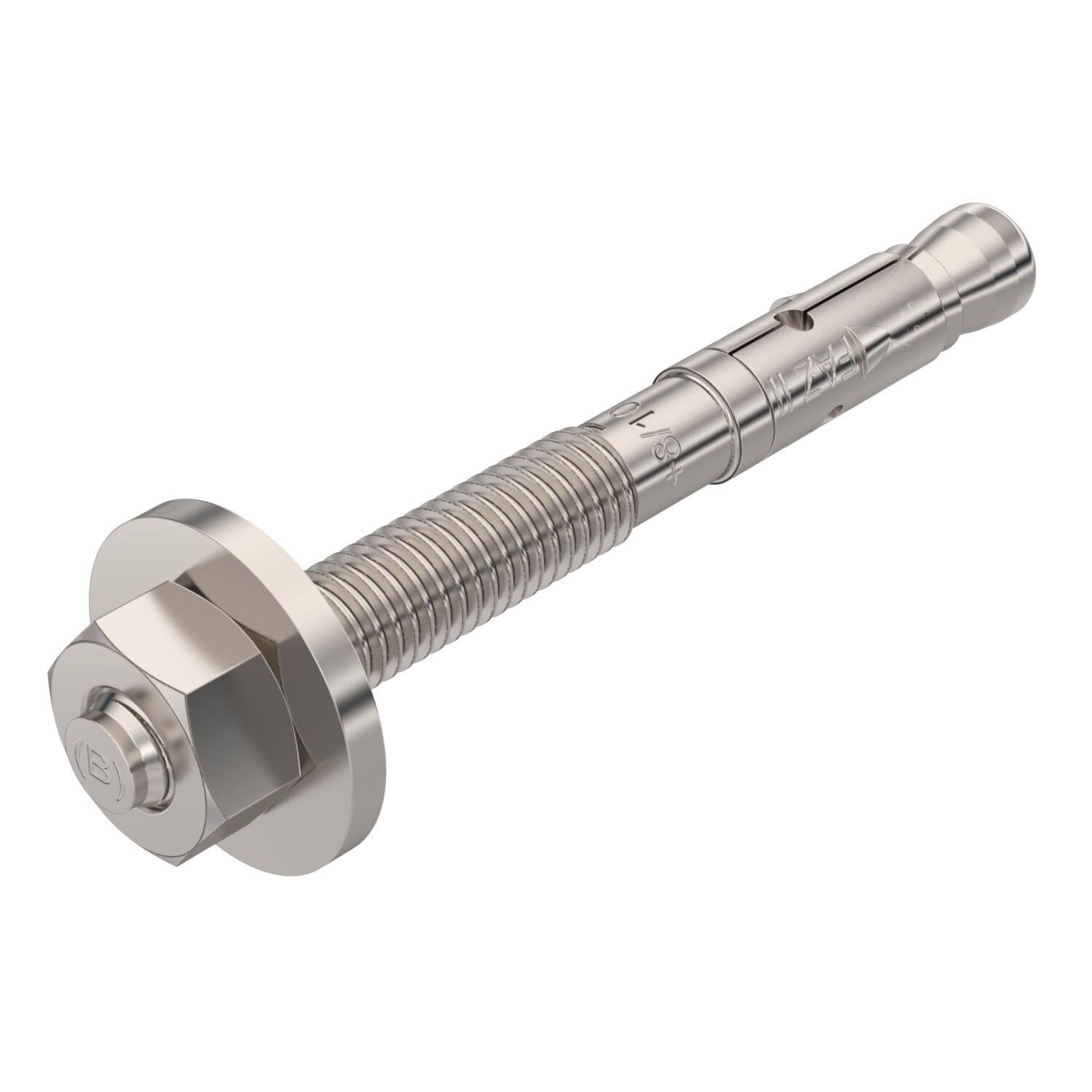

Product descriptionBolt tie FAZ II Plus for the anchoring of medium to heavy loads in cracked or uncracked concrete. Suitable for high loads with small edge and axial distances. For knocking in.
European Technical Assessment ETA-99/0520, including characteristic values under fire exposure to fire resistance R 120.
Proof of suitability in the event of seismic impacts, categories C1 and C2.
-
- Technical data
-
Technical data

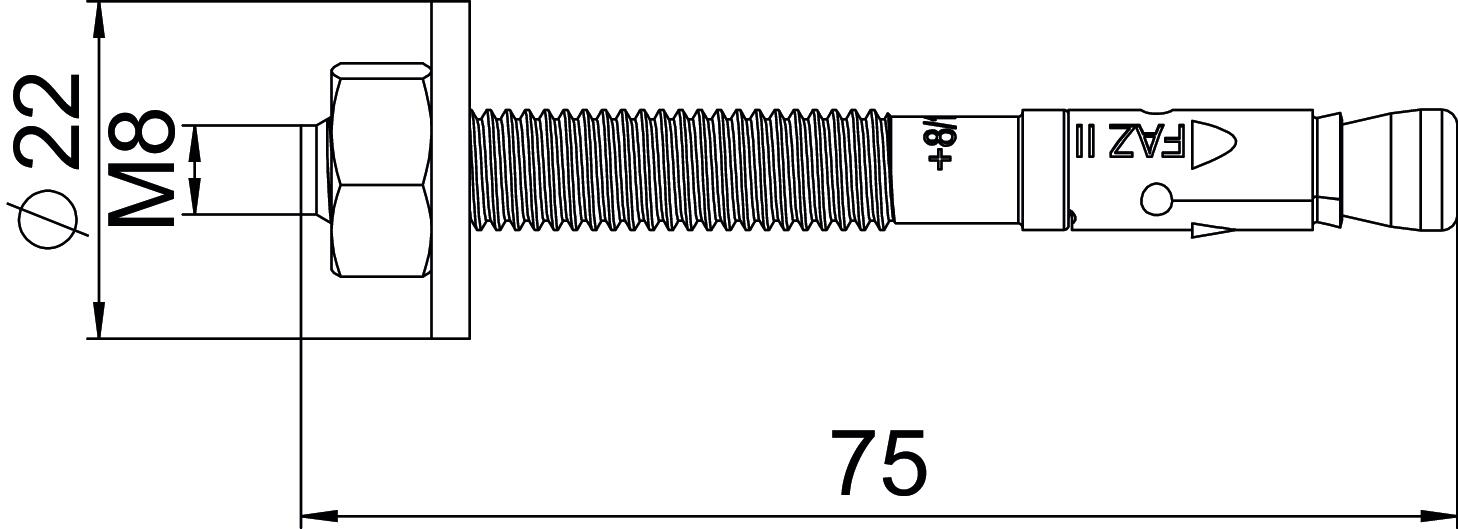

Anchor/nail/bolt version Spreading anchor Approvals available yes Clamping range, max. 20 mm Clamping range, min. 10 mm Colour stainless steel Dimension M8x75 Dimension L 75 mm Drill hole diameter, min. 8 mm Length 75 mm Material Stainless steel Thread M8 Thread length 38 mm Thread metric 8 Thread type Metric Version for For pushing in - All types
-
All types
- Downloads
-
Data sheet FAZIIPlus 8/10A4 / 3498966 , 0.16MB , pdfNo invitation to tender text is available for this product.
