Bolt tie FAZ II P G 148 | M16 | Steel
morepic-1 morepic-2

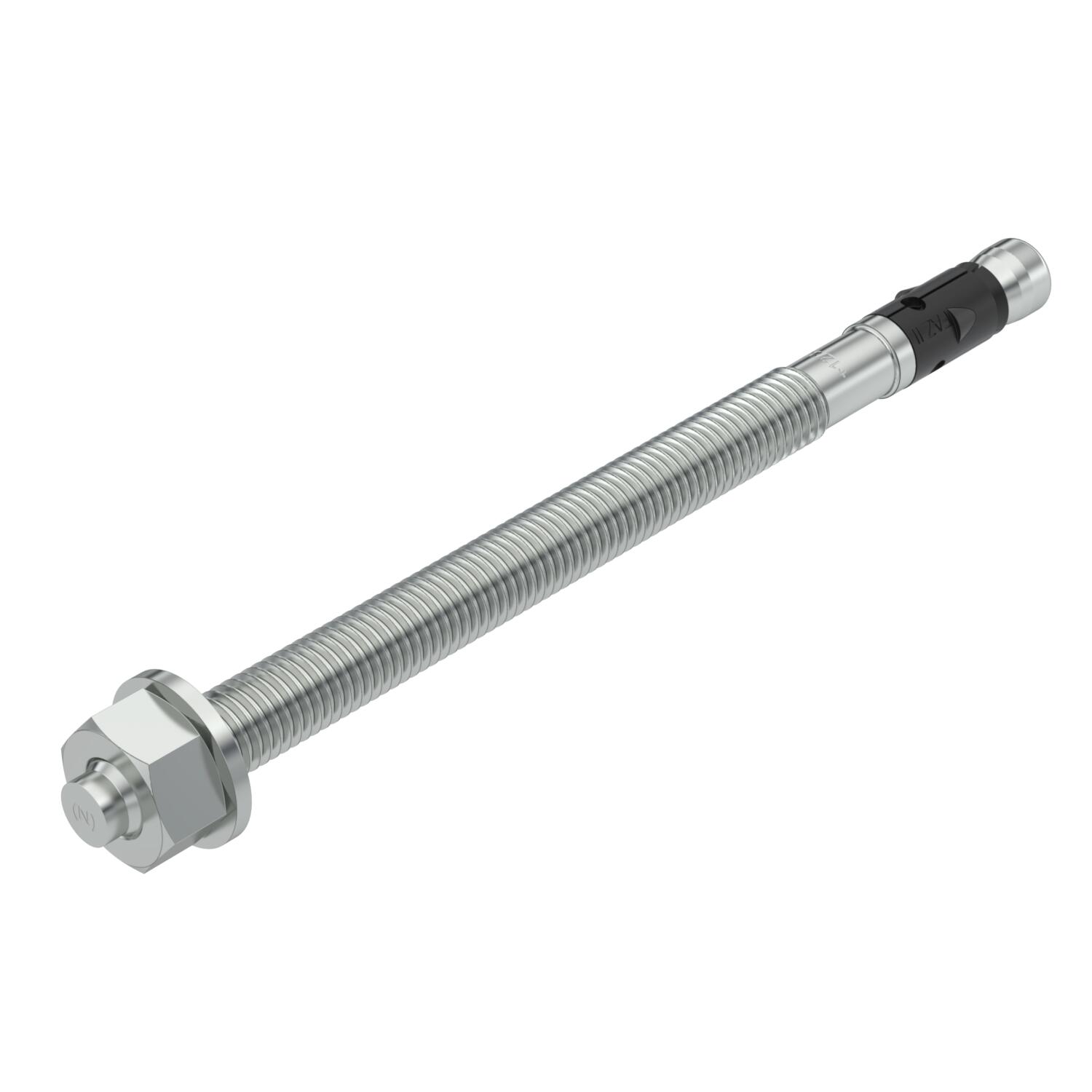

Bolt tie FAZ II P G

Item no. 3498950 | EAN 4012197507251

Product description
Product description
Bolt tie FAZ II Plus for the anchoring of medium to heavy loads in cracked or uncracked concrete. Suitable for high loads with small edge and axial distances. For knocking in.
European Technical Assessment ETA-99/0520, including characteristic values under fire exposure to fire resistance R 120.
Proof of suitability in the event of seismic impacts, categories C1 and C2.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Anchor/nail/bolt version Spreading anchor
Approvals available yes
Clamping range, max. 45 mm
Clamping range, min. 25 mm
Colour zinc
Dimension M16x148
Dimension L 148 mm
Drill hole diameter, min. 16 mm
Length 148 mm
Material Steel
Surface Electrogalvanized
Thread M16
Thread length 84 mm
Thread metric 16
Thread type Metric
Version for For pushing in
All types

All types

Types Length Thread Material Item no. Quantity SSU
FAZIIPlus 10/160 245 mm M10 Steel 3498922
1 piece
FAZIIPlus 12/20K 100 mm M12 Steel 3498930
1 piece
FAZIIPlus 12/20 120 mm M12 Steel 3498932
1 piece

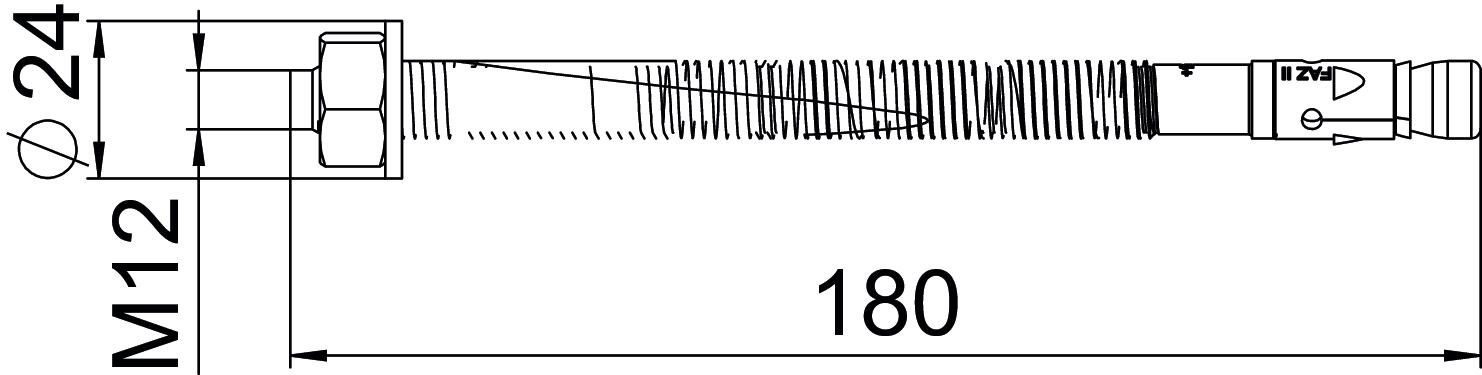

FAZIIPlus 12/80 180 mm M12 Steel 3498936
1 piece
FAZIIPlus 12/100 200 mm M12 Steel 3498938
1 piece
FAZIIPlus 12/160 260 mm M12 Steel 3498940
1 piece
FAZIIPlus 16/25 148 mm M16 Steel 3498950
1 piece
FAZIIPlus12/20A4 120 mm M12 Stainless steel 3498978
1 piece
FAZIIPlus8/10A5 75 mm M8 Stainless steel 3498984
1 piece
FAZIIPlus10/10A5 95 mm M10 Stainless steel 3498990
1 piece
FAZIIPlus12/10A5 104 mm M12 Stainless steel 3498996
1 piece
