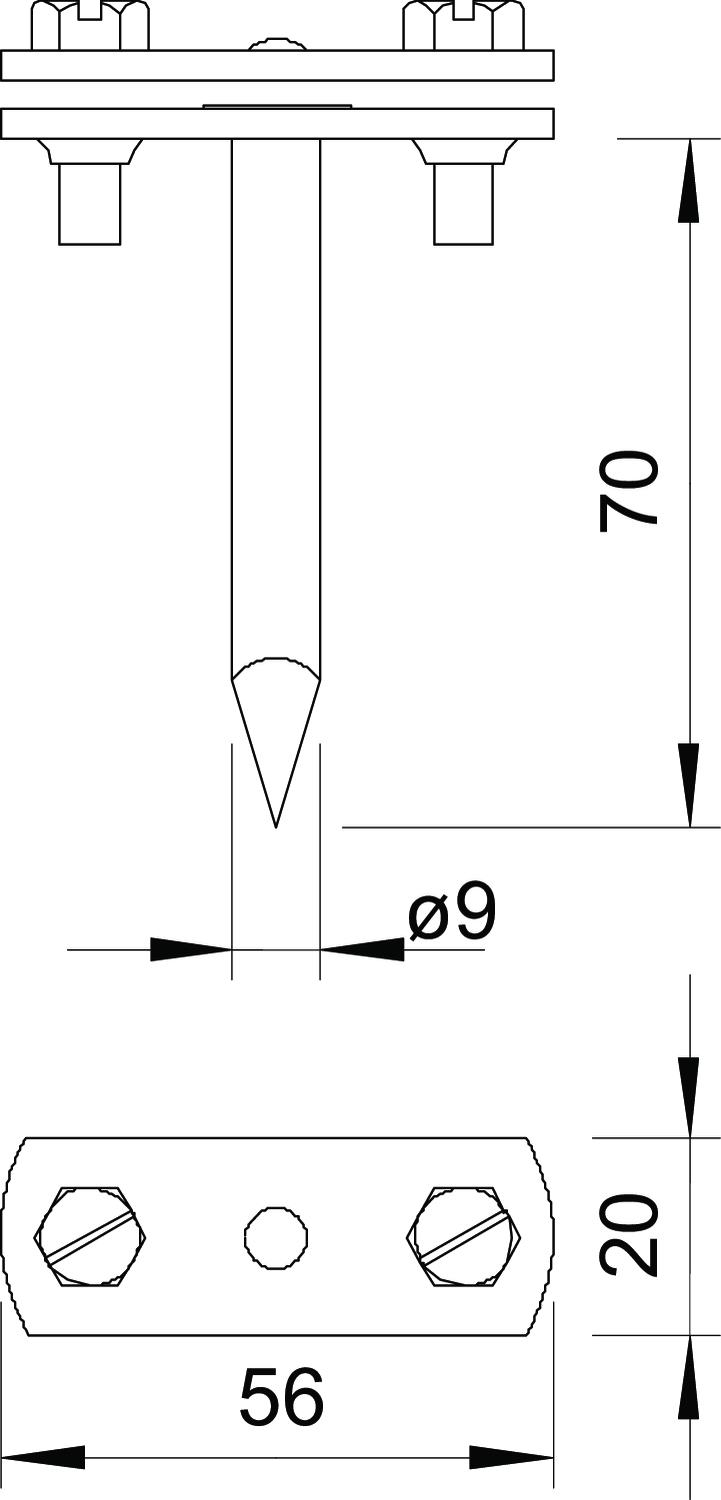

Cable bracket for flat conductors, with round pin
Item no. 5226570 | EAN 4012195410416
- Product description
-
Product description• With crossbar and 2 hexagonal bolts (VA)
• With loose round pin Ø 9 mm
-
- Technical data
-
Technical data
Cable dimensions 30 x 4 mm flat Conductor fastening type With screw clip Dimension 70mm Fit FL30 mm High voltage-resistant, insulated version no Holder fastening type With impact pin Material Steel Material of the base Steel Material of the crossbar Steel Material of the holder Steel Surface Hot-dip galvanised Use in Ex area yes Dimensions
Length 70 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,268 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,268 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 166 LS 70 / 5226570 , 0.15MB , pdfEU declaration of conformity 166 LS 70 / 5226570 , 0.06MB , pdfREACH Declaration of conformity 166 LS 70 / 5226570 , 0.12MB , pdfRoHS Declaration of conformity 166 LS 70 / 5226570 , 0.13MB , pdf
