Cable ladder LCIS 60, 3 m C30 FT 3000 | 400 | 1.5 | no

Cable ladder LCIS 60, 3 m C30 FT

Item no. 6209725 | EAN 4012196431755

Item no. / Types

Length	3000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Product description

Product description

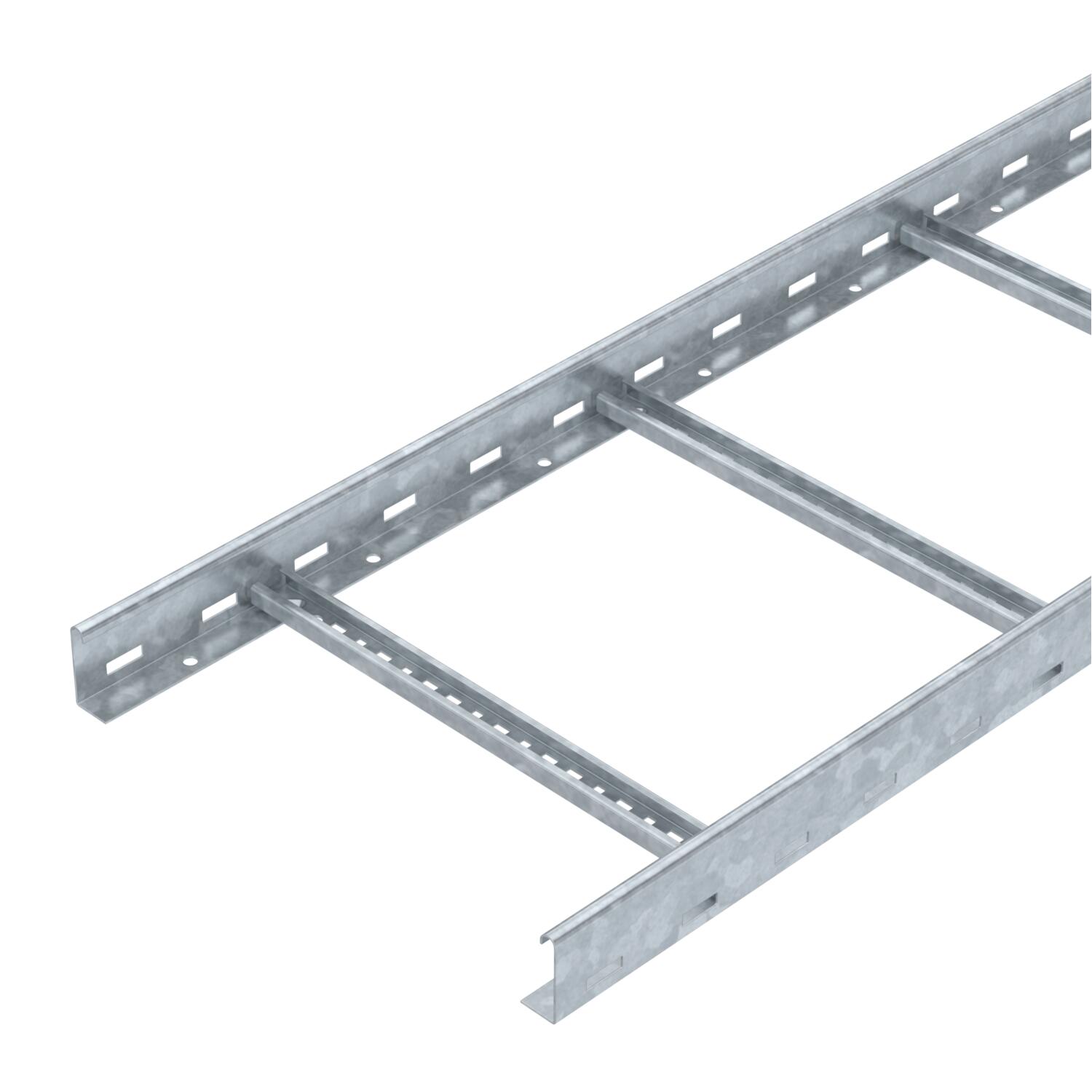

Cable ladder with a 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using hold-down clamps, type LKS 40. The slot dimension of the rung is 16.5 mm and the appropriate clamp clip is type BS-H....
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	7,4677 kg CO2e / 1 Meter
Colour	zinc
Dimension	60x400x3000
Dimension B	400 mm
Fastening of rung	Welded
Height	60 mm
Length	3000 mm
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rung slot dimension	17,00
Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Flat profile

Support spacing 1.5 m	3,3 kN/m
Support spacing 2.0 m	2 kN/m
Support spacing 2.5 m	1,3 kN/m
Support spacing 3.0 m	1 kN/m
Support spacing 3.5 m	0,78 kN/m
Support spacing 4.0 m	0,4 kN/m
Support spacing 4.5 m	0,3 kN/m
Support spacing 5.0 m	0,2 kN/m
Surface	Hot-dip galvanised
Usable cross-section	160 cm²
Usable cross-section	16000 mm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	400 mm

Technical data

Load diagram, cable ladder, type LCIS 60

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
LCIS 620 3 FT	3000 mm	200 mm	1.5 mm	no	6209721	m	3 m
LCIS 630 3 FT	3000 mm	300 mm	1.5 mm	no	6209723	m	3 m
LCIS 640 3 FT	3000 mm	400 mm	1.5 mm	no	6209725	m	3 m
LCIS 650 3 FT	3000 mm	500 mm	1.5 mm	no	6209727	m	3 m
LCIS 660 3 FT	3000 mm	600 mm	1.5 mm	no	6209729	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle FT	DRL 400 FT	6051413	m	3 m
Straight connector FT	LVG 60 FT	6208843	piece	10 piece
Adjustable connector FT	LGVG 60 FT	6208944	piece	10 piece
Multifunctional connector FT	LMFV 640 FT	6225734	piece	1 piece
90° bend 60 FT	LB 90 640 R3 FT	6225066	piece	1 piece
T piece 60 FT	LT 640 R3 FT	6225234	piece	1 piece

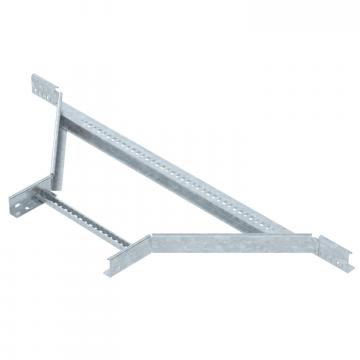

Add-on tee 60 FT	LAA 640 R3 FT	6225874	piece	1 piece
Adjustable bend element 60 FT	LGBE 640 FT	6225474	piece	1 piece
Protective cap 60	SKH 60 OR	6222537	Pair	40 Pair
Support angle	LAW FT	6221513	piece	10 piece
Connector FT	LAS 60 FT	6221378	piece	10 piece
Barrier strip 45 DD	TSG 45 DD	6062321	m	3 m
Corner plate DD	LEB 25 DD	6221216	piece	1 piece
Corner plate DD	LEB 50 DD	6221259	piece	1 piece
Support plate	LALB 40 FT	6221874	piece	1 piece
Drop-out plate FT	LAB 40 FT	6220452	piece	1 piece
Insert plate DD	ELB-L 40 DD	6103360	m	3 m
