Cable ladder LCIS 60, 6 m C30 A4 6000 | 500 | 1.5 | no

Cable ladder LCIS 60, 6 m C30 A4

Item no. 6207208 | EAN 4012196431991

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Product description

Product description

Cable ladder with 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Colour	stainless steel
Dimension	60x500x6000
Fastening of rung	Welded
Maintain electrical functions	no
Material	Stainless steel 1.4571
Rail thickness	1,5 mm
Rung distance	300 mm
Rustproof steel, pickled	yes

Side perforation	yes
Side rail version	Flat profile
Surface	Bright, treated
Usable cross-section	200 cm²
Usable cross-section	20000 mm²
Version of the rungs	Profile perforated
Wide-span version	no

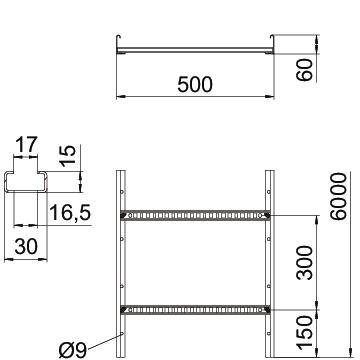

Dimensions

Dimension B	500 mm
Height	60 mm
Length	6000 mm

Rung slot dimension	16,50
Width	500 mm

Loads

Support spacing 1.5 m	3,3 kN/m
Support spacing 2.0 m	2 kN/m
Support spacing 2.5 m	1,3 kN/m
Support spacing 3.0 m	1 kN/m

Support spacing 3.5 m	0,78 kN/m
Support spacing 4.0 m	0,4 kN/m
Support spacing 4.5 m	0,3 kN/m
Support spacing 5.0 m	0,2 kN/m

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	17,1374 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	17,1374 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

Load diagram, cable ladder, type LCIS 60

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
LCIS 620 6 A4	6000 mm	200 mm	1.5 mm	no	6207202	m	6 m
LCIS 630 6 A4	6000 mm	300 mm	1.5 mm	no	6207204	m	6 m
LCIS 640 6 A4	6000 mm	400 mm	1.5 mm	no	6207206	m	6 m
LCIS 650 6 A4	6000 mm	500 mm	1.5 mm	no	6207208	m	6 m
LCIS 660 6 A4	6000 mm	600 mm	1.5 mm	no	6207210	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Straight and angle connector A4	LWVG 60 A4	6208891	piece	10 piece
Adjustable connector A4	LGVG 60 A4	6208932	piece	10 piece
90° bend 60 A4	LB 90 650 R3 A4	6225108	piece	1 piece
T piece 60 A4	LT 650 R3 A4	6225276	piece	1 piece
Adjustable bend element 60 A4	LGBE 650 A4	6225486	piece	1 piece
Protective cap 60	SKH 60 OR	6222537	Pair	40 Pair
