Cable ladder LG 60, 3 m VS FS 3000 | 300 | 1.5 | yes | Steel | Strip galvanized

Cable ladder LG 60, 3 m VS FS

Item no. 6208541 | EAN 4012195064053

Item no. / Types

Length	3000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions

Material	Steel

Surface	Strip galvanized

Product description

Product description

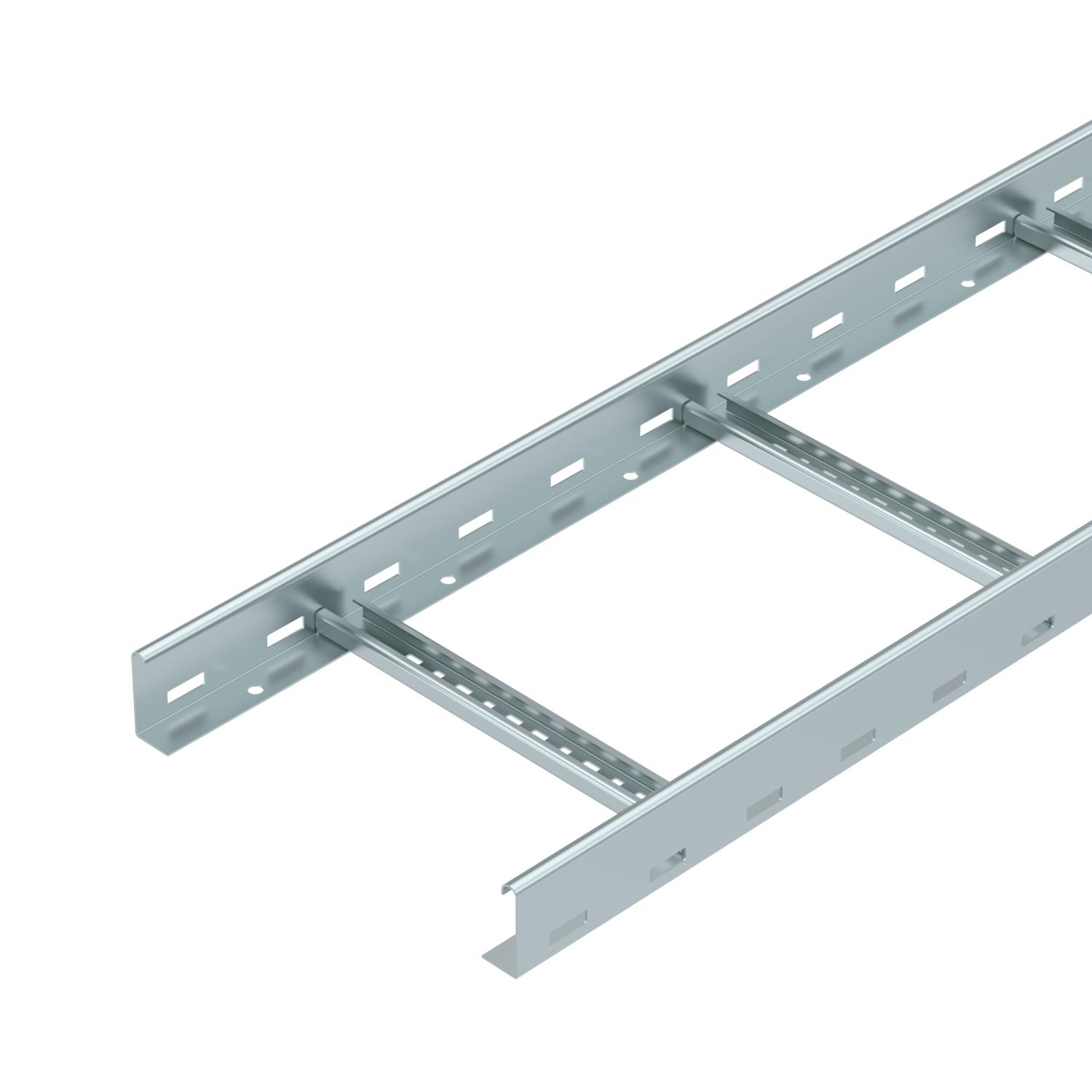

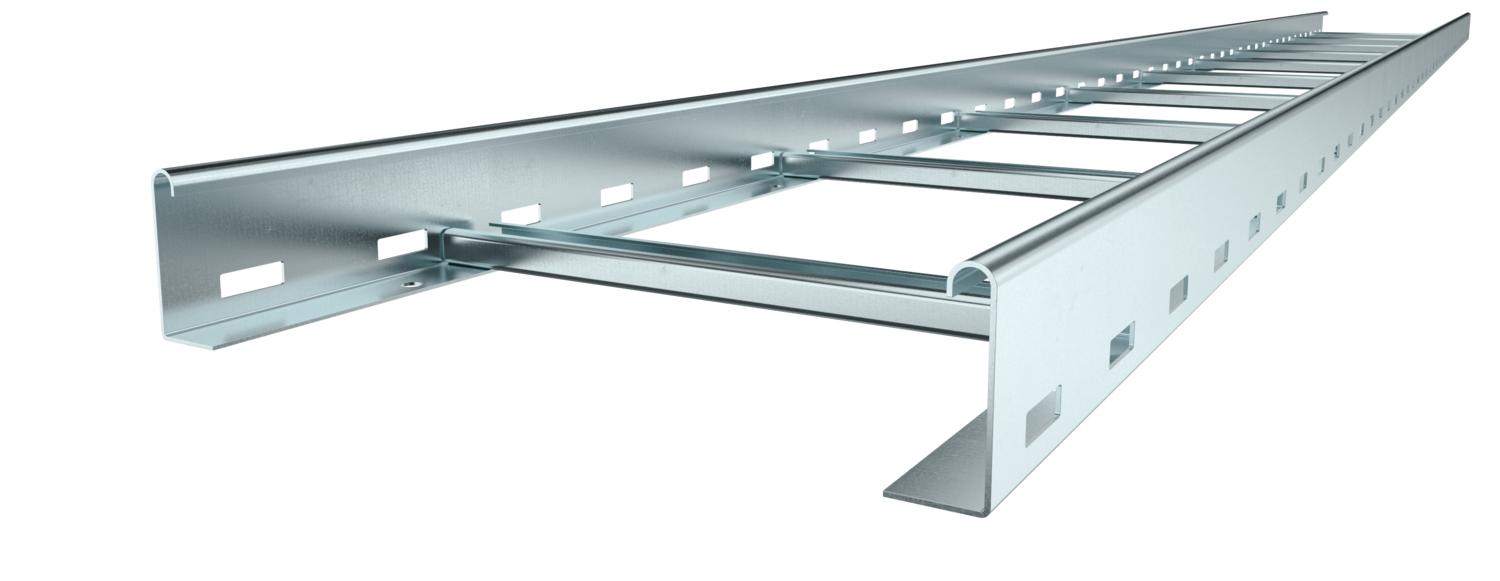

Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Additional widths are available on request.

The cable ladder is shipped folded up.

Cables can be mounted with the matching clamp clip, type 2056.

The cable ladders in the widths 200 mm to 400 mm are also approved for vertical mounting as a vertical ladder in systems that guarantee the maintenance of electrical functionality according to DIN 4102 Part 12. Cables can be mounted with the clamp clip approved for maintenance of electrical function, type 2056 M.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	6,9591 kg CO2e / 1 Meter
Colour	zinc

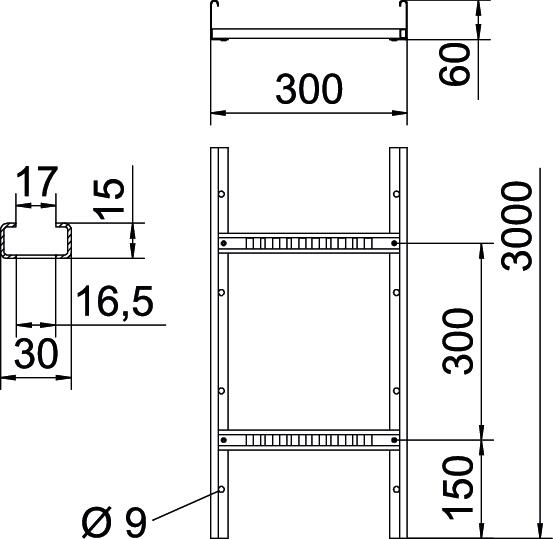

Dimension	60x300x3000
Dimension	60x300x3000
Dimension B	300 mm
Fastening of rung	Blind riveted
Fire protection	Maintenance of electrical function of standard support structure
Height	60 mm
Length	3000 mm
Maintain electrical functions	yes
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rung slot dimension	16,50
Rustproof steel, pickled	no
Side perforation	yes

Side rail version	Flat profile
Support spacing 1.5 m	3,1 kN/m
Support spacing 2.0 m	2,25 kN/m
Support spacing 2.5 m	1,5 kN/m
Support spacing 3.0 m	1,1 kN/m
Support spacing 3.5 m	0,75 kN/m
Support spacing 4.0 m	0,45 kN/m
Support spacing 4.5 m	0,3 kN/m
Support spacing 5.0 m	0,15 kN/m
Surface	Strip galvanized
Usable cross-section	14800 mm²
Usable cross-section	148 cm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	300 mm

Technical data

Load diagram, cable ladder, type LG 60 VS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 620 VS 3 FS	3000 mm	200 mm	1.5 mm	yes	Steel	Strip galvanized	6208538	m	3 m
LG 630 VS 3 FS	3000 mm	300 mm	1.5 mm	yes	Steel	Strip galvanized	6208541	m	3 m
LG 640 VS 3 FS	3000 mm	400 mm	1.5 mm	yes	Steel	Strip galvanized	6208544	m	3 m
LG 650 VS 3 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6208547	m	3 m
LG 660 VS 3 FS	3000 mm	600 mm	1.5 mm	no	Steel	Strip galvanized	6208550	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle FS	DRL 300 FS	6052304	m	3 m
Straight connector FS	LVG 60 FS	6208840	piece	10 piece
Straight and angle connector FS	LWVG 60 FS	6208895	piece	10 piece
Adjustable connector FS	LGVG 60 FS	6208941	piece	10 piece
Multifunctional connector FS	LMFV 630 FS	6225712	piece	1 piece
90° bend 60 FS	LB 90 630 R3 FS	6225044	piece	1 piece
T piece 60 FS	LT 630 R3 FS	6225212	piece	1 piece
Add-on tee 60 FS	LAA 630 R3 FS	6225852	piece	1 piece
Adjustable bend element 60 FS	LGBE 630 FS	6225452	piece	1 piece
Protective cap 60	SKH 60 OR	6222537	Pair	40 Pair
Connector FS	LAS 60 FS	6221351	piece	10 piece
Separating retainer 45 FS	TSG 45 FS	6062033	m	3 m
Corner plate FS	LEB 25 FS	6221203	piece	1 piece
Corner plate FS	LEB 50 FS	6221246	piece	1 piece
Insert plate FS	ELB-L 30 FS	6103251	m	3 m
