Centre suspension mesh cable tray FS
Item no. 6015402 | EAN 4012196940936
- Product description
-

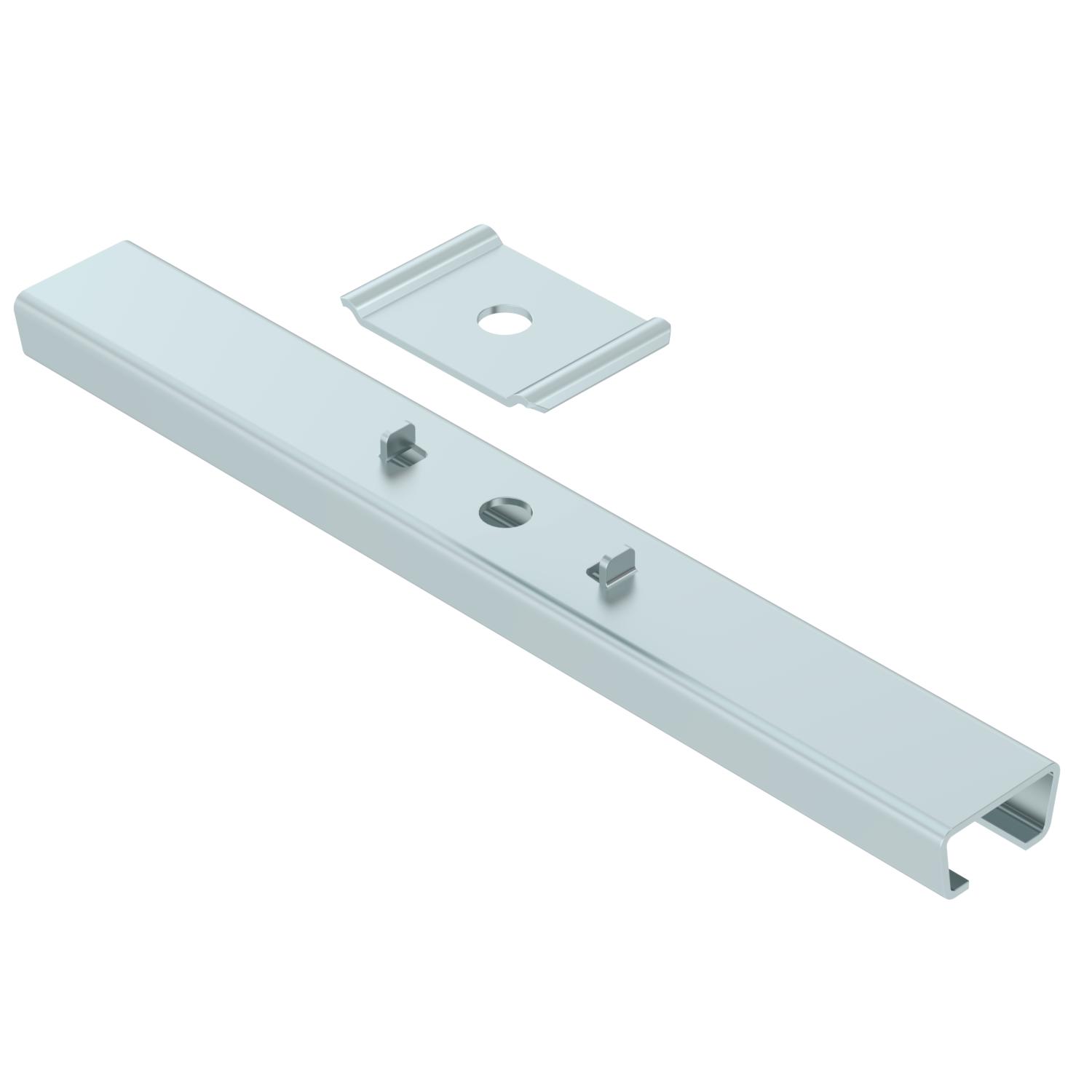

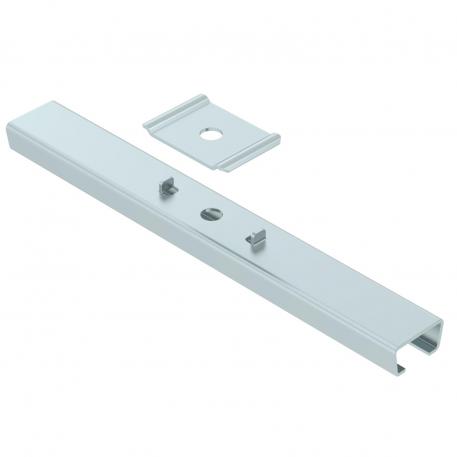

Product descriptionCentre suspension including clamping piece for mesh cable tray suspensions.
-
- Technical data
-
Technical data
Adjustable no Colour zinc Dimension B270mm for width max. 270 mm for width min. 270 Hole diameter 11 mm Material Steel Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Suitable for metric threaded rod 10 Surface Strip galvanised Version for Suspended Dimensions

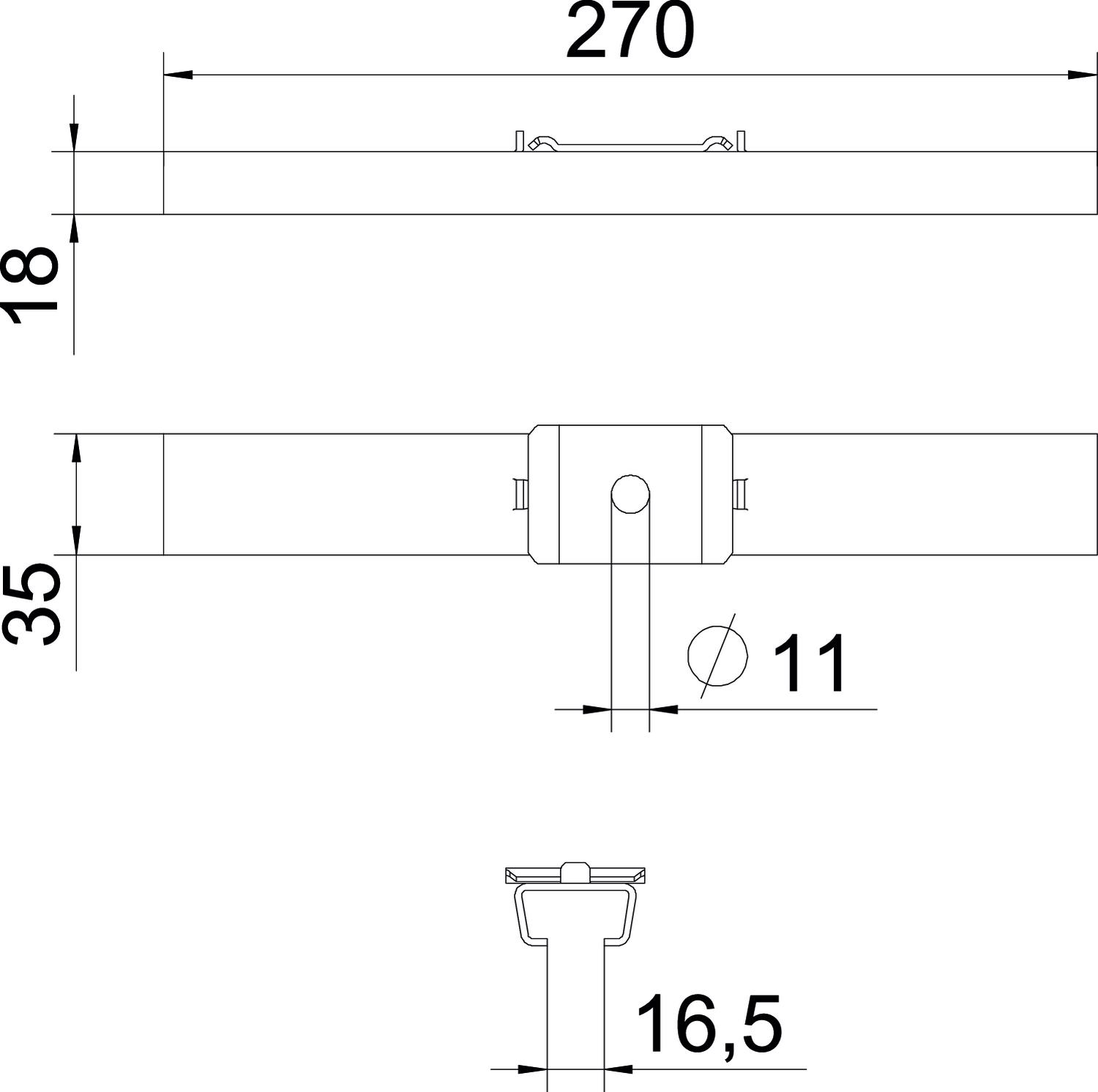

Dimension B 270 mm Height 18 mm Length 35 mm Width 270 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,8418 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,8418 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
- Downloads
-
Data sheet GMS 270 FS / 6015402 , 0.20MB , pdfEU declaration of conformity GMS 270 FS / 6015402 , 0.10MB , pdfREACH Declaration of conformity GMS 270 FS / 6015402 , 0.12MB , pdfRoHS Declaration of conformity GMS 270 FS / 6015402 , 0.13MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
