Closed FireBox T160, empty 176x135x67 | | IP66 | Pastel orange; RAL 2003

Closed FireBox T160, empty

Item no. 7205782 | EAN 4012196820245

Item no. / Types

Clear internal dimensions

Protection rating	IP66

Colour	Pastel orange; RAL 2003

Product description

Product description

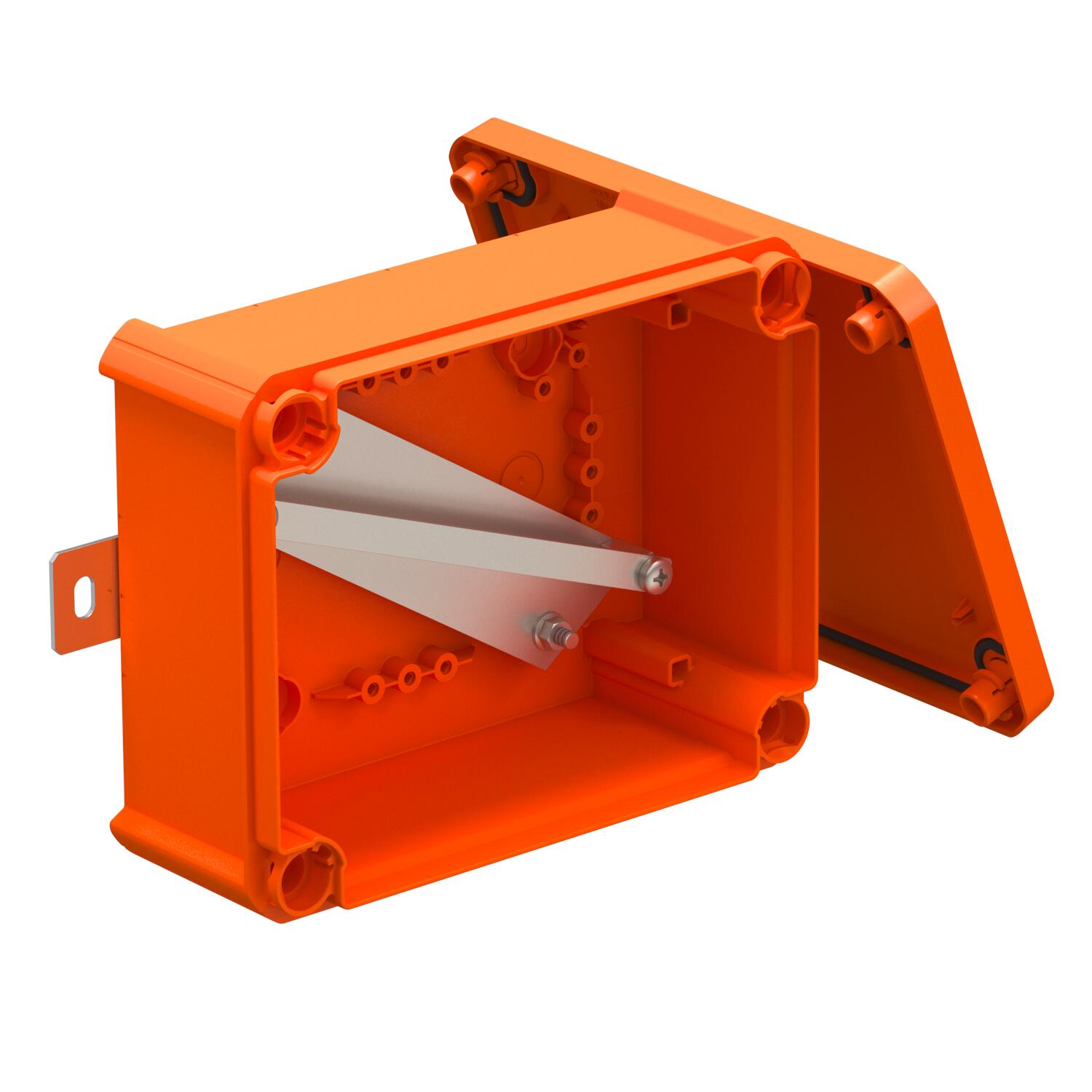

Unequipped, closed connection or junction box for free termination with ceramic terminals and cable glands. Dimension A states the available support rail length for the wiring terminals. Sufficiently large wiring compartment through diagonally arranged support rail. Fastening on easily accessible external flaps made of stainless steel. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90.

Technical data

Technical data

Colour	Pastel orange; RAL 2003
Cover	Not transparent
Cover fastening	Screwed
Dimension	190x150x77
Entry from rear	no
Equipment	Support rail
Halogen-free	yes
Maintain electrical functions	E 90

Material	Polypropylene
Nominal cross-section, max.	10 mm²
Nominal cross-section, min.	0,5 mm²
Protection rating	IP66
Sealable	no
with lid	yes
With screening	no

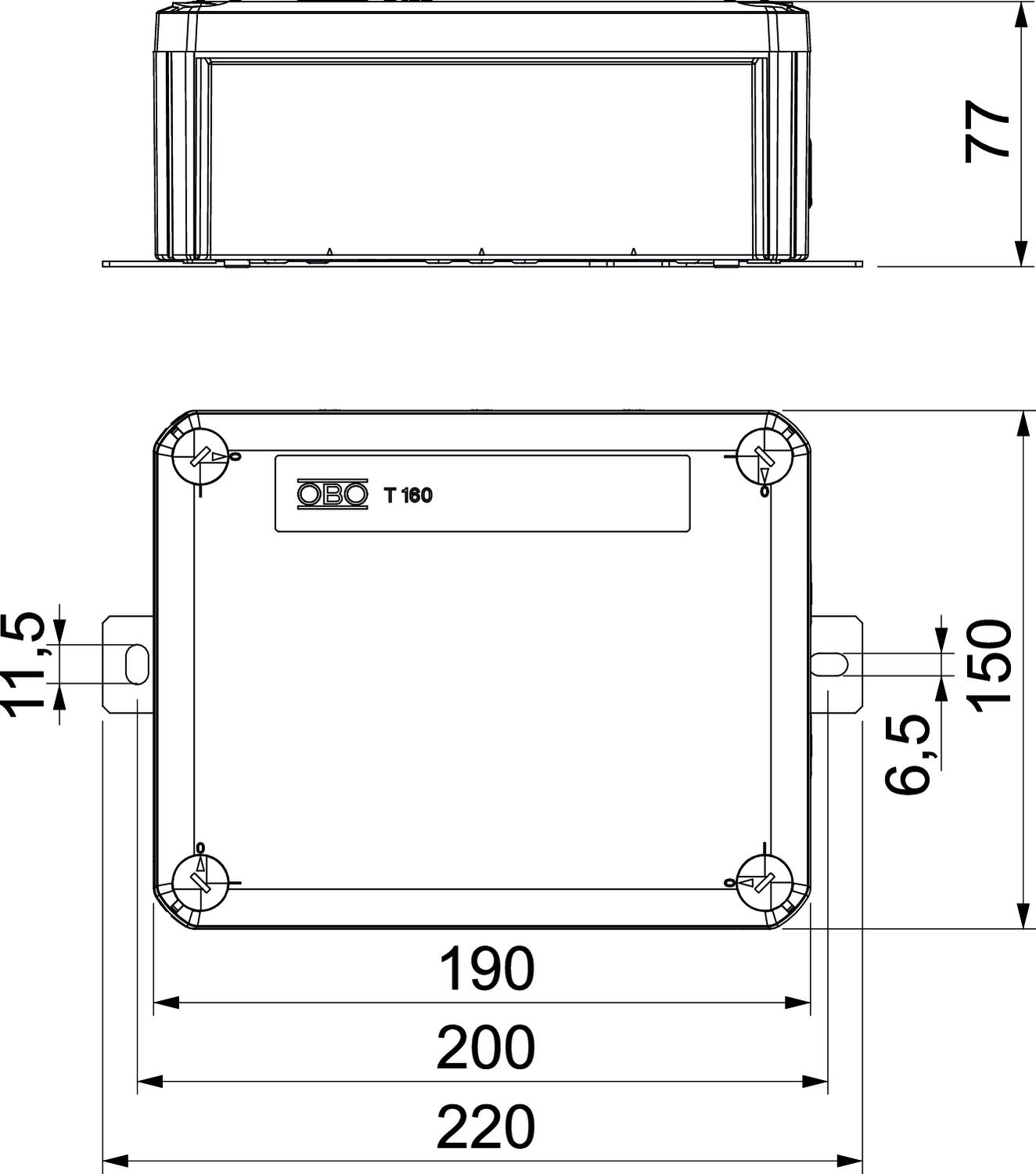

Dimensions

Clear internal dimensions	176x135x67 mm
Dimension A	130 mm
Dimension B	150 mm
Dimension H	77 mm
Dimension L	190 mm

Dimension L1	200 mm
Dimension L2	220 mm
Height	77 mm
Length	190 mm
Width	150 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	3,4338 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	3,4338 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Clear internal dimensions	Protection rating	Colour	Item no.	Quantity	SSU
T100E 0VA	136x102x57 mm	IP66	Pastel orange; RAL 2003	7205780	piece	1 piece
T160E 0VA	176x135x67 mm	IP66	Pastel orange; RAL 2003	7205782	piece	1 piece
T250E 0VA	225x173x86 mm	IP66	Pastel orange; RAL 2003	7205784	piece	1 piece
T350E 0VA	267x182x110 mm	IP66	Pastel orange; RAL 2003	7205786	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Ceramic terminal, single	TK 10	7205704	piece	5 piece
Ceramic terminal, double	TK 10-2	7205705	piece	5 piece
Fuse holder for FireBox T series	TE-FH 520	7205570	piece	1 piece
Cable gland with locknut as a set	V-TEC VM16+ OR	7205657	piece	10 piece
Cable gland with locknut as a set	V-TEC VM20+ OR	7205660	piece	10 piece
Cable gland with locknut as a set	V-TEC VM25+ OR	7205663	piece	10 piece
Cable gland with locknut as a set	V-TEC VM32+ OR	7205666	piece	10 piece
