Cone cable gland, metric thread, light grey
Item no. 2035359 | EAN 4012195467410
- Product description
-
Product descriptionStandard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring with metric connection thread to IEC 423.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension M32 explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant yes Material Polystyrene Nominal thread size 32 Product series V-TEC Protection rating IP65 ROHS-conformant yes Sealing area D, max. 25 mm Sealing area D, min. 18 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread M32 x 1,5 Thread length 11 mm Thread type Metric Type of seal Sealing ring Version for Straight WAF 1 42 mm WAF 2 40 mm With locknut no Dimensions

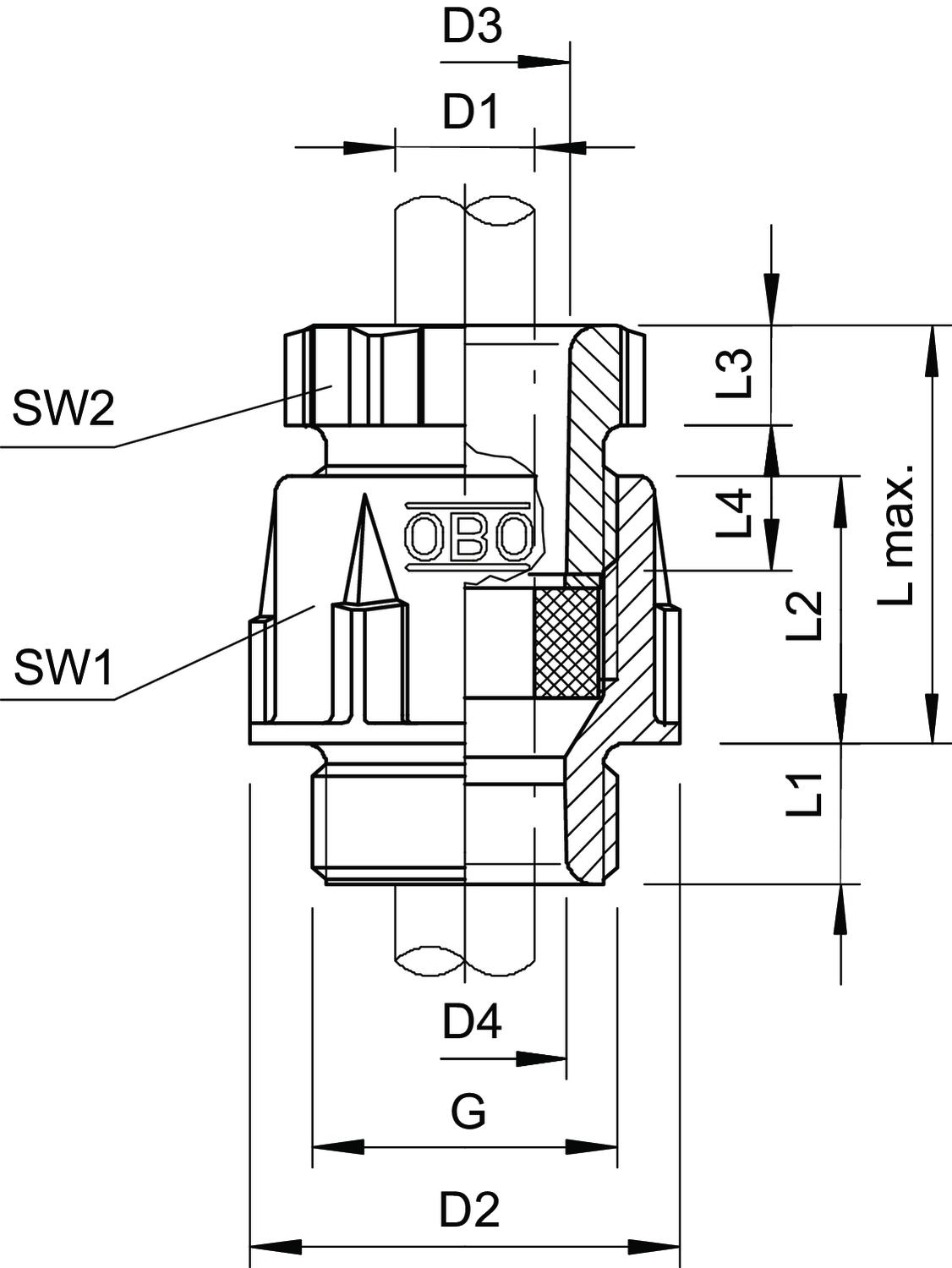

Dimension D1 25 mm Dimension D2 47,5 mm Dimension D3 30,3 mm Dimension D4 26 mm Dimension G M32x1,5 mm Dimension L max. 42 mm Dimension L1 11 mm Dimension L2 20,5 mm Dimension L3 8 mm Dimension L4 18 mm Height 50,5 mm Length 47,5 mm Width 47,5 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1419 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1419 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 106 M 32 PS / 2035359 , 0.21MB , pdfEU declaration of conformity 106 M 32 PS / 2035359 , 0.10MB , pdfREACH Declaration of conformity 106 M 32 PS / 2035359 , 0.12MB , pdfRoHS Declaration of conformity 106 M 32 PS / 2035359 , 0.12MB , pdf
