Cone cable gland, PG thread, light grey
Item no. 2036118 | EAN 4012195172277
- Product description
-
Product descriptionStandard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension PG11 explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Material Polystyrene Nominal thread size 11 Protection rating IP65 Sealing area D, max. 10 mm Sealing area D, min. 5,5 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 11 Thread length 8 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 1 22 mm WAF 2 19 mm With locknut no Dimensions

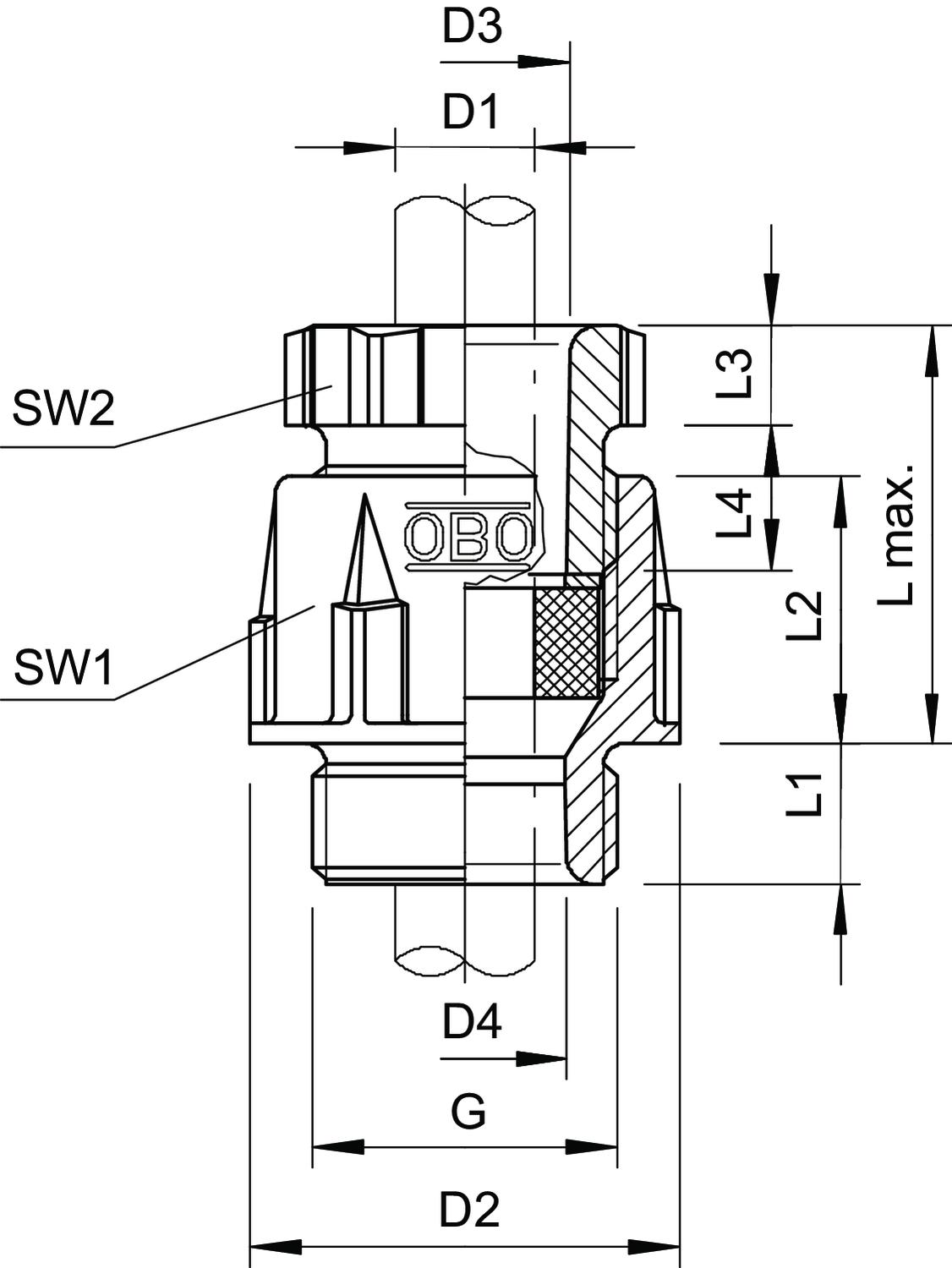

Dimension D1 9 mm Dimension D2 25 mm Dimension D3 13 mm Dimension D4 13 mm Dimension G Pg11 mm Dimension L max. 27 mm Dimension L1 8 mm Dimension L2 15 mm Dimension L3 5 mm Dimension L4 10 mm Height 33 mm Length 25 mm Width 25 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0299 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0299 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
