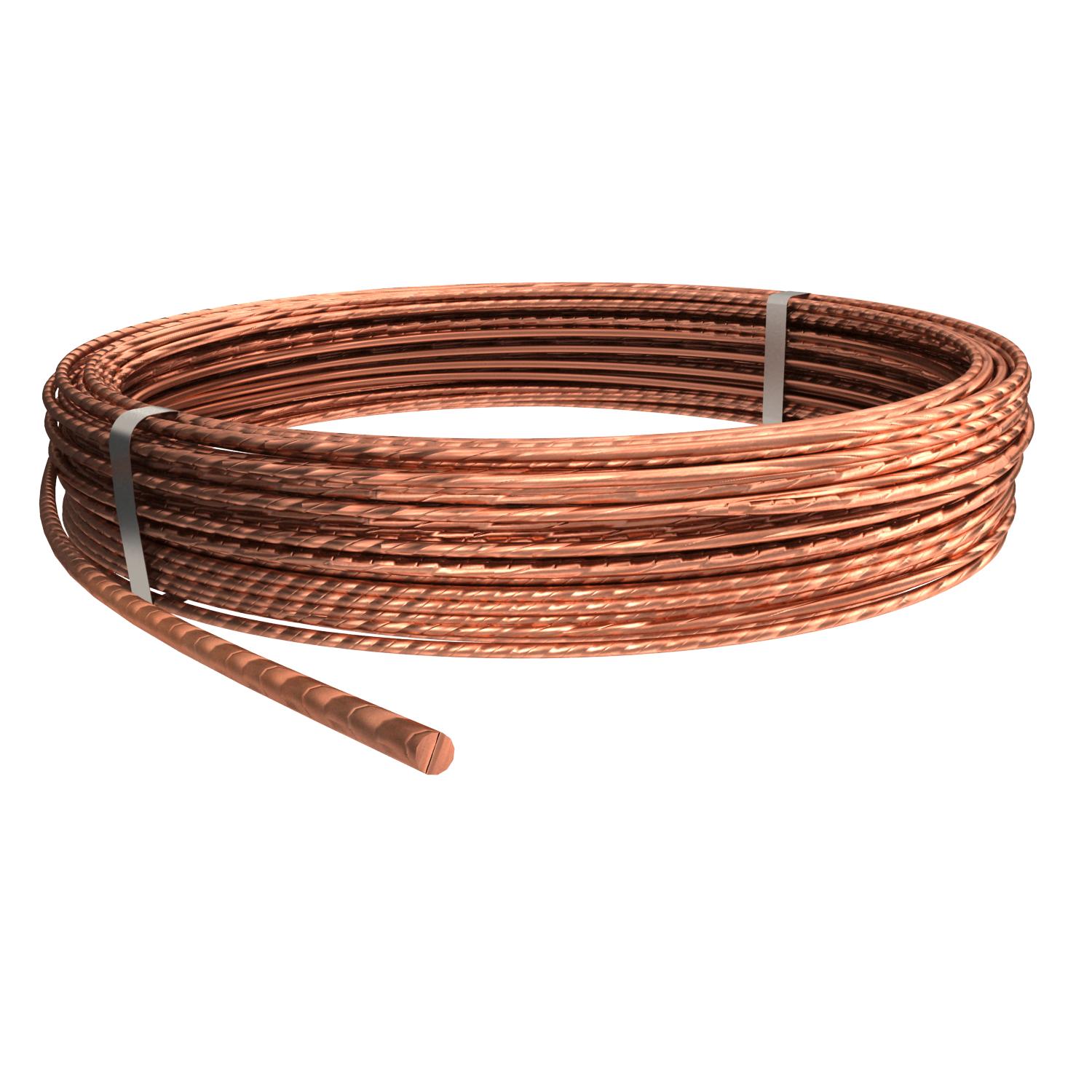

Copper cable
Item no. 5021652 | EAN 4012196033768
- Product description
-
Product description• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
- Technical data
-
Technical data

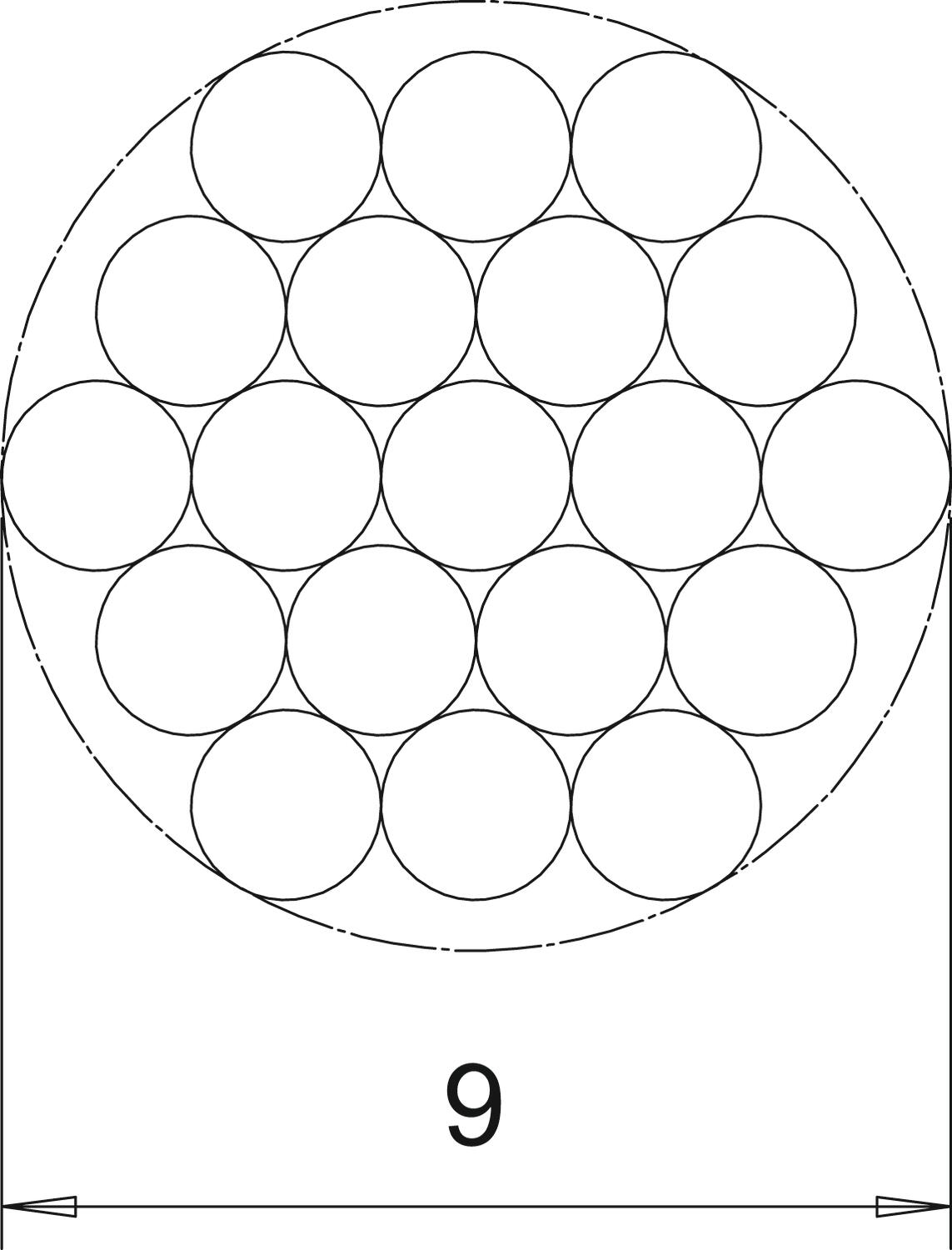

Colour Copper Cross-section 50 mm² Diameter 9 mm Diameter of the individual wires 1,8 mm Dimension 19x1,8mm Material Copper Material jacket Without Nomal ring (approx. kg) 45 Nomal ring (approx. m) 100 Number of individual wires 19 Dimensions
Dimension D 9 mm Length 100000 mm - All types
- Downloads
-
Data sheet S 9-CU / 5021652 , 0.20MB , pdfEU declaration of conformity S 9-CU / 5021652 , 0.06MB , pdfREACH Declaration of conformity S 9-CU / 5021652 , 0.12MB , pdfRoHS Declaration of conformity S 9-CU / 5021652 , 0.13MB , pdf
