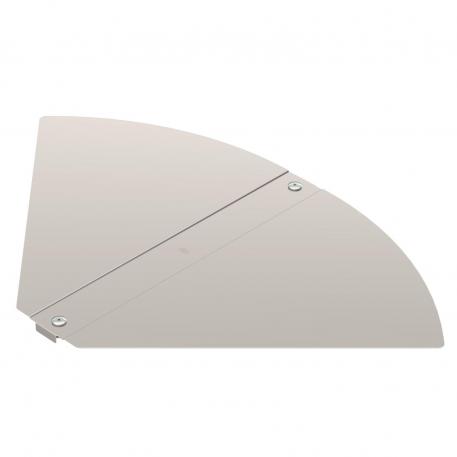

Cover, angle-adjustable bend A2
Item no. 6037568 | EAN 4012197407834
- Product description
-
Product descriptionCover for angle-adjustable bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash locks and through attachment of the section cover. Suitable for all side heights.
-
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Horizontal Colour stainless steel Dimension B500mm Fastening type Sash lock Hinged no Maintain electrical functions no Material Stainless steel 1.4301 Number of turn buckles 2 St. Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated Dimensions
Dimension B 500 mm Width 500 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 19,2709 kg CO2e / 1 Piece CO₂ Footprint (GWP) 19,2709 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet RBD W 500 A2 / 6037568 , 0.18MB , pdfEU declaration of conformity RBD W 500 A2 / 6037568 , 0.11MB , pdfUK Declaration of Conformity RBD W 500 A2 / 6037568 , 0.09MB , pdfREACH Declaration of conformity RBD W 500 A2 / 6037568 , 0.12MB , pdfRoHS Declaration of conformity RBD W 500 A2 / 6037568 , 0.13MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions Screwable cable trays with fittings for screwing and clamping , 5.98MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
