Cover for 90° bend A2
Item no. 6226056 | EAN 4012196534838
- Product description
-
Product descriptionCover with turn buckles for covering 90° cable ladder bends with welded rungs.
-
- Technical data
-
Technical data

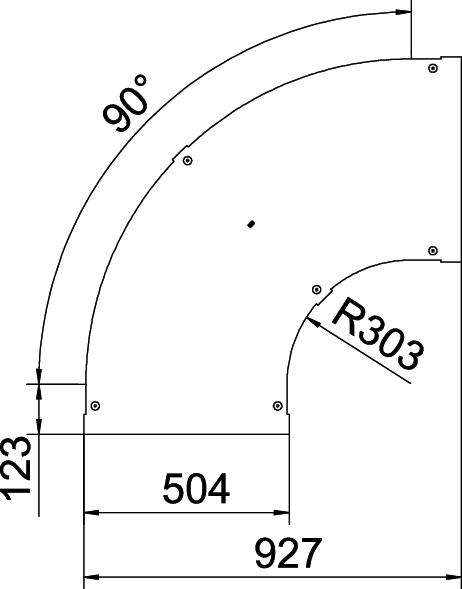

Bend (angle) 90° Change of direction Horizontal Colour stainless steel Dimension B500 Fastening type Sash lock Hinged no Maintain electrical functions no Material Stainless steel 1.4301 Plate thickness 1,25 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for mesh cable tray no Surface Bright, treated Dimensions
Dimension B 500 mm Width 500 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 54,2409 kg CO2e / 1 Piece CO₂ Footprint (GWP) 54,2409 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet LBD 90 500 R3 A2 / 6226056 , 0.18MB , pdfEU declaration of conformity LBD 90 500 R3 A2 / 6226056 , 0.10MB , pdfUK Declaration of Conformity LBD 90 500 R3 A2 / 6226056 , 0.09MB , pdfREACH Declaration of conformity LBD 90 500 R3 A2 / 6226056 , 0.12MB , pdfRoHS Declaration of conformity LBD 90 500 R3 A2 / 6226056 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
