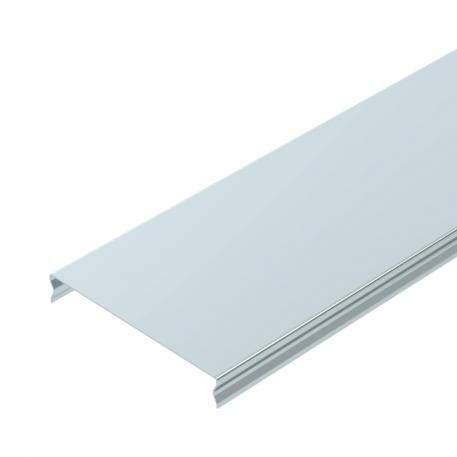

Cover for mesh cable tray, latchable FS
Item no. 6001842 | EAN 4012196687121
- Product description
-
Product descriptionLockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for interior areas without specific requirements.
With transverse bead from 400 mm width.
-
- Technical data
-
Technical data
Colour zinc Dimension 100x3000 Fastening type Locking Maintain electrical functions no Material Steel Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Strip galvanised Dimensions
Dimension B 98 mm Height 0,59 in Height 15 mm Length 3000 mm Width 98 mm Width 3,86 in CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,0189 kg CO2e / 1 Meter CO₂ Footprint (GWP) 2,0189 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Cover clamp, universal A2
DKU A2 6065600 20 piece - Downloads
-
Data sheet DGRR 100 FS / 6001842 , 0.19MB , pdfEU declaration of conformity DGRR 100 FS / 6001842 , 0.10MB , pdfREACH Declaration of conformity DGRR 100 FS / 6001842 , 0.12MB , pdfRoHS Declaration of conformity DGRR 100 FS / 6001842 , 0.12MB , pdfSelection aid GR-Magic® , 0.27MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
