Data technology support | | Installable data connector | Pure white; RAL 9010
morepic-1 morepic-2

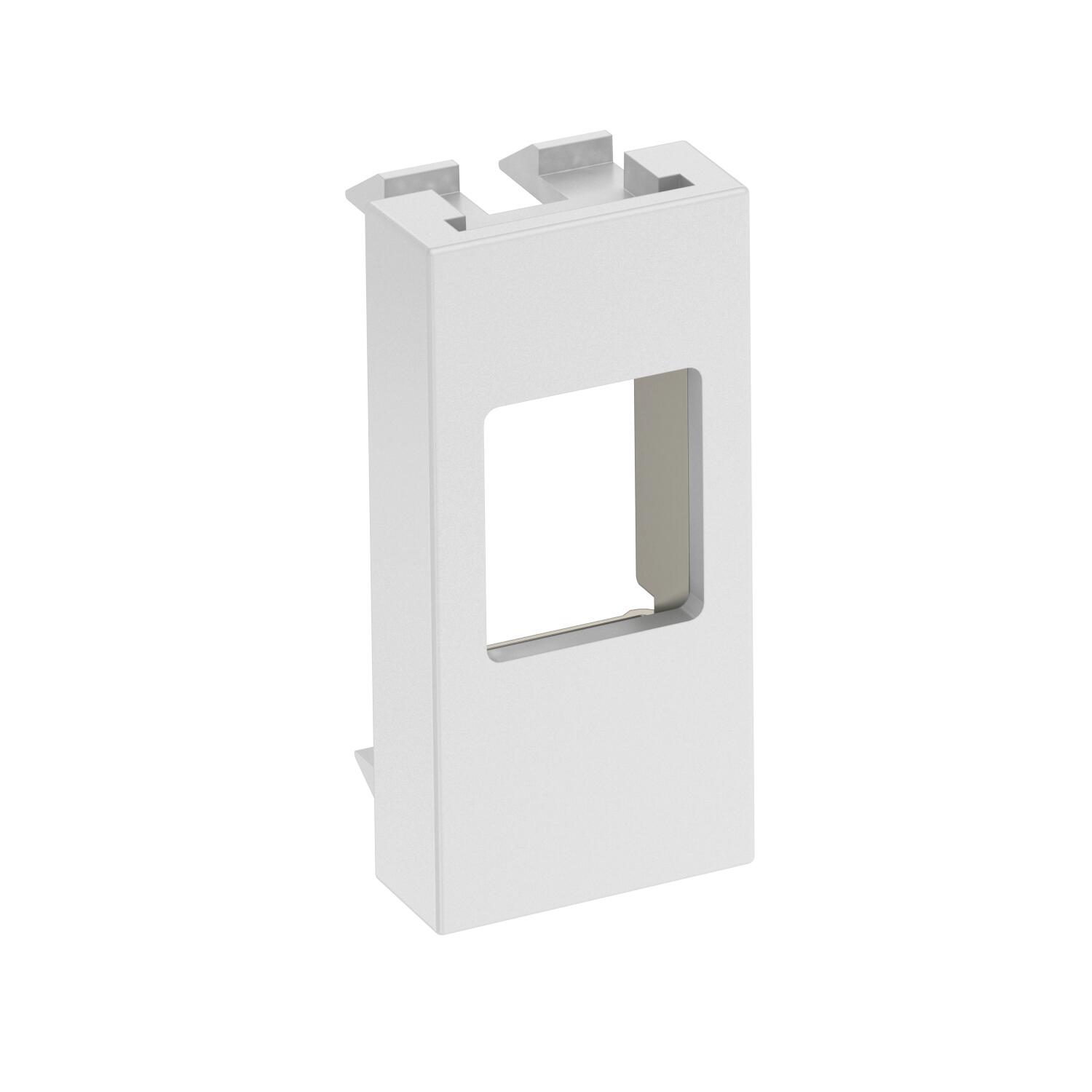

Data technology support

Item no. 6105332 | EAN 4012197442736

6105332 / MTG-KC RW0.5
Installable data connector
Pure white; RAL 9010
Product description
Product description
Data technology support to accept one data technology connection modules for RJ45 socket.
The type C data technology support is suitable for accepting the following data connection modules: BTR (Keystone design): Cat. 6A module and UAE module; Corning: modules with Keystone seat; CobiNet: CobiDat KS module; Dätwyler: KS-T, KS-TS, MS-K and KU-T; EKU: E-Stone; Harting: Prelink Keystone Cat.6A, Fixlink Keystone Cat.6A; Kosmos: KDM 500 module; Leoni Kerpen: MegaLine-Connect45 Keystone socket modules; OBO: Type ASM-C6A and ASM-C6A G; R&M: Cat.6A with Keystone fastening; Rutenbeck: UM and UMflex; SETEC: UKJ and XKJ; Telegärtner: AMJ and UMJ.


For the installation of device installation trunking Rapid 45 and Rapid 80, service poles ISS and underfloor systems.
Technical data

Technical data

Colour Pure white; RAL 9010
Combination Basic element with central cover plate
Depth 9 mm
Dimension 45x22,5x19
Fastening type Lock
Halogen-free yes
Hinged cover no
Labelling panel With labelling panel
Lamp-wire connector no
Material Polycarbonate
Protection rating IP20
ROHS-conformant yes
Strain relief option no
Support ring no
Surface version Matt
Transparent no
Use Installable data connector
With printed label no

Dimensions

Height 45 mm
Width 45 mm
All types

All types

Types Use Colour Item no. Quantity SSU
MTG-KC RW0.5 Installable data connector Pure white; RAL 9010 6105332
1 piece
Downloads

Download

No invitation to tender text is available for this product.
