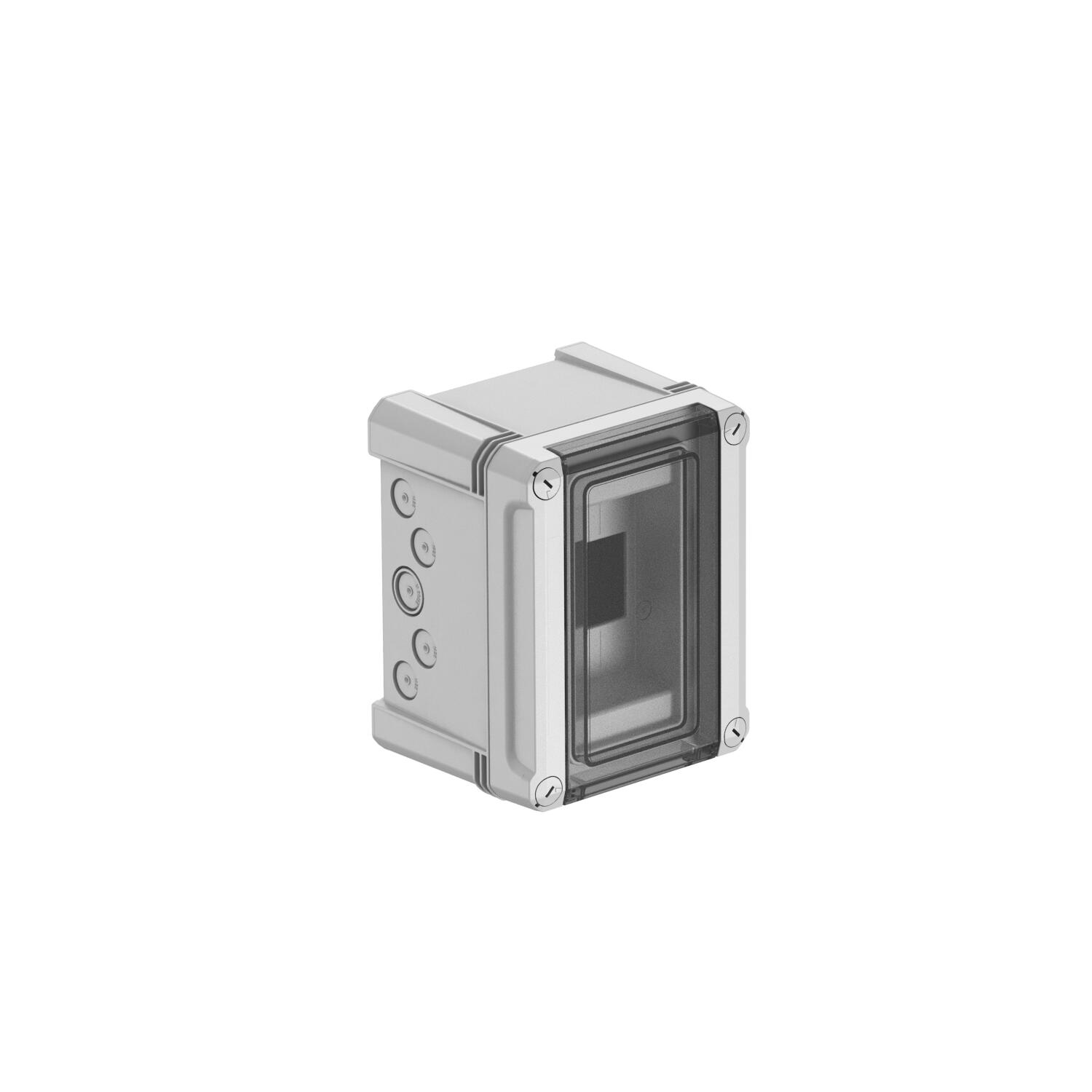

Distribution box, 3 division units, empty, polystyrene
Item no. 2008820 | EAN 4012196465705
- Product description
-

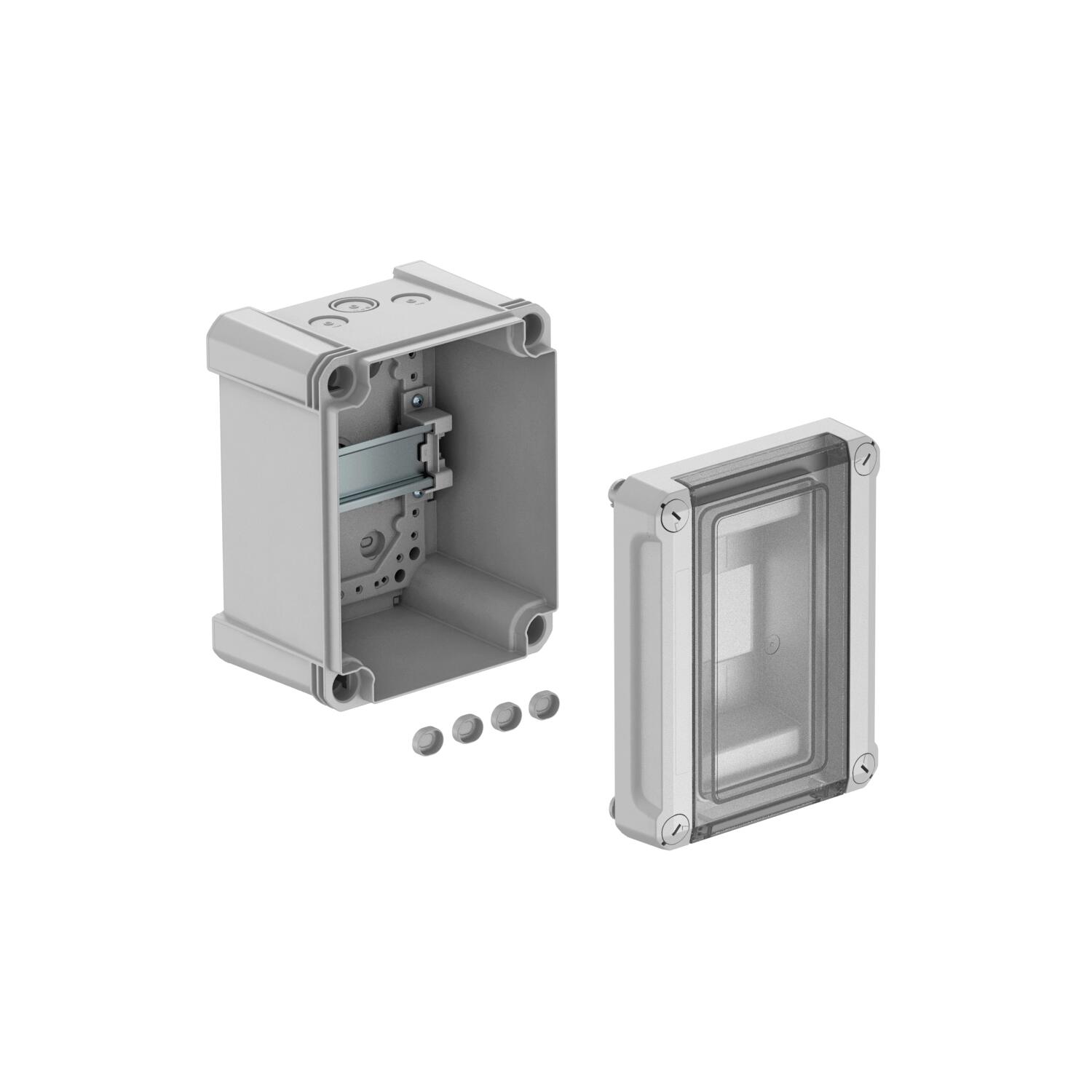

Product descriptionDistribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.
- Protection-insulated for a maximum of 3 division units
- 2 Ø 20 mm break-out openings each at the top and bottom
- 1 Ø 20/25 mm combination break-out opening each at the top and bottom
- 4 screw cover caps
The PS small distributors are suitable for mounting in interiors and in protected exteriors.
Nominal current 40 A
Power loss at 40 K 17 W
Measured voltage Un: 400 V
Operating measured voltage Ue: 400 V
Impulse current resistance Cat.III Uimp: 4 kV
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Cover type Cover Dimension 150x190x125 DIN rail yes EMC version no Extension option yes Material Polystyrene Mounting type, consumer units Structure Nominal current 40 A Nominal voltage 400 V Number of rows 1 Protection rating IP66 Protection rating IK code IK07. Transparent lid yes Version, small distributor cover With cut-out Width in divisional units 3 With lock no With mounting plate no Dimensions
Height 126 mm Length 191 mm Width 151 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,3856 kg CO2e / 1 Piece CO₂ Footprint (GWP) 2,3856 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
