Drop-in anchor for multiple fastening G 30 | M8 | 2

Drop-in anchor for multiple fastening G

Item no. 3492208 | EAN 4012197507060

Item no. / Types

Length

Thread

Permitted load range, tension zone

Product description

Product description

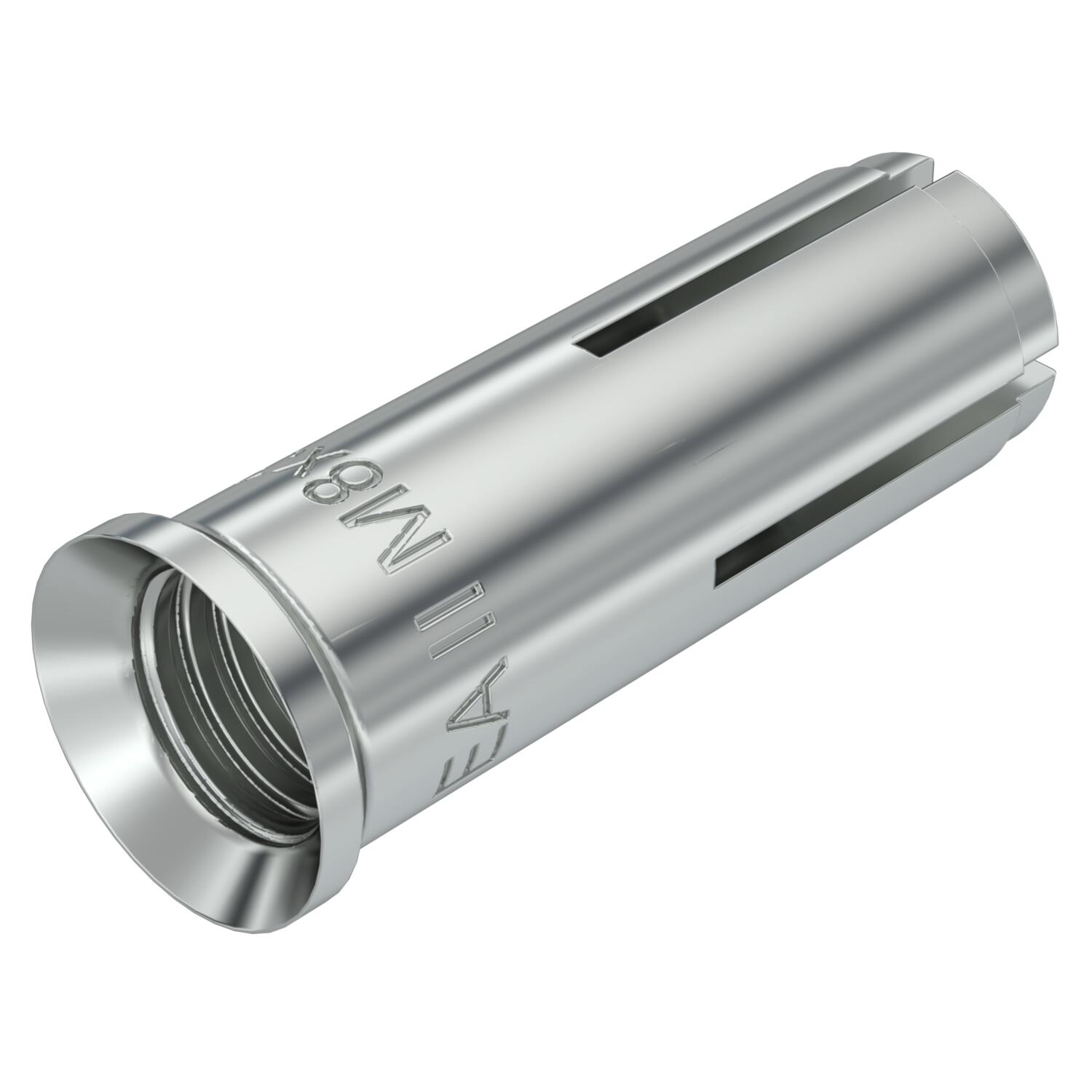

Drop-in anchor for multiple fastening, with internal thread in steel, for the anchoring of, for example, cable tray systems, consoles, steel conctructions, etc. in uncracked concrete in indoor and outdoor areas. To knock in with a hammer. With an edge to prevent the anchor from being pulled in. Rustproof and highly corrosion-resistant. The anchor sleeve tightens against the drill hole wall when the internal pin is knocked in, e.g. using the manual firing tool EHS M. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-07/0135 for concrete.

Technical data

Technical data

Approvals available	yes
Colour	zinc

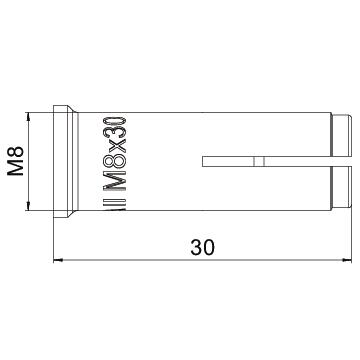

Dimension	M8x30
Dimension L	30 mm
Drill hole depth	30 mm
Drill hole diameter, min.	10 mm
Fastening unit	Miscellaneous
Length	30 mm
Material	Steel
Mounting type, anchor, tie	Pre-mounting

Permitted load range, tension zone	2
Screw-in depth, max.	14 mm
Screw-in depth, min.	8 mm
Self-drilling	no
Suitable for material	Concrete, Natural stone
Surface	Electrogalvanized
Thread	M8
Thread metric	8
Thread type	Metric
Version for	Lightning strike

All types

All types

Types	Length	Thread	Permitted load range, tension zone	Item no.	Quantity	SSU
EA II M 6x25	25 mm	M6	1	3492200	piece	1 piece
EA II M 8x25	25 mm	M8	1.4	3492206	piece	1 piece
EA II M 8x30	30 mm	M8	2	3492208	piece	1 piece
EA II M 10x25	25 mm	M10	1.9	3492214	piece	1 piece
EA II M 10x30	30 mm	M10	2	3492216	piece	1 piece
EA II M 10x40	40 mm	M10	3	3492218	piece	1 piece
EA II M 12x25	25 mm	M12	1.9	3492224	piece	1 piece
EA II M 12x50	50 mm	M12	4.3	3492230	piece	1 piece
EA II M 8x40 A4	40 mm	M8	2	3492240	piece	1 piece
EA II M 10x40 A4	40 mm	M10	3	3492244	piece	1 piece
EA II M 12x50 A4	50 mm	M12	4.3	3492248	piece	1 piece
