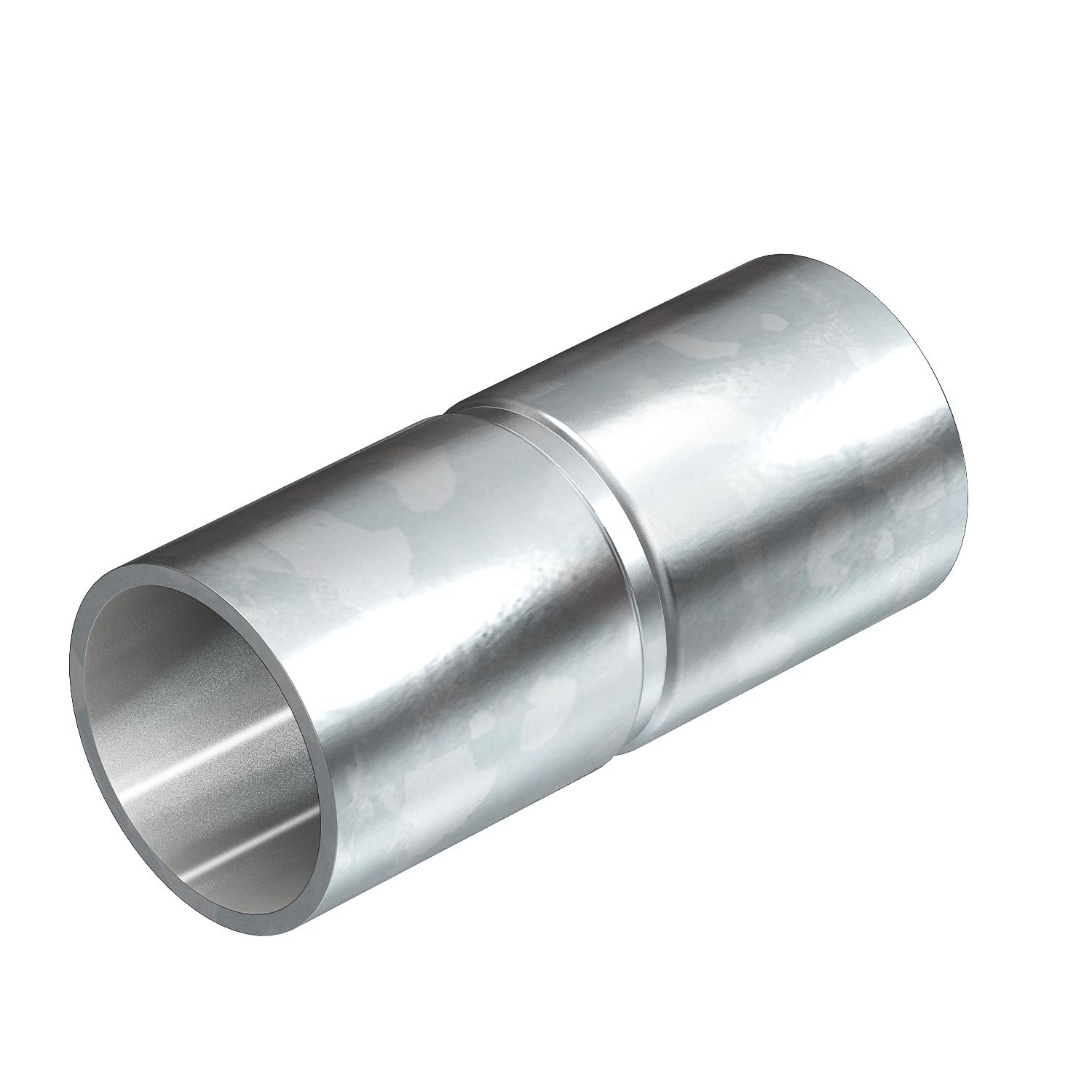

Electrogalvanised steel sleeve, without thread
Item no. 2046854 | EAN 4012195924784
- Product description
-
Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
-
- Technical data
-
Technical data
Brushed surface no Dimension Ø16mm for pipe diameter 16 mm Halogen-free yes Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 16 Surface Electrogalvanised Two-part no Version for Connector With inspection opening and lid no Dimensions
Dimension d 16,6 mm Dimension D 18,6 mm Dimension l 25 mm Dimension L 50 mm Dimension m (mm) M16 Dimension t 1 mm Length 50 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0715 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0715 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet SV16W G / 2046854 , 0.17MB , pdfEU declaration of conformity SV16W G / 2046854 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,REACH Declaration of conformity SV16W G / 2046854 , 0.12MB , pdfRoHS Declaration of conformity SV16W G / 2046854 , 0.12MB , pdf
