End piece, trunking type WDK 15040 40 | 17 | 40 | Pure white; RAL 9010
morepic-1 morepic-2

End piece, trunking type WDK 15040

Item no. 6193110 | EAN 4012196975624

6193110 / WDK HE15040RW
40 mm
17 mm
40 mm
Pure white; RAL 9010
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 15x40mm
Fastening type Lockable
Halogen-free no
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right

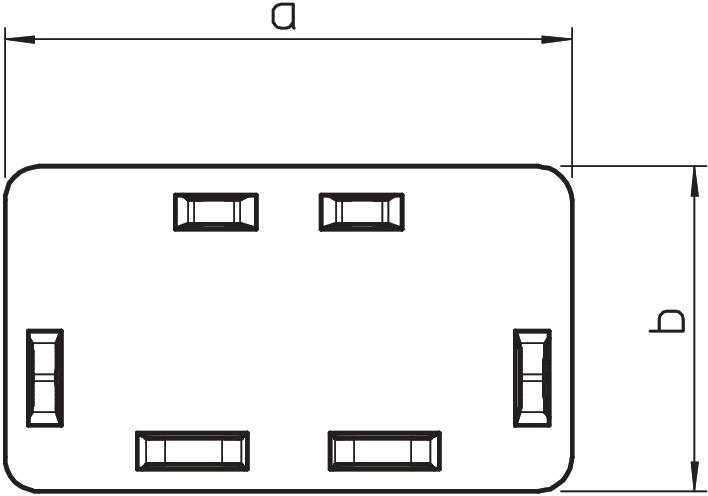

Dimensions

Dimension a 40 mm
Dimension b 17 mm
Dimension H 40 mm
Height 17 mm
Length 17 mm
Width 40 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,0169 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,0169 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE15040RW 40 mm 17 mm 40 mm Pure white; RAL 9010 6193110
10 piece
