Fastening clip 822, heavy duty, A4
Item no. 1013893 | EAN 4012195911852
- Product description
-
Product descriptionFastening clip, single-lobe, 25 mm
-
- Technical data
-
Technical data
Dimension 25mm Distance to the wall no Fastening type Screw hole For diameter 25 Halogen-free yes Hole size 6,5 x 10 Material Stainless steel 1.4571 Material thickness 2 mm Nominal diameter 25 mm Number of cables/pipes 1 Plastic-covered no Size M25 Suitable in fire protection area no Surface Bright, treated UV-resistant yes Version for Single-lobe Dimensions

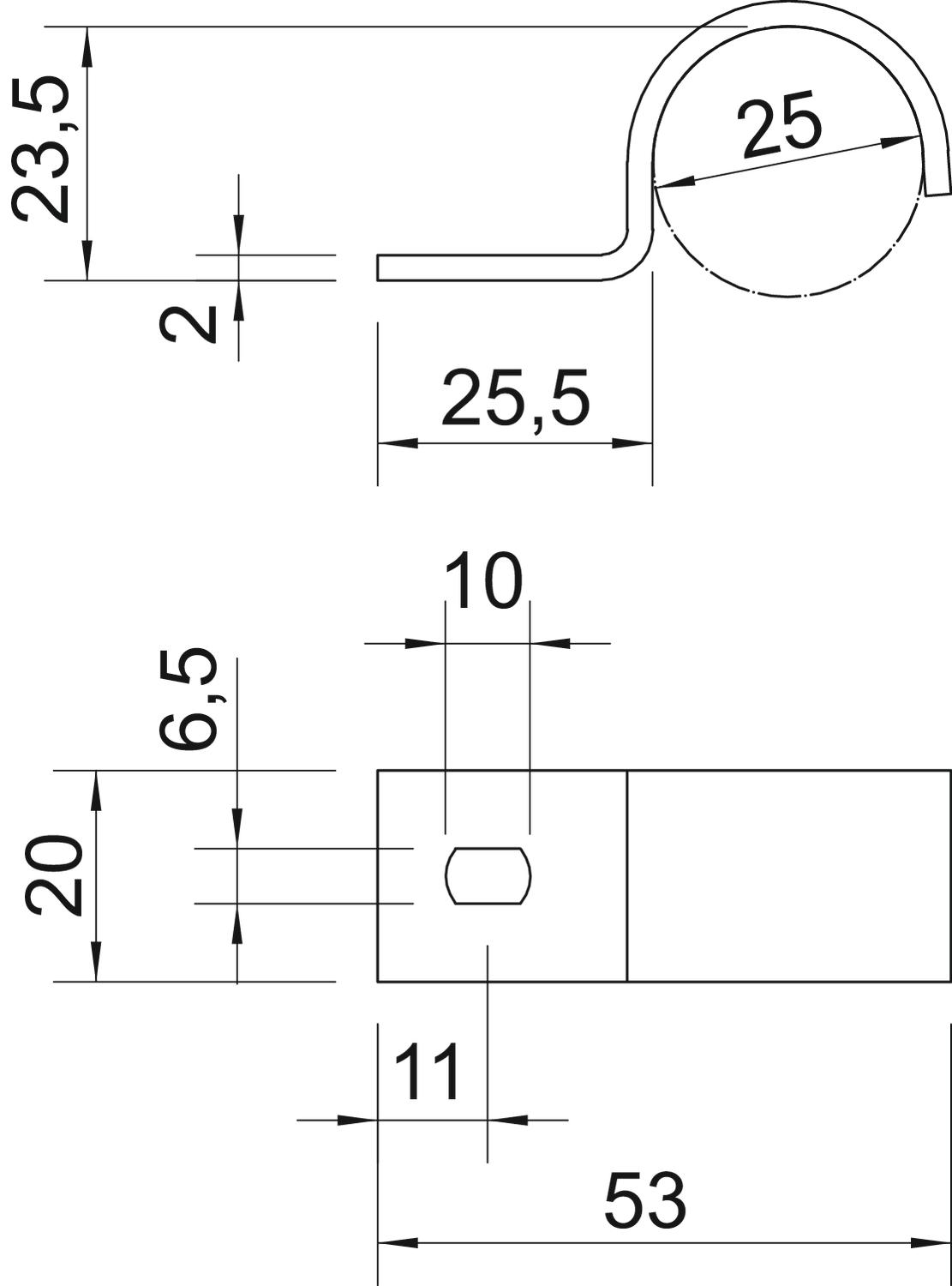

Dimension A 11 mm Dimension b 20 mm Dimension D 25 mm Dimension H 23,5 mm Dimension L 25,5 mm Dimension L1 53 mm Dimension t 2 mm Height 23,5 mm Length 53 mm Width 20 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,179 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,179 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 822 25 A4 / 1013893 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 822 25 A4 / 1013893 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 822 25 A4 / 1013893 , 0.09MB , pdfREACH Declaration of conformity 822 25 A4 / 1013893 , 0.12MB , pdfRoHS Declaration of conformity 822 25 A4 / 1013893 , 0.13MB , pdf
