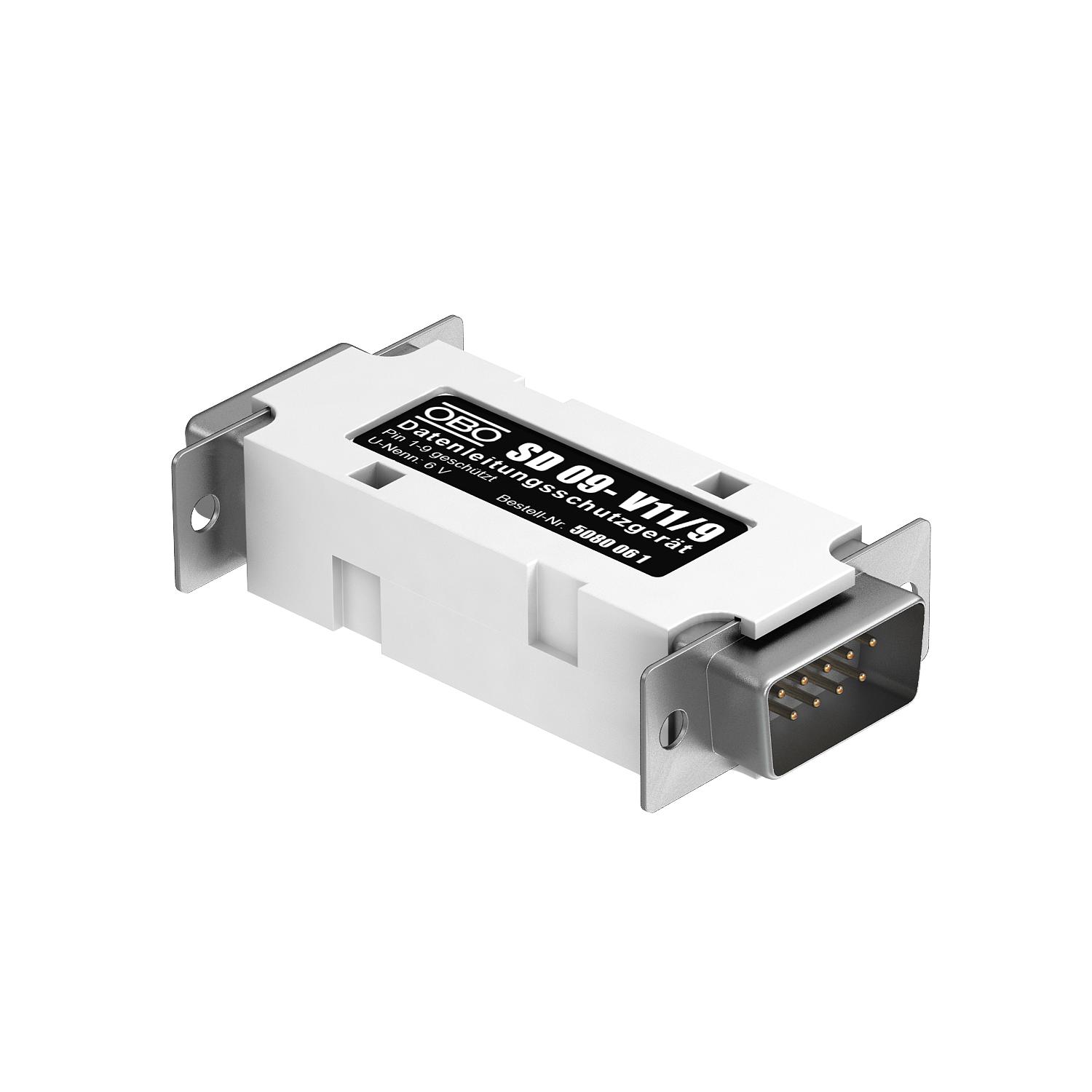

Fine protection for 9-pole RS485 interface
Item no. 5080061 | EAN 4012195916277
- Product description
-
Product descriptionData cable protection device for serial interfaces
• Various connection technologies available
• Low voltage protection level
Application: PLC, alarm systems, controllers
-
- Technical data
-
Technical data
Arrestor monitoring no Dimension 6V Explosion-tested version no Impulse durability wire-earth 0,75 kA (8/20µs) Impulse durability wire-wire 0,75 kA (8/20µs) Kategorie Type 3 / C1 Lightning protection zone LPZ 2→3 Maximum continuous voltage AC 5,2 V Maximum continuous voltage DC 8 V Nominal voltage 6 V Number of poles 9 Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Plug-in system D-Sub 9-pin Protection level wire-earth <100 V Protection level wire-wire <100 V Protection level, wire-earth at 1 kV/µs (C3) <10 Protection level, wire-wire at 1 kV/µs (C3) <10 V Protection rating IP40 Response time <10 ns Screening Direct Shielding connection available yes SPD to IEC 61643-21 Class III / C1 Telecommunications contact no Testing standard IEC 61643-21 Version for SUB-D-9; V11 RS485 Dimensions
Height 34 mm Length 60 mm Width 16 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0926 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0926 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet SD09-V11 9 / 5080061 , 0.18MB , pdfREACH Declaration of conformity SD09-V11 9 / 5080061 , 0.12MB , pdfRoHS Declaration of conformity SD09-V11 9 / 5080061 , 0.13MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdf
