FireBox T100ED with external fastening and fuse holder 136x102x57 | 10 | IP66 | Pastel orange; RAL 2003

FireBox T100ED with external fastening and fuse holder

Item no. 7205752 | EAN 4012196812288

Item no. / Types

Clear internal dimensions

No. of entries

Protection rating	IP66

Colour	Pastel orange; RAL 2003

Product description

Product description

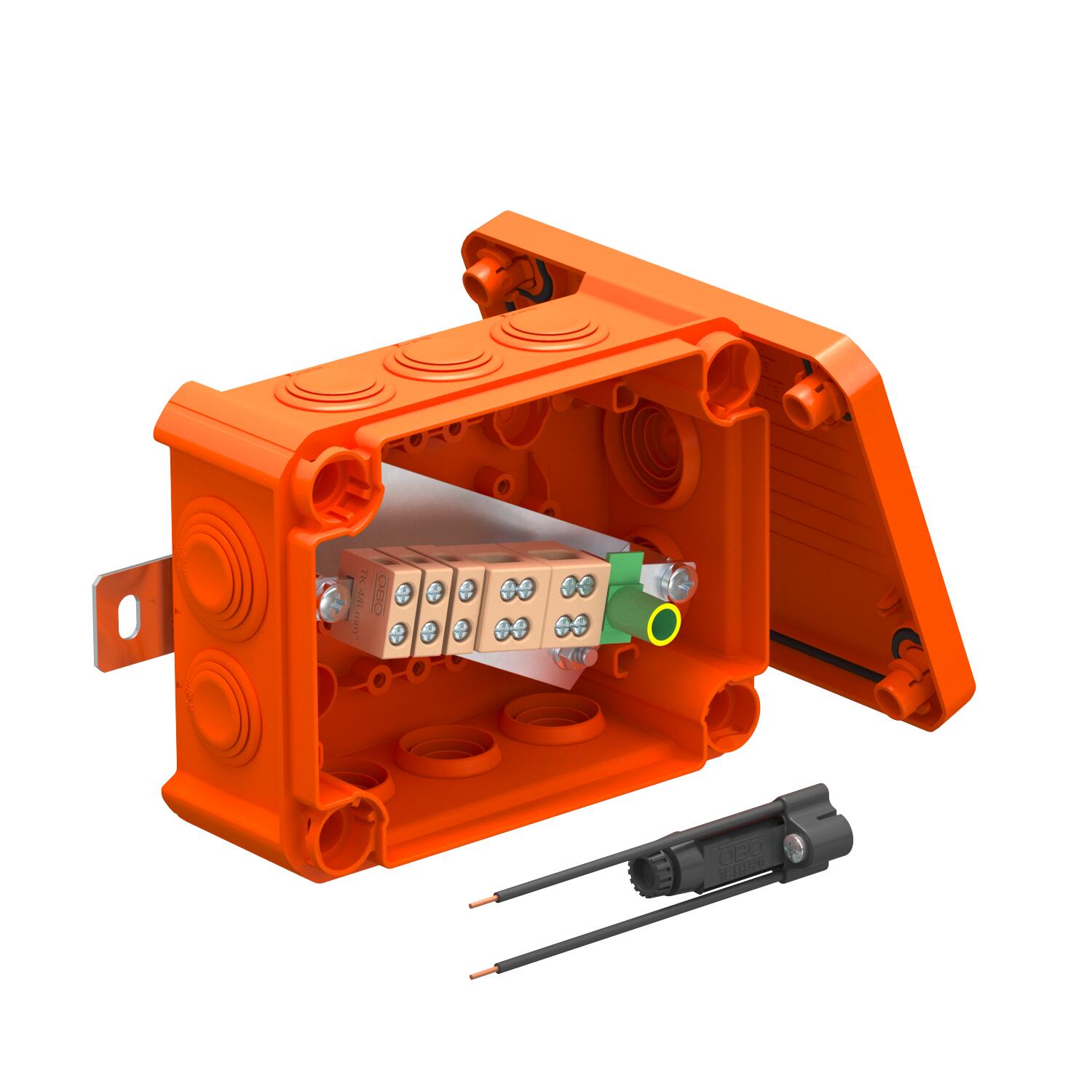

Junction box with one fuse holder and soft plug-in seals. Sufficiently large wiring compartment through diagonally arranged connection unit with completely pre-mounted, high-temperature-resistant ceramic terminals. Green-yellow labelled protective conductor terminal. Fastening on easily accessible external flaps. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90. Ceramic clamps have been tested according to DIN EN 60998-2-1:2004.

Including 2 x MMSplus P 6x35 screw ties.

Technical data

Technical data

Colour	Pastel orange; RAL 2003
Cover	Not transparent
Cover fastening	Screwed
Dimension	150x116x67
Double terminals	2
Entry from rear	no
Equipment	Terminal
Expandable	no
Explosion-tested version	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Impact-resistant	no
Maintain electrical functions	E 90
Material	Polypropylene

Measured insulation voltage Vi	690 V
No. of entries	10
Nominal cross-section, max.	6 mm²
Nominal cross-section, min.	1,5 mm²
Nominal voltage	660 V
Number of terminals	6
Protection rating	IP66
Protective terminal	1
Sealable	no
Shape	Rectangular
Single terminals	3
Transparent lid	no
Type of housing penetration	Cuttable stepped membrane
Weatherproof	no
with lid	yes
With screening	no

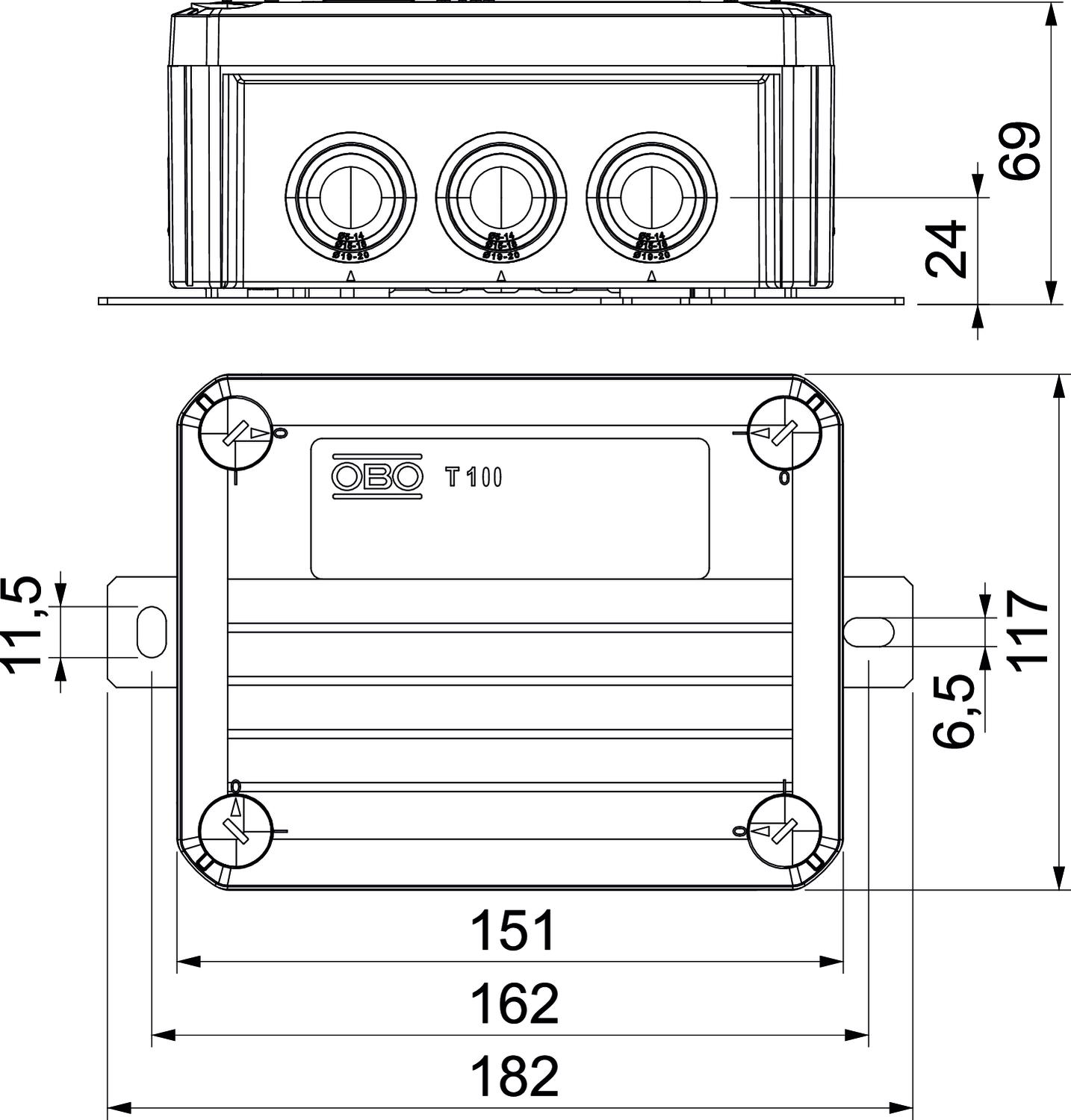

Dimensions

Clear internal dimensions	136x102x57 mm
Dimension B	116 mm
Dimension H	67 mm
Dimension L	150 mm
Dimension L1	162 mm

Dimension L2	182 mm
Height	67 mm
Length	150 mm
Width	116 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	1,6913 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	1,6913 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Clear internal dimensions	No. of entries	Protection rating	Colour	Item no.	Quantity	SSU
T100ED 06AF	136x102x57 mm	10	IP66	Pastel orange; RAL 2003	7205752	piece	1 piece
T160ED 10AF	176x135x67 mm	12	IP66	Pastel orange; RAL 2003	7205754	piece	1 piece
T250ED 16AF	225x173x86 mm	-	IP66	Pastel orange; RAL 2003	7205756	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Fuse holder for FireBox T series	TE-FH 520	7205570	piece	1 piece
Ceramic terminal, single	TK 06	7205702	piece	5 piece
Ceramic terminal, double	TK 06-2	7205703	piece	5 piece
Plug-in seal for FireBox T series	EDK 25 OR	7205675	piece	10 piece
Plug-in seal for FireBox T series	EDK 32 OR	7205677	piece	10 piece
