FireBox T250, with plug-in seals, for data technology, 4x16 225x173x86 | 10 | IP66 | Pastel orange; RAL 2003

FireBox T250, with plug-in seals, for data technology, 4x16

Item no. 7205768 | EAN 4012196812165

Item no. / Types

Clear internal dimensions	225x173x86 mm

No. of entries	10

Protection rating	IP66

Colour	Pastel orange; RAL 2003

Product description

Product description

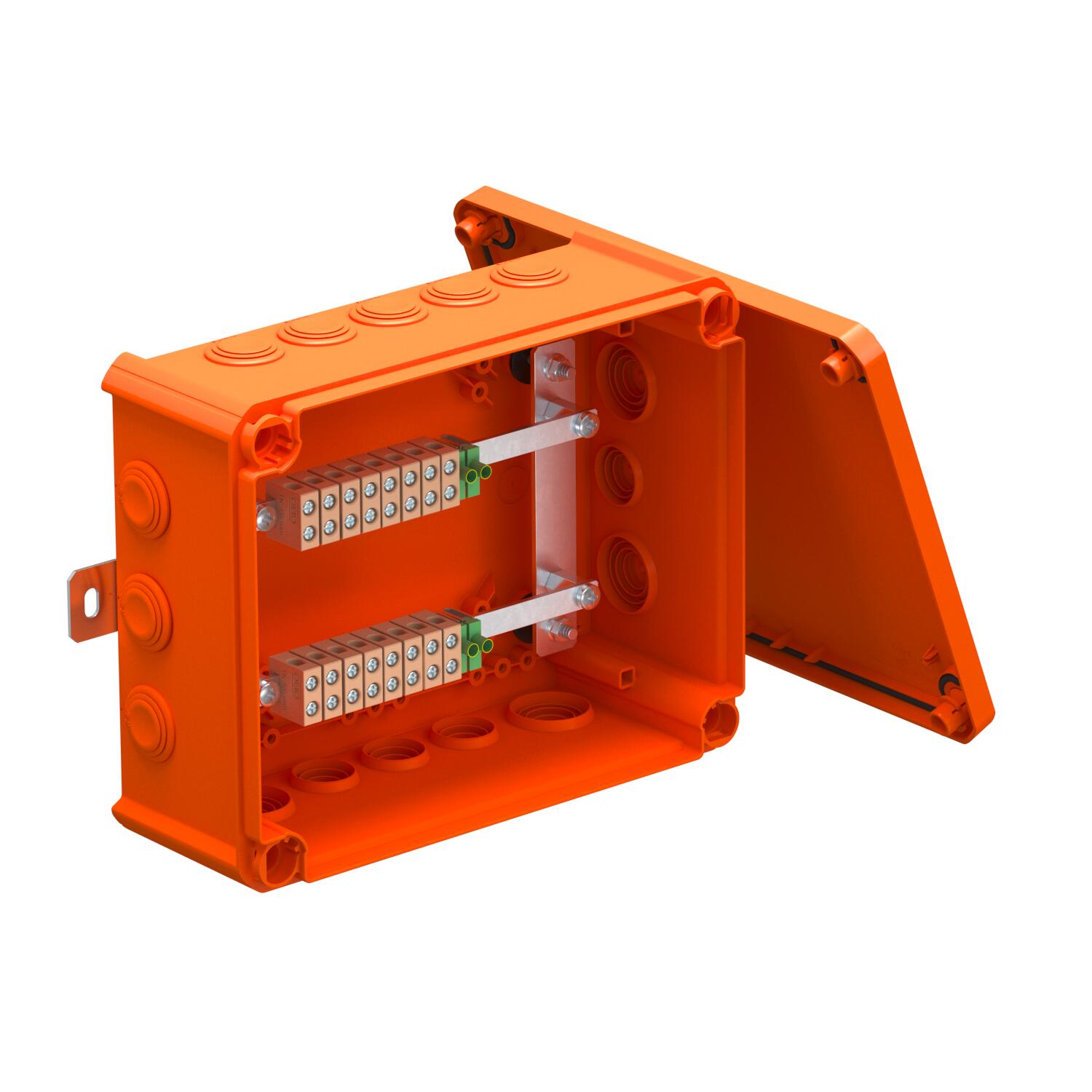

Connection box for data technology with soft plug-in seals. Pairs of high-temperature-resistant ceramic terminals, suitable for data cables. Green-yellow labelled protective conductor/shield terminal. Fastening on easily accessible external flaps. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90. Ceramic clamps have been tested according to DIN EN 60998-2-1:2004.

Including 2x MMSplus P 6x35 screw ties.

Technical data

Technical data

Colour	Pastel orange; RAL 2003
Cover	Not transparent
Cover fastening	Screwed
Dimension	240x190x95
Entry from rear	no
Equipment	Terminal
Expandable	no
Explosion-tested version	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Impact-resistant	no
Maintain electrical functions	E 90
Material	Polypropylene

No. of entries	10
Nominal cross-section, max.	4 mm²
Nominal cross-section, min.	0,5 mm²
Nominal voltage	660 V
Number of terminals	20
Protection rating	IP66
Protective terminal	4
Sealable	no
Shape	Rectangular
Single terminals	16
Transparent lid	no
Type of housing penetration	Cuttable stepped membrane
Weatherproof	no
with lid	yes
With screening	no

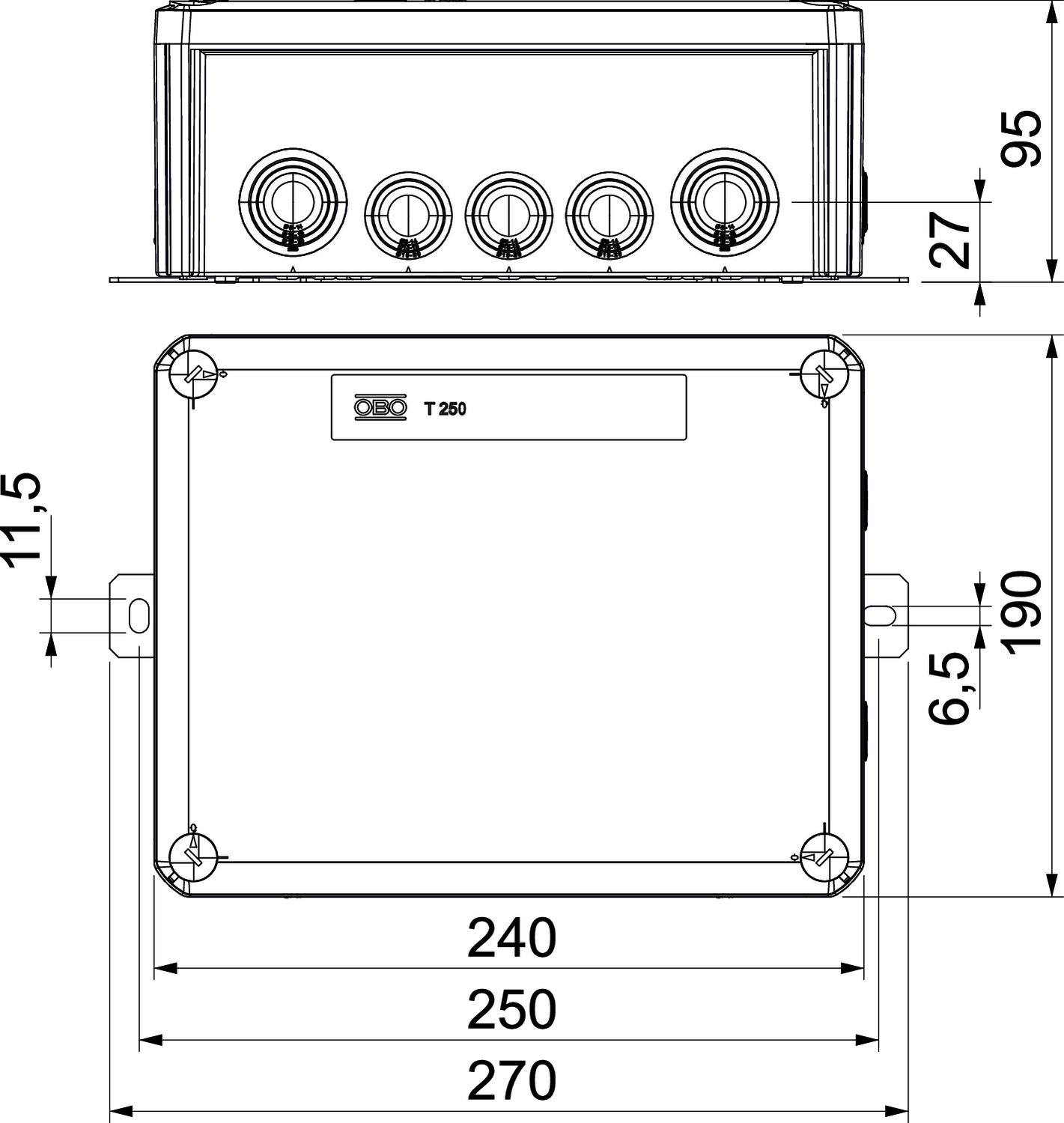

Dimensions

Clear internal dimensions	225x173x86 mm
Dimension B	190 mm
Dimension H	95 mm
Dimension L	240 mm
Dimension L1	250 mm

Dimension L2	270 mm
Height	95 mm
Length	240 mm
Width	190 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	3,588 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	3,588 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Clear internal dimensions	No. of entries	Protection rating	Colour	Item no.	Quantity	SSU
T250ED 4x24AD	225x173x86 mm	10	IP66	Pastel orange; RAL 2003	7205770	piece	1 piece
T250ED 4x16AD	225x173x86 mm	10	IP66	Pastel orange; RAL 2003	7205768	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Fuse holder for FireBox T series	TE-FH 520	7205570	piece	1 piece
Ceramic terminal	TK 04	7205700	piece	5 piece
Plug-in seal for FireBox T series	EDK 25 OR	7205675	piece	10 piece
Plug-in seal for FireBox T series	EDK 32 OR	7205677	piece	10 piece
