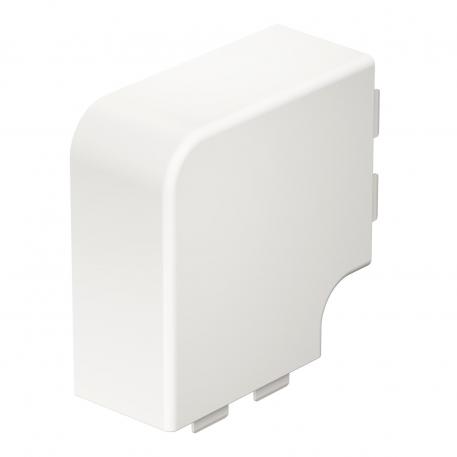

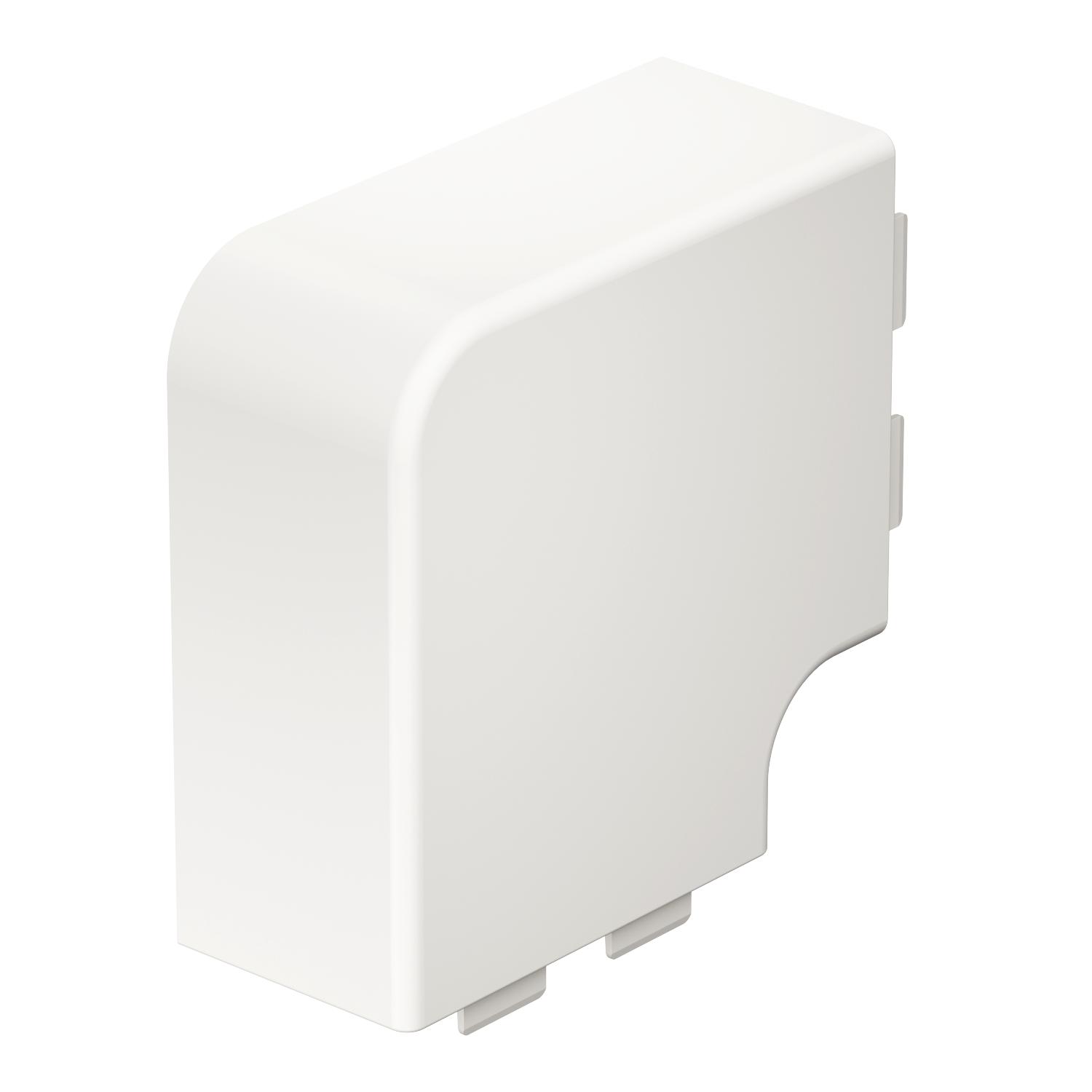

Flat angle cover, trunking type WDK 60110
Item no. 6192939 | EAN 4012196712755
- Product description
-
Product descriptionFlat angle hood for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 60x110mm Fastening type Lockable for duct dimension 60 x 110 Halogen-free no Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 60 mm Version for Hood fitting Dimensions
Dimension a 149 mm Dimension H 110 mm Height 60 mm Length 149 mm Width 110 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,3376 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,3376 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WDK HF60110RW / 6192939 , 0.18MB , pdfSafety data sheet WDK HF60110RW / 6192939 , 0.02MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HF60110RW / 6192939 , 0.10MB , pdfUK Declaration of Conformity WDK HF60110RW / 6192939 , 0.09MB , pdfREACH Declaration of conformity WDK HF60110RW / 6192939 , 0.12MB , pdfRoHS Declaration of conformity WDK HF60110RW / 6192939 , 0.28MB , pdfMounting instructions Cable trunking WDK , 6.31MB , pdfNo invitation to tender text is available for this product.
