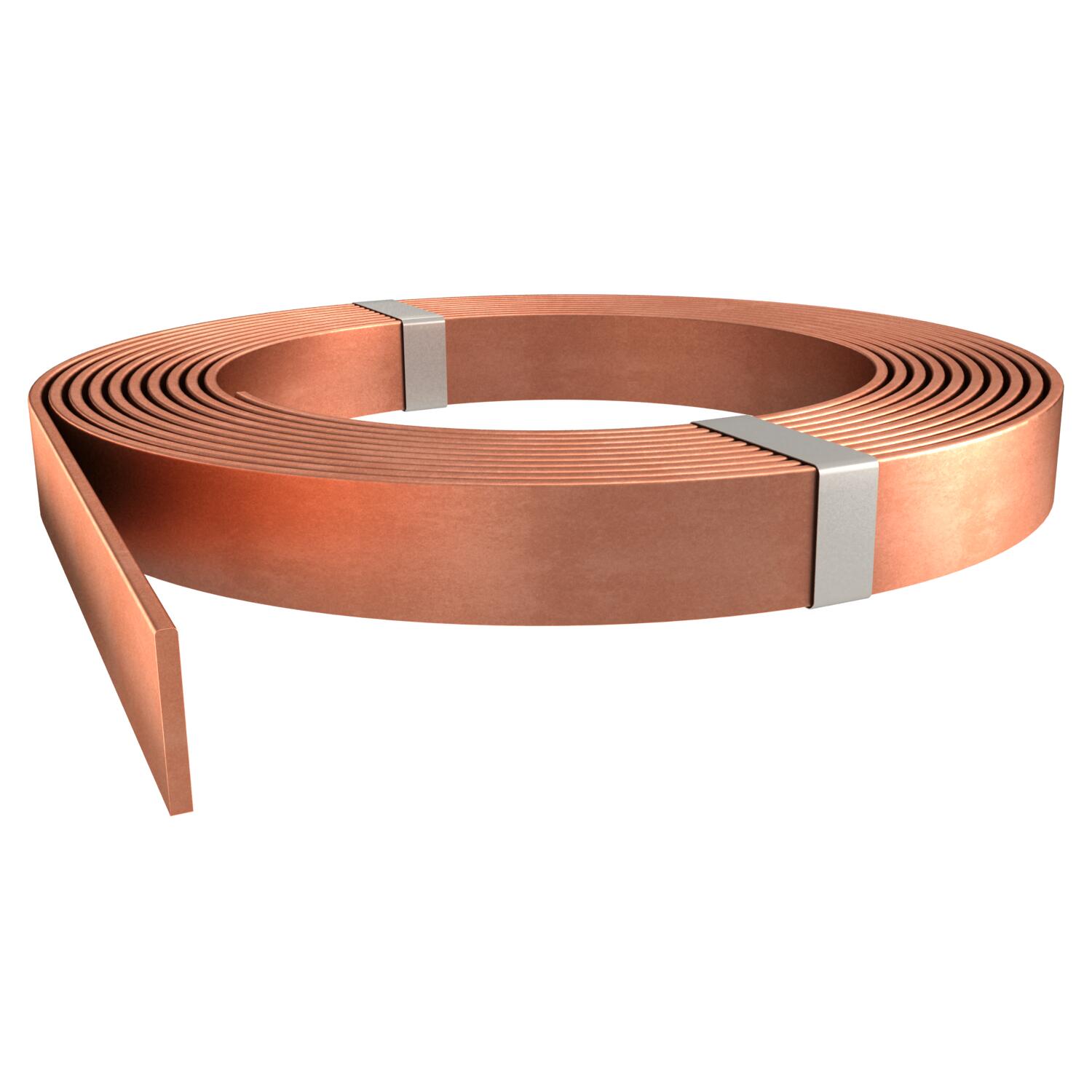

Flat conductor, copper
Item no. 5021830 | EAN 4012196431199
- Product description
-
Product description• Can be used as a conductor and earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• For lightning protection, earthing systems and ring equipotential bonding
-
- Technical data
-
Technical data
Cross-section 75 mm² Dimension 25x3 Length tolerance ± 5 % Material Copper Nomal ring (approx. kg) 33 Nomal ring (approx. m) 50 Dimensions

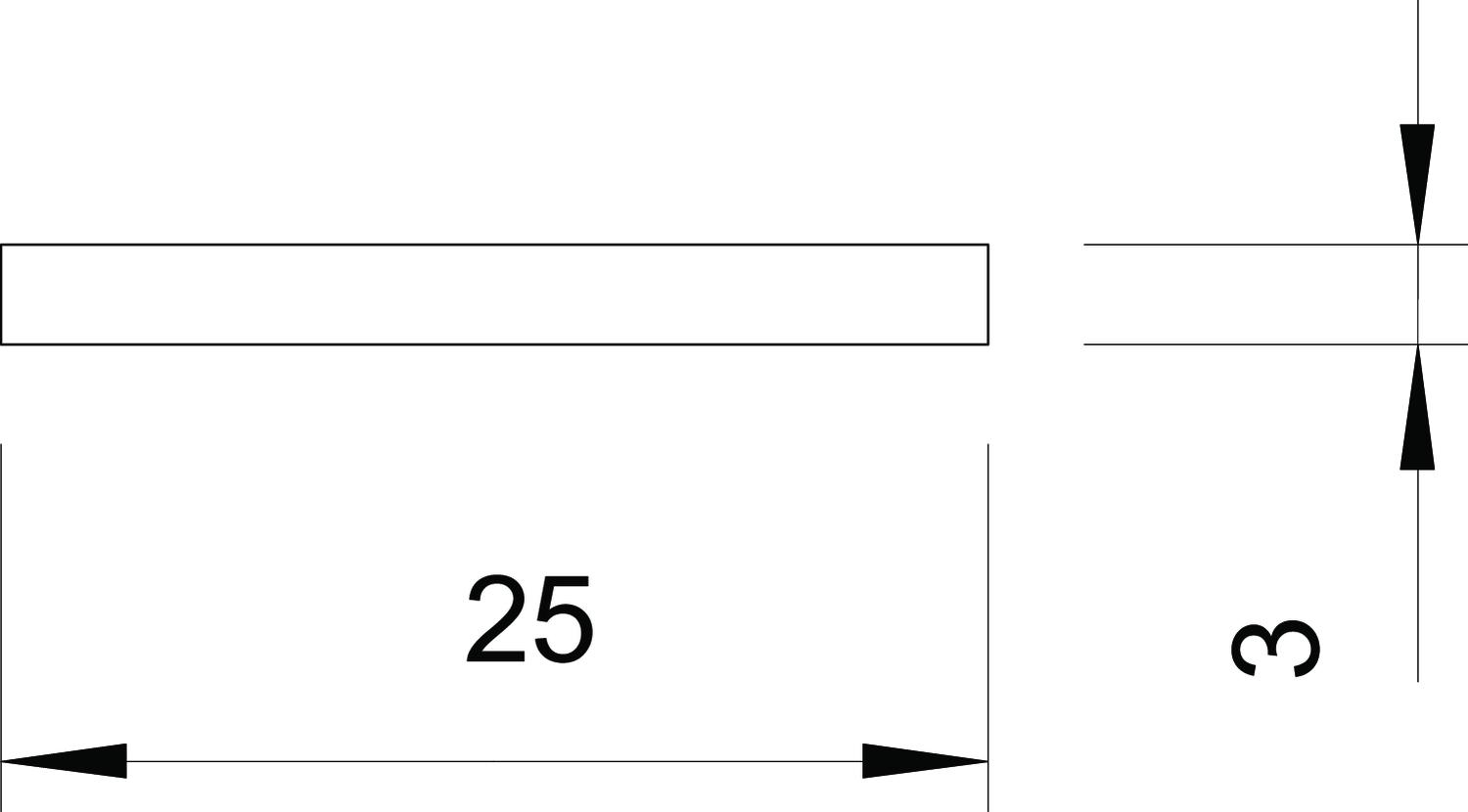

Dimension B 25 mm Dimension H 3 mm Height 3 mm Length 50 mm Width 25 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,0219 kg CO2e / 1 Meter CO₂ Footprint (GWP) 2,0219 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet FL 25-CU / 5021830 , 0.15MB , pdfEU declaration of conformity FL 25-CU / 5021830 , 0.06MB , pdfREACH Declaration of conformity FL 25-CU / 5021830 , 0.12MB , pdfRoHS Declaration of conformity FL 25-CU / 5021830 , 0.13MB , pdf
