G mesh cable tray Magic® 125 A2
Item no. 6005556 | EAN 4012195686491
- Product description
-
Product descriptionG-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
-
- Technical data
-
Technical data
Colour stainless steel Connector version Integrated connector Dimension 125x75x3000 Integrated partition Without Load test type according to IEC 61537 Type II Maintain electrical functions no Material Stainless steel 1.4301 Profile shape G-shaped Rustproof steel, pickled yes Screwless connector yes Surface Bright, treated Type of connector, cable support system Click fastening Usable cross-section 6100 mm² Usable cross-section 61 cm² Wide-span version no Wire diameter 3,9 mm Dimensions

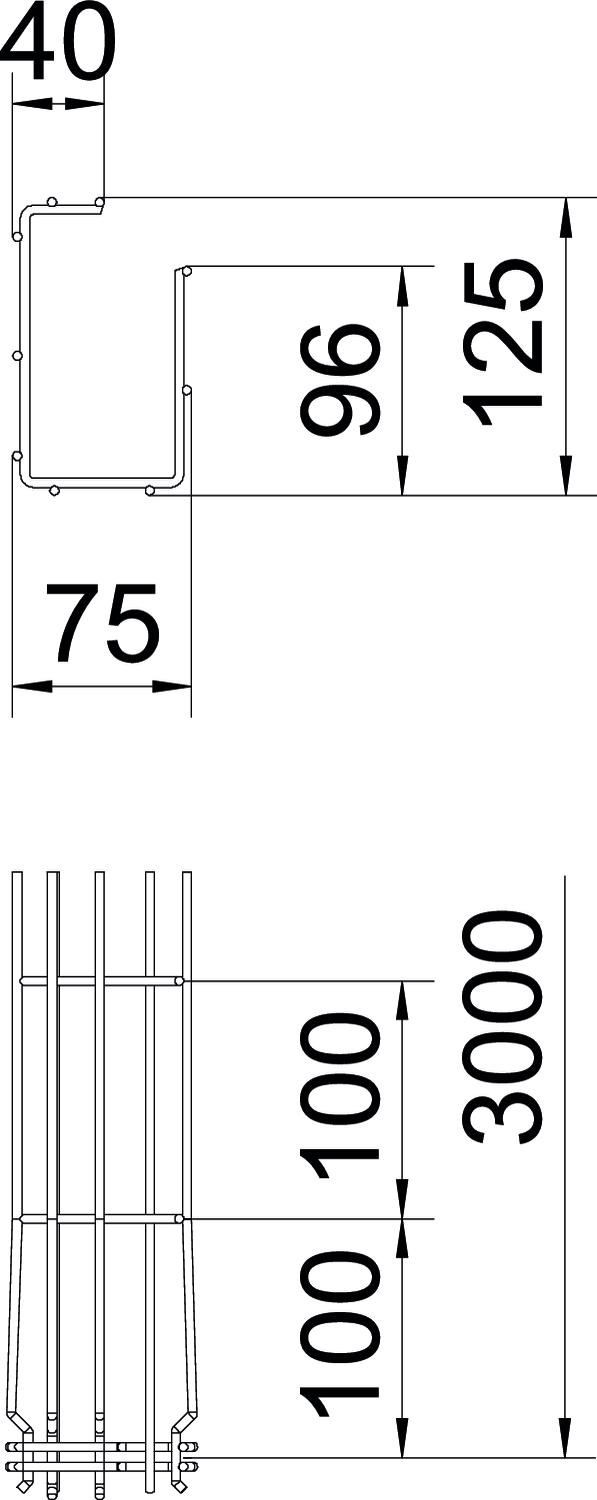

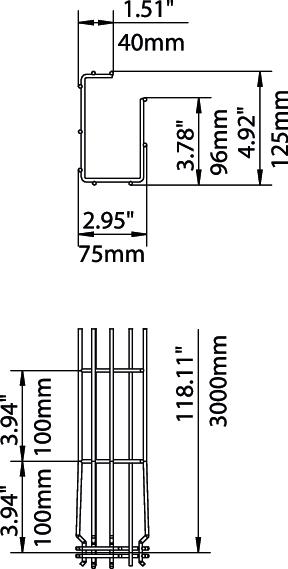

Dimension A 96 mm Dimension B 75 mm Dimension C 38 mm Dimension H 125 mm Height 4,92 in Height 125 mm Length 3000 mm Width 2,95 in Width 75 mm Loads
Support spacing 1.0 m 0,6 kN/m Support spacing 1.5 m 0,35 kN/m Support spacing 2.0 m 0,3 kN/m Support spacing 2.5 m 0,25 kN/m CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 5,4826 kg CO2e / 1 Meter CO₂ Footprint (GWP) 5,4826 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Joint connector A2
GSV 34 A2 6016642 20 piece
Wall clamp and central hanger A4
WB GR A4 6017164 20 piece - Downloads
-
Data sheet G-GRM 125 75 A2 / 6005556 , 0.16MB , pdfEU declaration of conformity G-GRM 125 75 A2 / 6005556 , 0.10MB , pdfREACH Declaration of conformity G-GRM 125 75 A2 / 6005556 , 0.12MB , pdfRoHS Declaration of conformity G-GRM 125 75 A2 / 6005556 , 0.13MB , pdfEnvironmental Product Declaration (EPD) G-GRM 125 75 A2 / 6005556 , 1.48MB , pdfSelection aid GR-Magic® , 0.27MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
