G mesh cable tray Magic® 125 G
Item no. 6005541 | EAN 4012195686453
- Product description
-
Product descriptionG-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
-
- Technical data
-
Technical data
Colour zinc Connector version Integrated connector Dimension 125x75x3000 Integrated partition Without Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Profile shape G-shaped Rustproof steel, pickled no Screwless connector yes Surface Electrogalvanised Type of connector, cable support system Click fastening Usable cross-section 6100 mm² Usable cross-section 61 cm² Wide-span version no Wire diameter 3,9 mm Dimensions

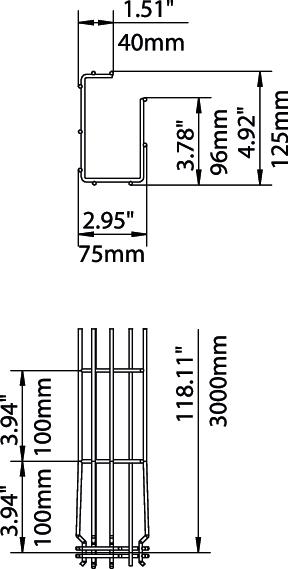

Dimension A 96 mm Dimension B 75 mm Dimension C 38 mm Dimension H 125 mm Height 4,92 in Height 125 mm Length 3000 mm Width 75 mm Width 2,95 in Loads
Support spacing 1.0 m 0,6 kN/m Support spacing 1.5 m 0,35 kN/m Support spacing 2.0 m 0,3 kN/m Support spacing 2.5 m 0,25 kN/m CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,0574 kg CO2e / 1 Meter CO₂ Footprint (GWP) 2,0574 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Joint connector FT
GSV 34 FT 6016634 20 piece
Wall clamp and central hanger FT
WB GR FT 6017160 20 piece - Downloads
-
Data sheet G-GRM 125 75 G / 6005541 , 0.20MB , pdfEU declaration of conformity G-GRM 125 75 G / 6005541 , 0.10MB , pdfUK Declaration of Conformity G-GRM 125 75 G / 6005541 , 0.09MB , pdfREACH Declaration of conformity G-GRM 125 75 G / 6005541 , 0.12MB , pdfRoHS Declaration of conformity G-GRM 125 75 G / 6005541 , 0.13MB , pdfEnvironmental Product Declaration (EPD) G-GRM 125 75 G / 6005541 , 1.48MB , pdfSelection aid GR-Magic® , 0.27MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
