G mesh cable tray Magic® 75 G
Item no. 6005538 | EAN 4012195686446
- Product description
-
Product descriptionG-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
-
- Technical data
-
Technical data
Colour zinc Connector version Integrated connector Dimension 75x50x3000 Integrated partition Without Load test type according to IEC 61537 Type II Maintain electrical functions yes Material Steel Profile shape G-shaped Rustproof steel, pickled no Screwless connector yes Surface Electrogalvanised Type of connector, cable support system Click fastening Usable cross-section 2200 mm² Usable cross-section 22 cm² Wide-span version no Wire diameter 3,9 mm Dimensions

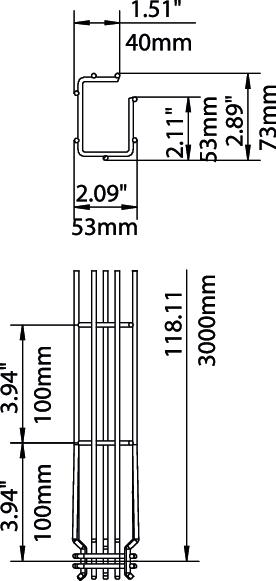

Dimension A 53 mm Dimension B 53 mm Dimension C 38 mm Dimension H 73 mm Height 75 mm Height 2,95 in Length 3000 mm Width 1,97 in Width 50 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,5059 kg CO2e / 1 Meter CO₂ Footprint (GWP) 1,5059 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Joint connector FT
GSV 34 FT 6016634 20 piece
Wall clamp and central hanger FT
WB GR FT 6017160 20 piece - Downloads
-
Data sheet G-GRM 75 50 G / 6005538 , 0.16MB , pdfEU declaration of conformity G-GRM 75 50 G / 6005538 , 0.11MB , pdfREACH Declaration of conformity G-GRM 75 50 G / 6005538 , 0.12MB , pdfRoHS Declaration of conformity G-GRM 75 50 G / 6005538 , 0.13MB , pdfEnvironmental Product Declaration (EPD) G-GRM 75 50 G / 6005538 , 1.48MB , pdfSelection aid GR-Magic® , 0.27MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
