Heavy-duty cable tray SGR 55 G

Item no. / Types

Length	3000 mm

Width

Height	55 mm

Wire diameter	6 mm

Usable cross-section

Maintain electrical functions	no

Product description

Product description

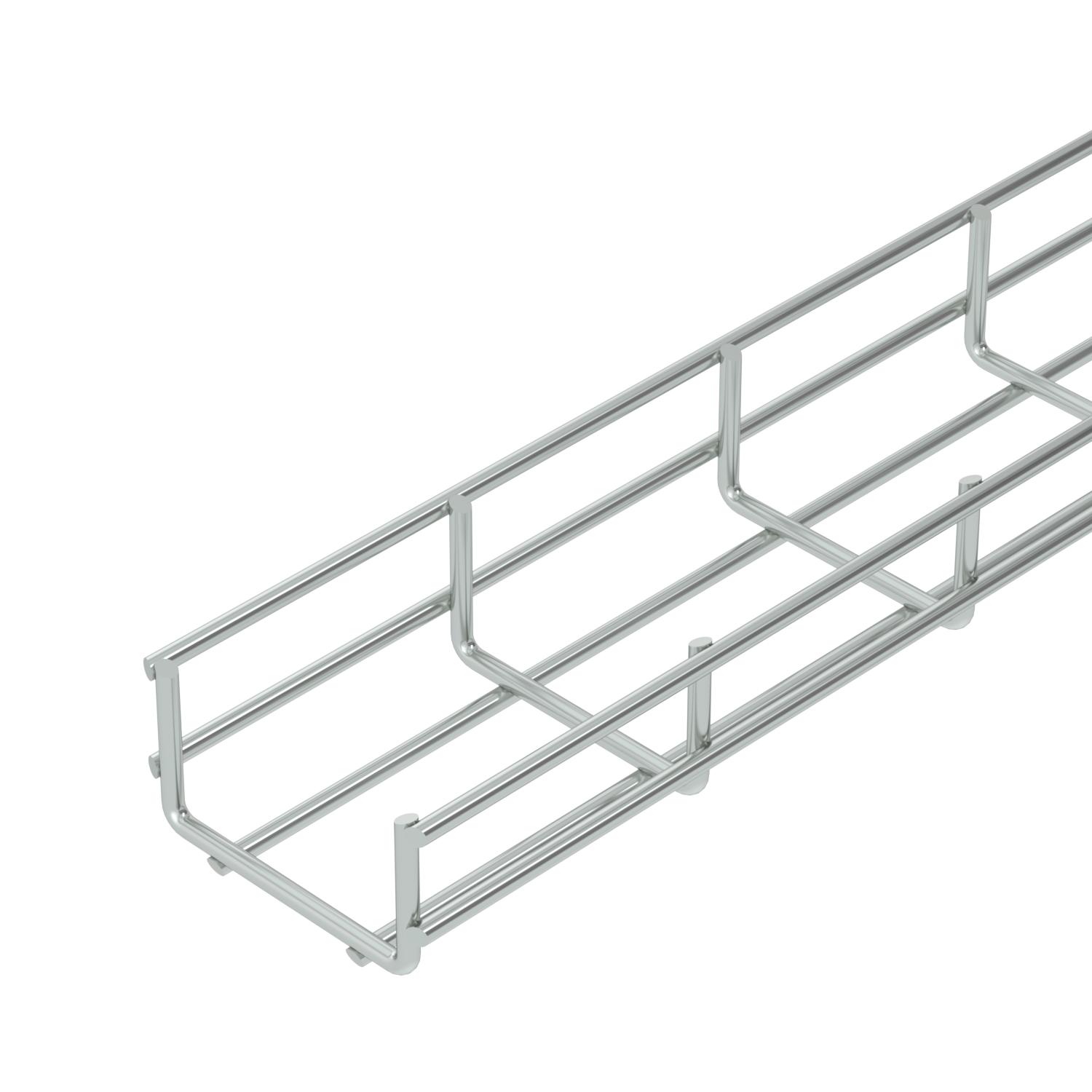

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

The grid dimension is 50 x 100 mm.

Stainless steel version on request.

Technical data

Colour	zinc
Connector version	Without connectors
Dimension	55x100x3000
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Profile shape	U-shaped

Rustproof steel, pickled	no
Surface	Electrogalvanised
Type of connector, cable support system	Screwed
Usable cross-section	4000 mm²
Usable cross-section	40 cm²
Wide-span version	no
Wire diameter	6 mm

Support spacing 1.0 m	2 kN/m
Support spacing 1.5 m	1,15 kN/m

Support spacing 2.0 m	0,75 kN/m
Support spacing 3.0 m	0,4 kN/m

CO2 Footprint (GWP) Cradle-to-Gate	3,2694 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	3,2694 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-21T00:00:00.000+0200

Technical data

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
SGR 55 100 G	3000 mm	100 mm	55 mm	6 mm	40 cm²	no	6005470	m	3 m
SGR 55 150 G	3000 mm	150 mm	55 mm	6 mm	63 cm²	no	6005472	m	3 m
SGR 55 200 G	3000 mm	200 mm	55 mm	6 mm	87 cm²	no	6005474	m	3 m
SGR 55 300 G	3000 mm	300 mm	55 mm	6 mm	129 cm²	no	6005476	m	3 m
SGR 55 400 G	3000 mm	400 mm	55 mm	6 mm	175 cm²	no	6005478	m	3 m
SGR 55 500 G	3000 mm	500 mm	55 mm	6 mm	220 cm²	no	6005480	m	3 m
SGR 55 600 G	3000 mm	600 mm	55 mm	6 mm	265 cm²	no	6005482	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Joint connector G	GUV 6 G	6016572	piece	20 piece
Unperforated cover FS	DRLU 100 FS	6052103	m	3 m

Products	Types	Item no.	Quantity	SSU
End cap	SGR KS OR	6003758	piece	500 piece
Separating retainer 45 FS	TSG 45 FS	6062033	m	3 m
Cover clamp, universal A2	DKU A2	6065600	piece	20 piece
Drop-out FS	KAB GR FS	6220139	piece	10 piece
