Heavy mesh cable tray SGR 155 FT

Item no. / Types

Length	3000 mm

Width

Height	155 mm

Wire diameter	6 mm

Usable cross-section

Maintain electrical functions	no

Product description

Product description

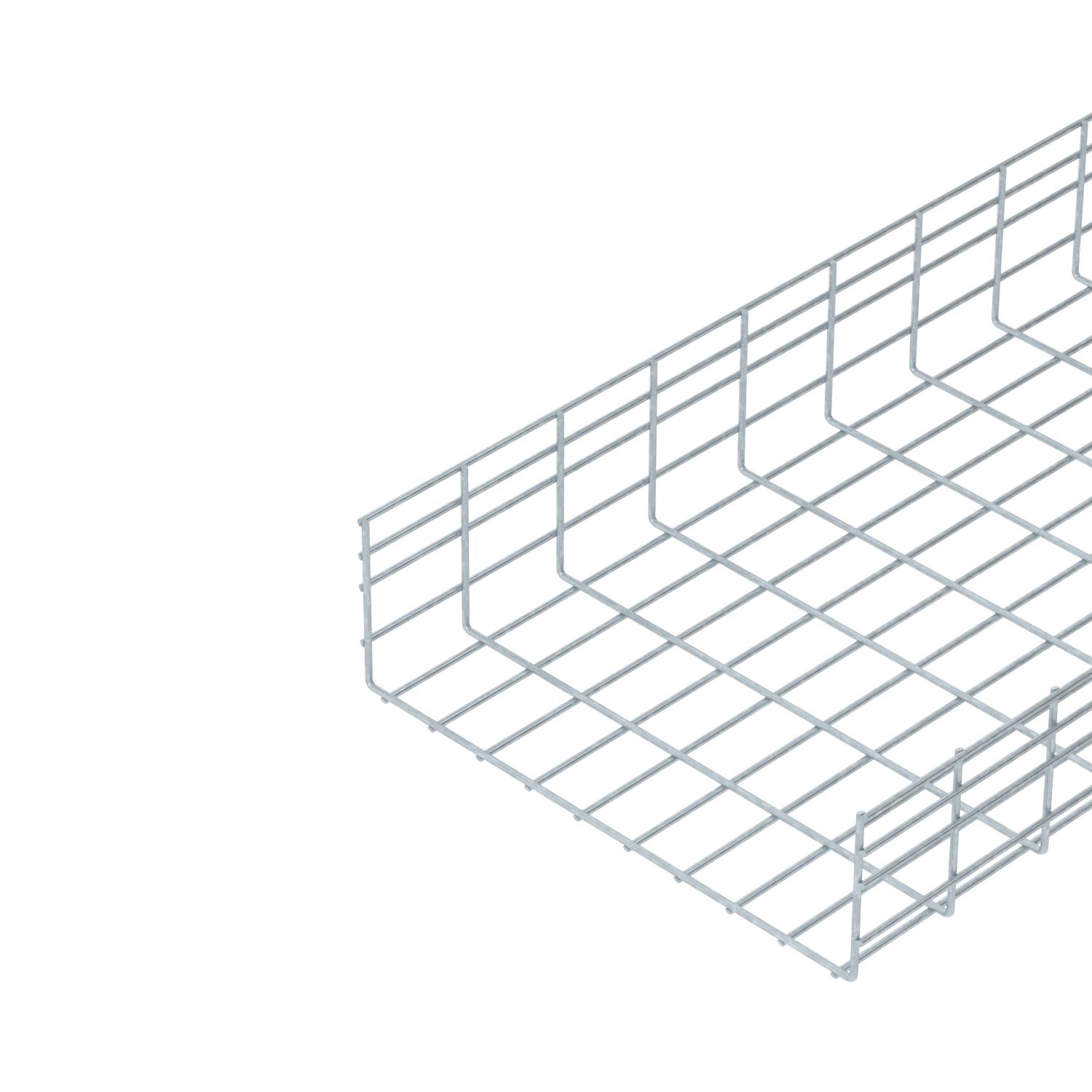

Mesh cable tray made of spot-welded steel wire of side height 155 mm.

Magnetic shield insulation without cover 15 dB, with cover 25 dB.

The grid width is 50 x 100 mm.

Technical data

Colour	zinc
Connector version	Without connectors
Dimension	155x500x3000
Integrated partition	Without
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Profile shape	U-shaped

Rustproof steel, pickled	no
Screwless connector	no
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	738 cm²
Usable cross-section	73800 mm²
Wide-span version	no
Wire diameter	6 mm

CO2 Footprint (GWP) Cradle-to-Gate	11,786 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	11,786 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
SGR 155 300 FT	3000 mm	300 mm	155 mm	6 mm	438 cm²	no	6003692	m	3 m
SGR 155 450 FT	3000 mm	450 mm	155 mm	6 mm	663 cm²	no	6003695	m	3 m
SGR 155 500 FT	3000 mm	500 mm	155 mm	6 mm	738 cm²	no	6003696	m	3 m
SGR 155 600 FT	3000 mm	600 mm	155 mm	6 mm	888 cm²	no	6003698	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Unperforated cover DD	DRLU 500 DD	6052668	m	3 m
Joint connector FT	GUV 6 FT	6016573	piece	20 piece

Products	Types	Item no.	Quantity	SSU
Barrier strip 135 DD	TSG 135 DD	6062338	m	3 m
Cover clamp, universal A2	DKU A2	6065600	piece	20 piece
Exit plate FT	KAB GR FT	6220142	piece	10 piece
End cap	SGR KS OR	6003758	piece	500 piece
