Joint cover Pure white; RAL 9010
morepic-1 morepic-2

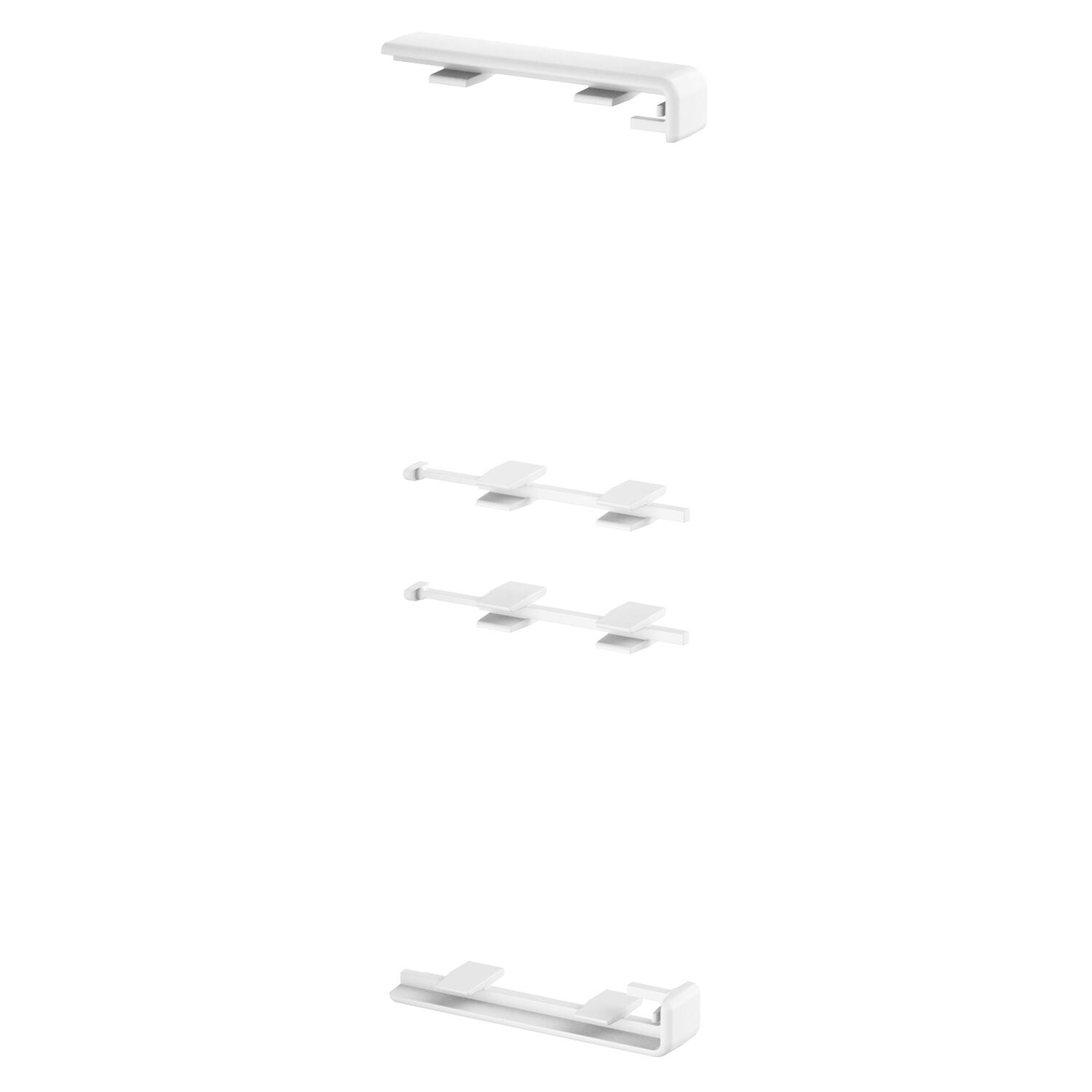

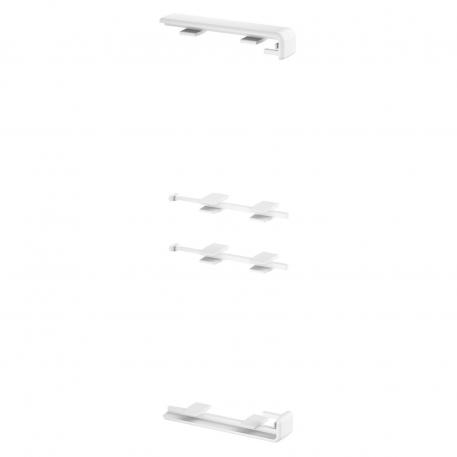

Joint cover

Item no. 6113340 | EAN 4012197435479

Pure white; RAL 9010
Product description
Product description
Joint cover for the bases of the Rapid 45-2 device installation trunking to hide cut edges and provide a perfect connection of the trunking segments. The joint covers are attached. Suitable for trunking width 100 mm and 165 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)
Technical data

Technical data

Colour Pure white; RAL 9010
Cover width 45 mm
Fastening type Lockable
for duct width 160 mm
for trunking height 53 mm
Material Polyvinylchloride
Product series Rapid 45®
Version for Trunking cut cover

Dimensions

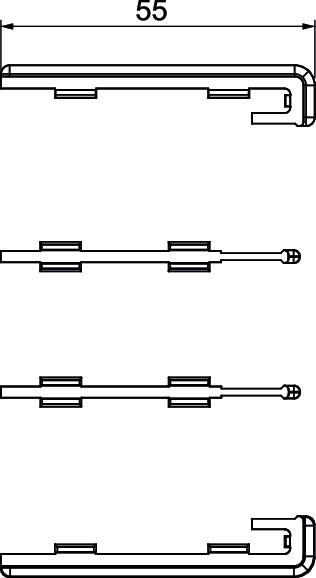

Length 55 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,0406 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,0406 kg CO₂e
Declared Unit Units
Declared Unit Quantity 1
Determination date of CO2 value 2025-05-27T00:00:00.000+0200
All types

All types

Types Colour Item no. Quantity SSU
GEK-KS45-3 Pure white; RAL 9010 6116163
6 piece
GK-KS45-3RW Pure white; RAL 9010 6113340
6 piece
Downloads

Download

EU declaration of conformity GK-KS45-3RW / 6113340 , 0.10MB , pdf
Download

Download

No invitation to tender text is available for this product.
