Junction box T100, closed, elevated cover
Item no. 2007732 | EAN 4012195985907
- Product description
-
Product descriptionClosed junction box for the connection of cables in indoor and protected outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting and on mounting panels. With the option of fastening inside and to mount via the corner domes. High cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
With hat profile rail.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650°C. Impact resistance IK07 according to DIN EN 50102.
Clear internal dimensions: 136x102x74 mm
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Cover Not transparent Cover fastening Screwed Dimension 150x116x83 Entry from rear yes Equipment Support rail Expandable yes Explosion-tested version no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Maintain electrical functions Without Material Polypropylene / polycarbonate Measured insulation voltage Vi 500 V Mounting type Wall/ceiling mounting Nominal voltage 500 V Permitted temperature range, max. 65 °C Permitted temperature range, min. -25 °C Protection rating IP66 Protection rating IK code IK07. Sealable yes Shape Rectangular Type of entry Cable Type of entry None Type of housing penetration Without Weatherproof no with lid yes With screening no Dimensions

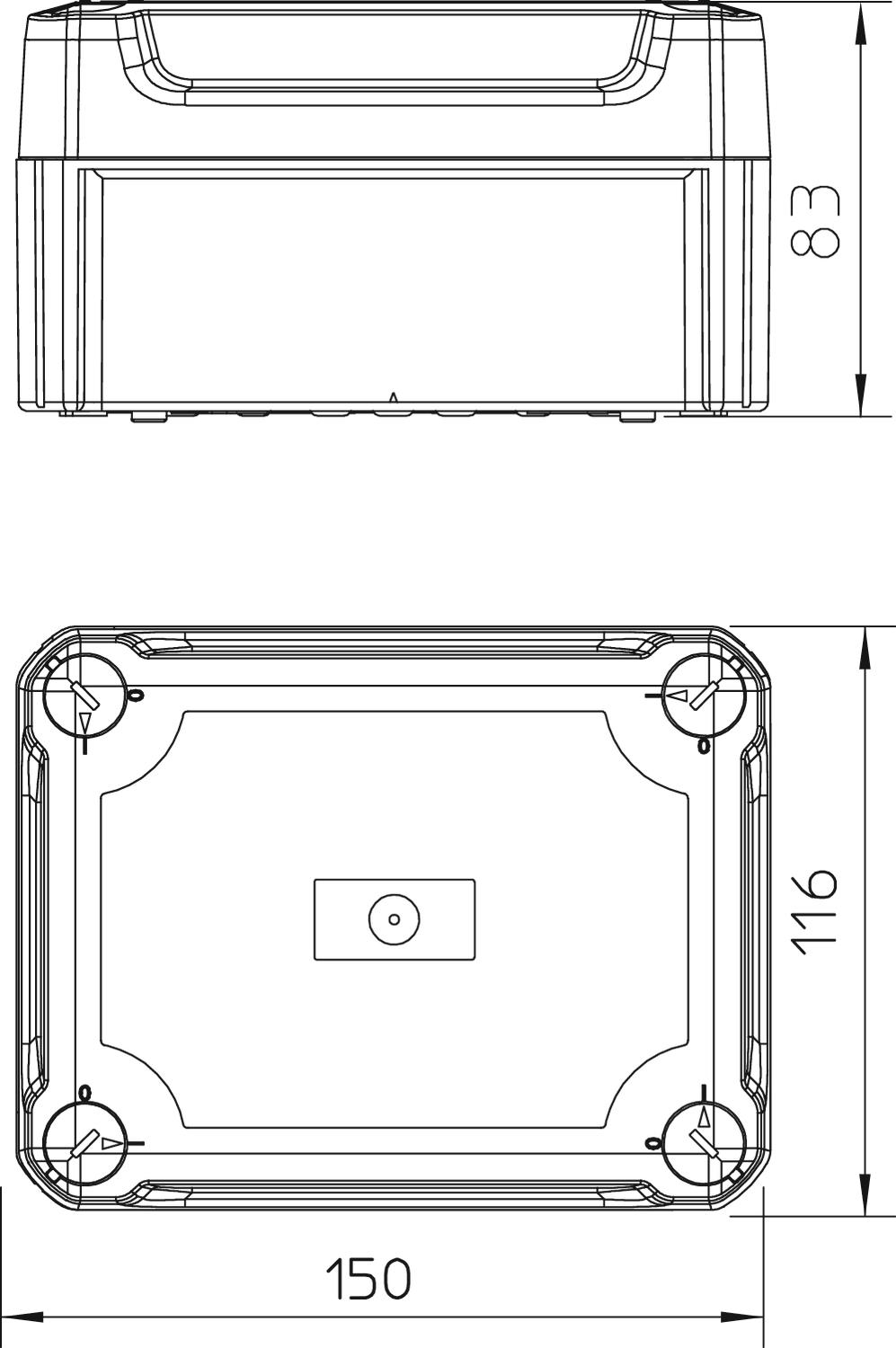

Clear internal dimensions 136x102x74 mm Height 83 mm Length 150 mm Width 116 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,0622 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,0622 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet T 100 OE HD LGR / 2007732 , 0.26MB , pdfBrochure FireBox , 2.61MB , pdfEU declaration of conformity T 100 OE HD LGR / 2007732 , 0.10MB , pdfUK Declaration of Conformity T 100 OE HD LGR / 2007732 , 0.09MB , pdfREACH Declaration of conformity T 100 OE HD LGR / 2007732 , 0.12MB , pdfRoHS Declaration of conformity T 100 OE HD LGR / 2007732 , 0.13MB , pdfLabel approval VDE symbol approval, T 100 , 0.32MB , pdf
