Junction box T160, closed, elevated cover
Item no. 2007734 | EAN 4012195985914
- Product description
-
Product descriptionClosed junction box for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside and to mount via the corner domes. High, transparent cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
With hat profile rail.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK04 according to DIN EN 50102.
Clear internal dimensions: 176x135x84 mm
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Cover Not transparent Cover fastening Screwed Dimension 190x150x94 Entry from rear yes Equipment Support rail Expandable yes Explosion-tested version no Fibre-glass reinforced yes Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Maintain electrical functions Without Material Polypropylene / polycarbonate Measured insulation voltage Vi 500 V Mounting type Wall/ceiling mounting Nominal voltage 500 V Permitted temperature range, max. 65 °C Permitted temperature range, min. -25 °C Protection rating IP66 Protection rating IK code IK04 Sealable yes Shape Rectangular Type of entry None Type of entry Cable Type of housing penetration Without Weatherproof no with lid yes With screening no Dimensions

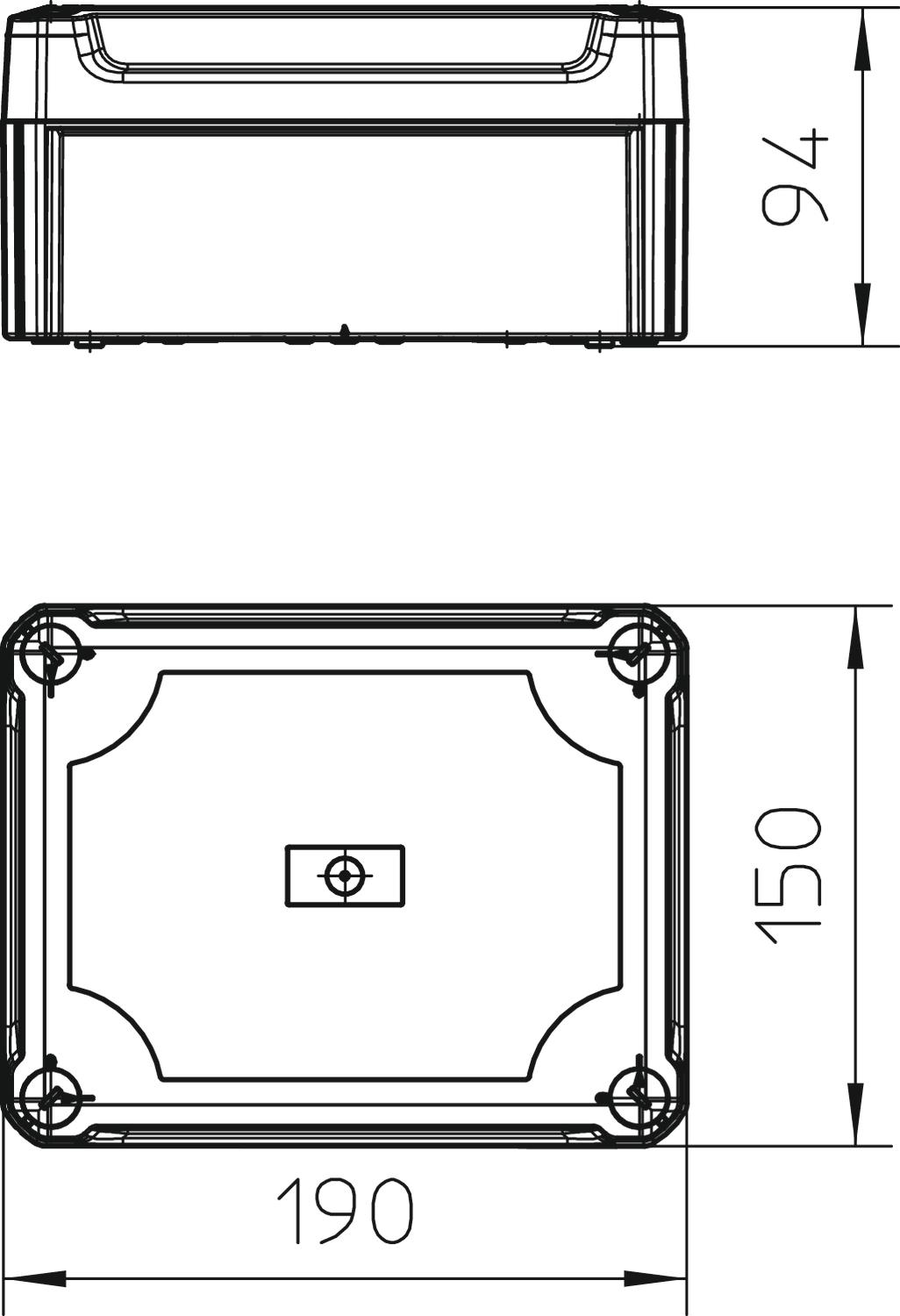

Clear internal dimensions 176x135x84 mm Height 94 mm Length 190 mm Width 150 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,595 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,595 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet T 160 OE HD LGR / 2007734 , 0.25MB , pdfBrochure FireBox , 2.61MB , pdfEU declaration of conformity T 160 OE HD LGR / 2007734 , 0.10MB , pdfUK Declaration of Conformity T 160 OE HD LGR / 2007734 , 0.09MB , pdfREACH Declaration of conformity T 160 OE HD LGR / 2007734 , 0.12MB , pdfRoHS Declaration of conformity T 160 OE HD LGR / 2007734 , 0.13MB , pdfLabel approval VDE symbol approval, T 160 , 0.34MB , pdf
