Large washer, A2

Item no. / Types

Dimension d min.

Dimension d

Dimension h	1.5 mm

Thread

Product description

Product description

Washer of particularly large outer diameter. In the case of connections on the MS 41 mounting rail, we recommend the external diameter of 40 mm.

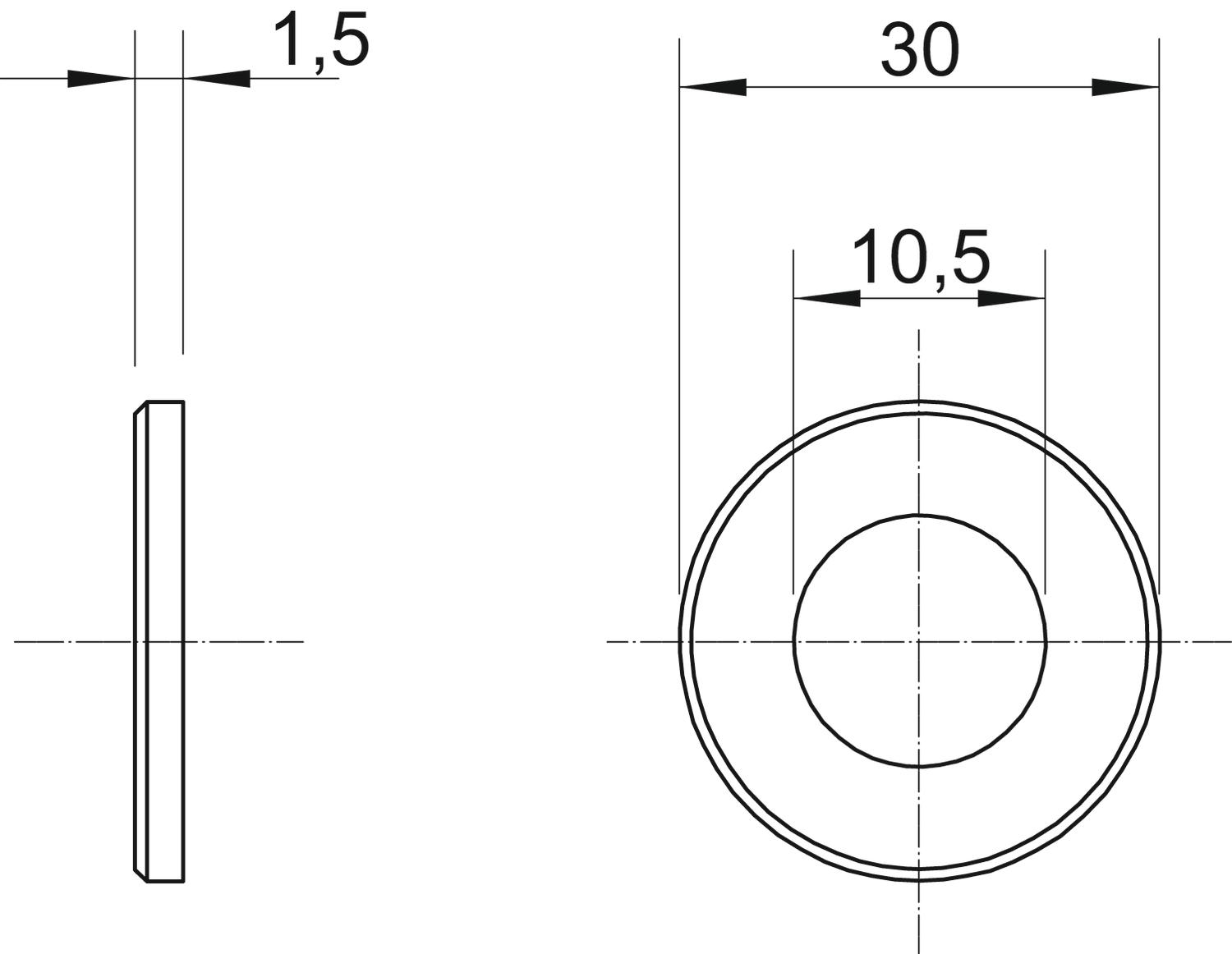

Technical data

Dimension d	10,5 mm
Dimension d max.	30 mm

Dimension d min.	30 mm
Dimension h	1,5 mm

CO2 Footprint (GWP) Cradle-to-Gate	0,0287 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	0,0287 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
WS M8 D20 A2	20 mm	8.4 mm	1.5 mm	M8	3403125	piece	100 piece
WS M8 D25 A2	25 mm	8.4 mm	1.5 mm	M8	3403135	piece	100 piece
WS M8 D40 A2	40 mm	8.5 mm	1.5 mm	M8	3403145	piece	100 piece
WS M10 D30 A2	30 mm	10.5 mm	1.5 mm	M10	3403155	piece	100 piece
WS M10 D40 A2	40 mm	10.5 mm	1.5 mm	M10	3403175	piece	100 piece
