Large washer G 25 | 6.4 | 1.2 | M6
morepic-1 morepic-2

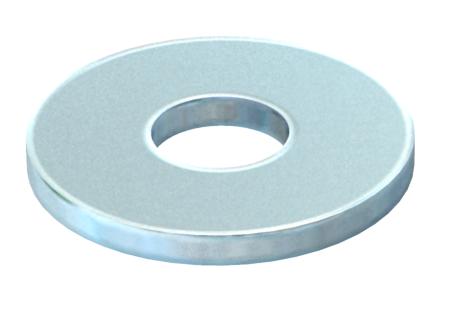

Large washer G

Item no. 3403084 | EAN 4012195868095

Product description
Product description
Washer of particularly large outer diameter.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Dimension M6,Ø25mm
External diameter 25 mm
Faceted no
Hardened no
Inner diameter 6,4 mm
Material Steel
Material thickness 1,2 mm
Plate thickness 0,05 in
Surface Electrogalvanised
Thread M6

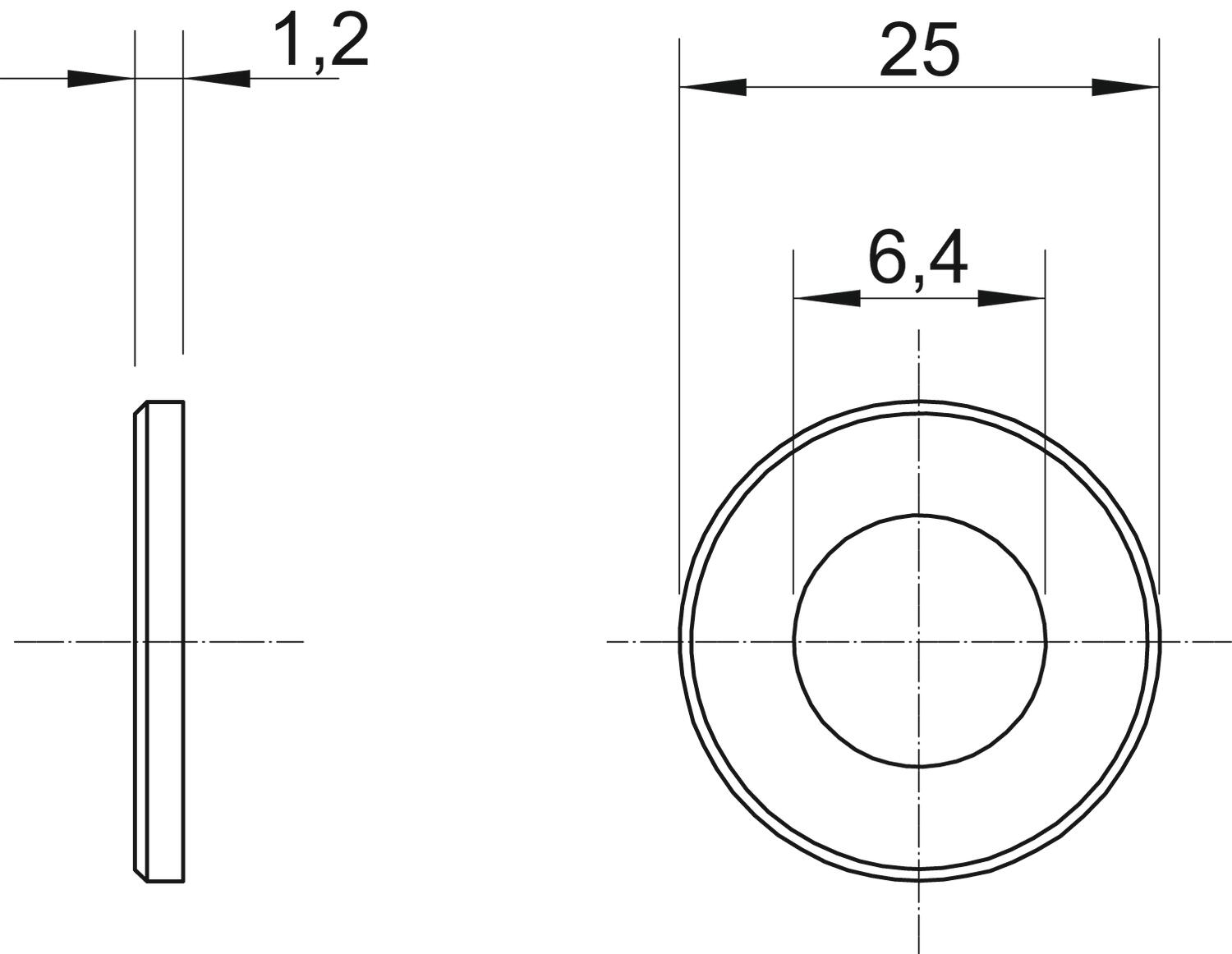

Dimensions

Dimension d 6,4 mm
Dimension d max. 25 mm
Dimension d min. 25 mm
Dimension h 1,2 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,0107 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,0107 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no. Quantity SSU
WS M4 G15 G 15 mm 4.3 mm 1.2 mm M4 3403025
100 piece
WS M5 G20 G 20 mm 5.3 mm 1.2 mm M5 3403041
100 piece
WS M6 G20 G 20 mm 6.4 mm 1.25 mm M6 3403076
100 piece
WS M6 G25 G 25 mm 6.4 mm 1.2 mm M6 3403084
100 piece
WS M6 G30 G 30 mm 6.4 mm 1.3 mm M6 3403092
100 piece
WS M8 G20 G 20 mm 8.4 mm 1.25 mm M8 3403122
100 piece
WS M8 G25 G 25 mm 8.4 mm 1.2 mm M8 3403130
100 piece
WS M10 G30 G 30 mm 10.5 mm 1.5 mm M10 3403165
100 piece
