Locknut, metric thread, silver grey M63 x 1,5 | 75
morepic-1 morepic-2 video-1 video-2

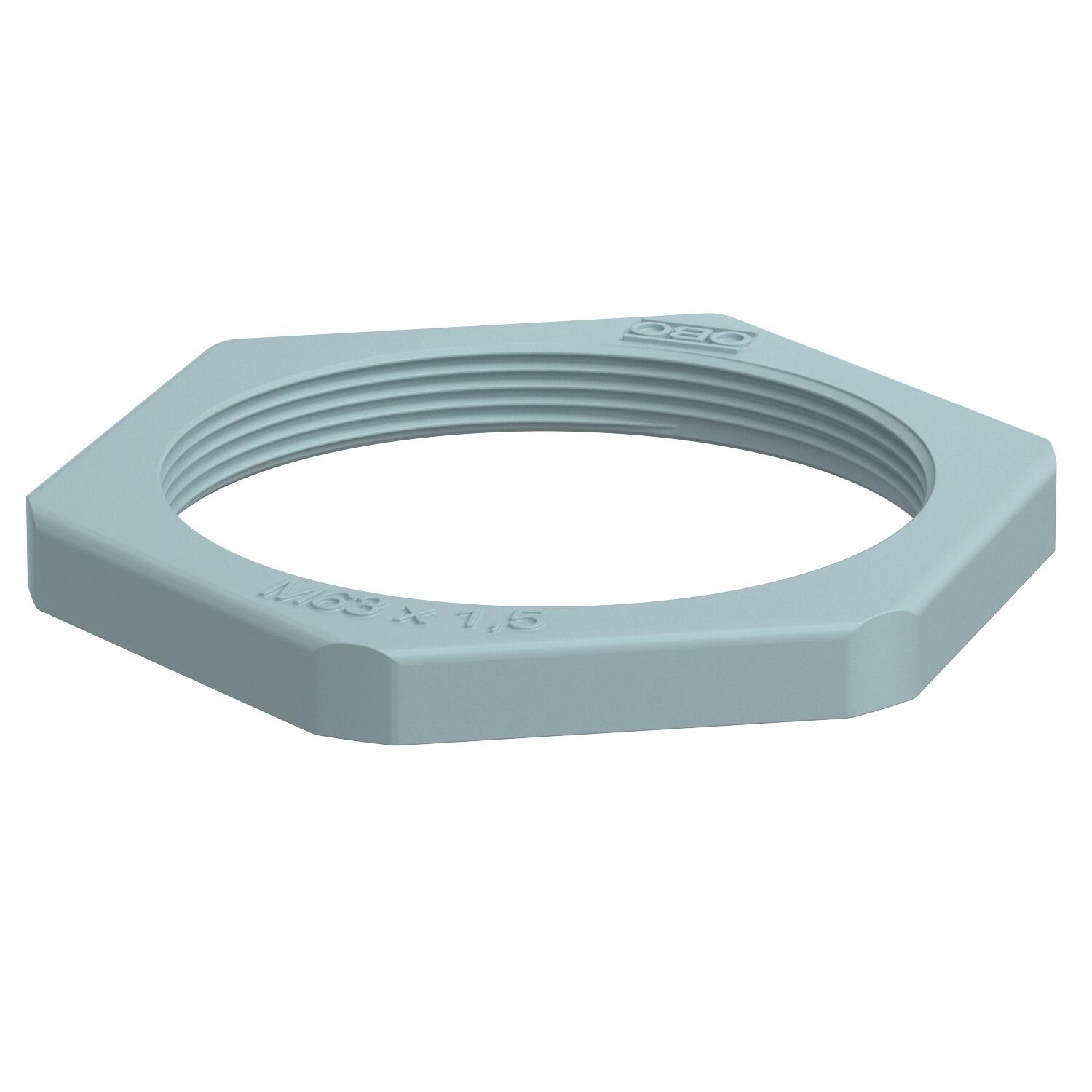

Locknut, metric thread, silver grey

Item no. 2048825 | EAN 4012195088936

Product description
Product description
Locknut to DIN 46319, with metric thread IEC 423.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Thread metric
  • CO₂ footprint (PCF)
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0552 kg CO₂e / 1 Piece
Colour Silver grey; RAL 7001

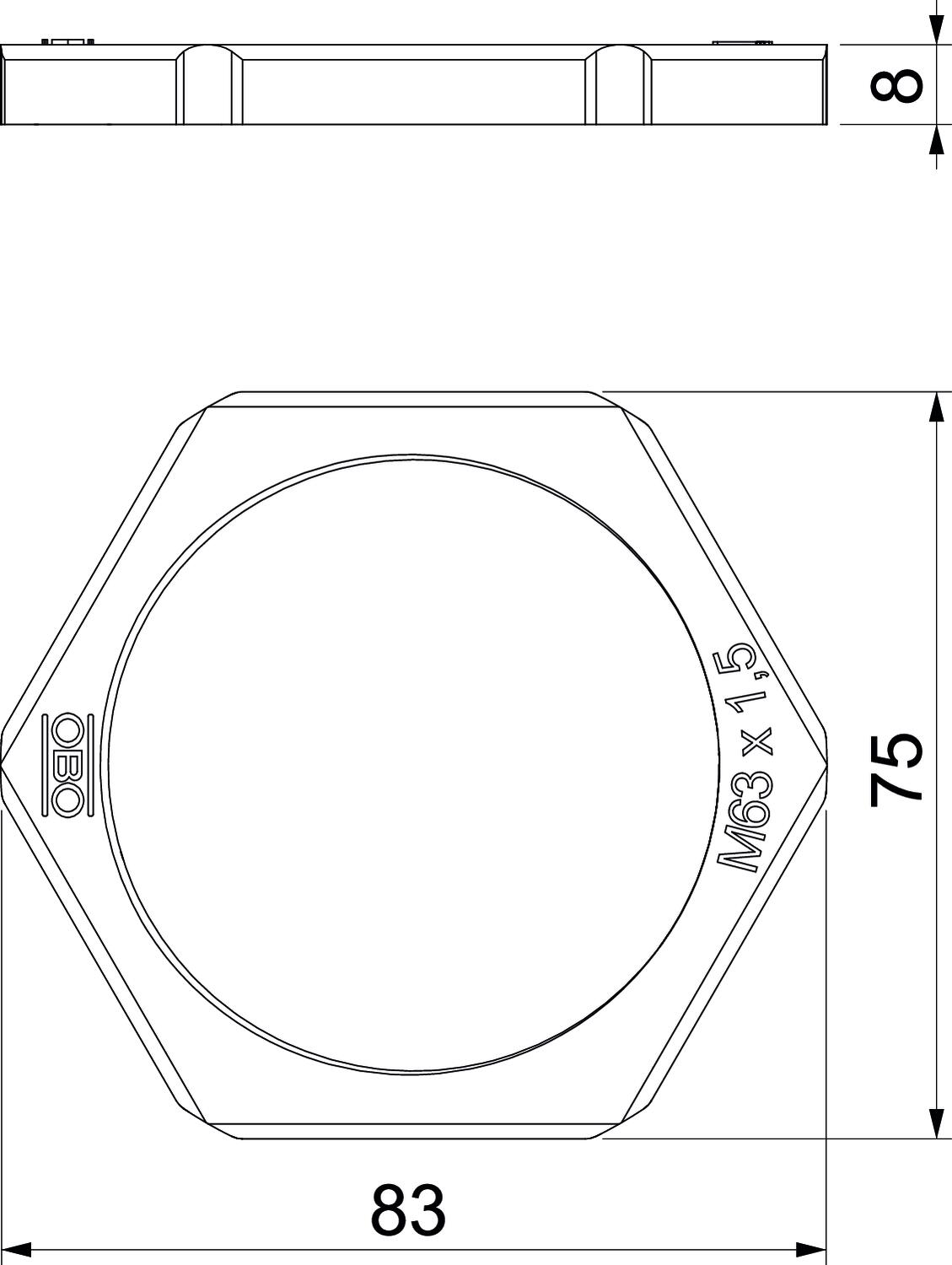

Dimension M63
Dimension E 83 mm
Dimension L 8 mm
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant no
Material Polyamide
Nominal thread size metric/PG 63
Thread M63 x 1,5
Thread type Metric
WAF 75
All types

All types

Types Thread WAF Item no. Quantity SSU
116 M12 SGR PA M12 x 1,5 17 2048752
100 piece
116 M16 SGR PA M16 x 1,5 22 2048760
100 piece
116 M32 SGR PA M32 x 1,5 41 2048795
50 piece
116 M40 SGR PA M40 x 1,5 50 2048809
25 piece
116 M50 SGR PA M50 x 1,5 60 2048817
25 piece
116 M63 SGR PA M63 x 1,5 75 2048825
25 piece
