Magic® FS straight connector set

Item no. / Types

Width

Height	60 mm

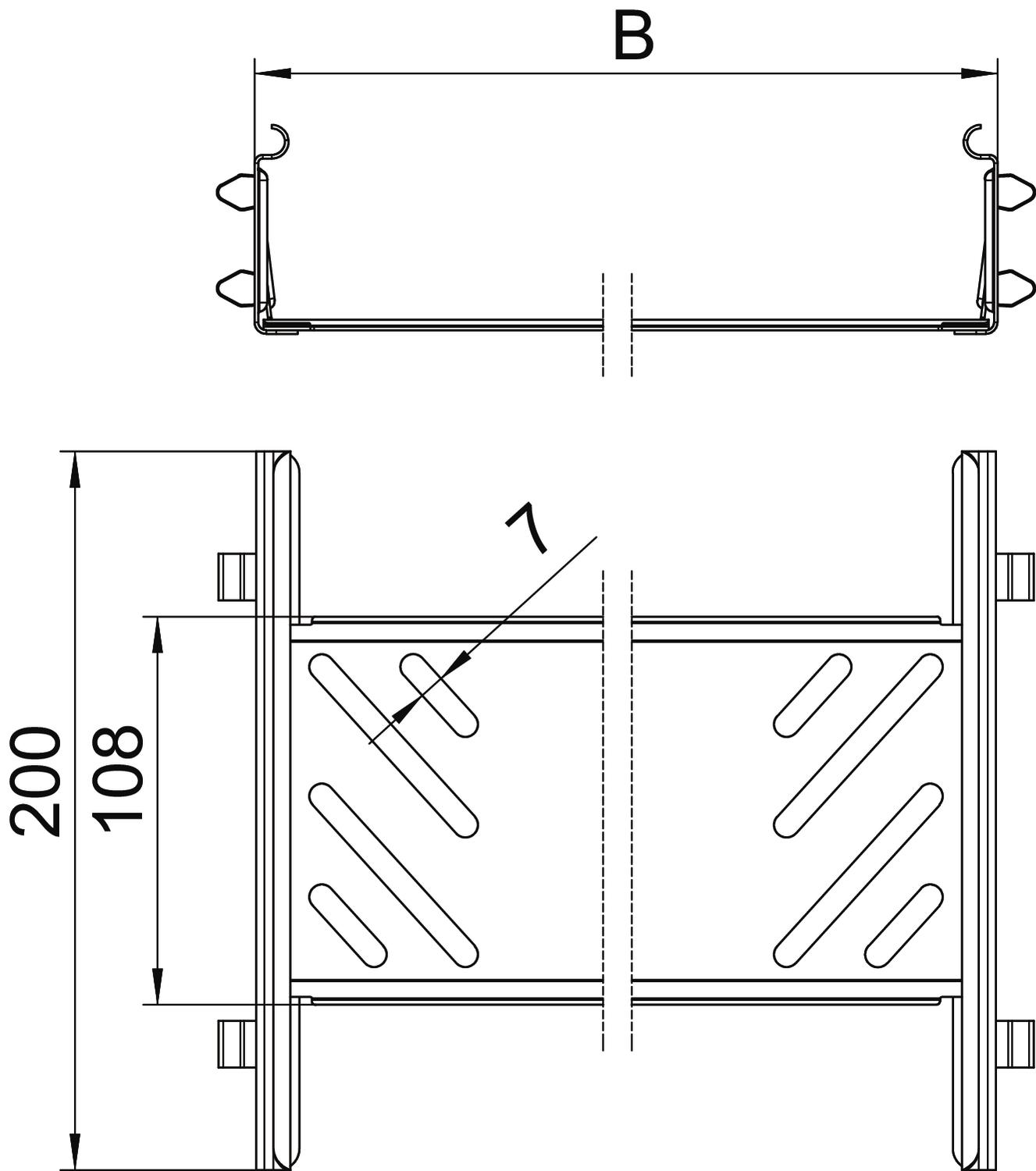

Dimension B

Plate thickness	1 mm

Colour	zinc

Product description

Product description

Cable tray connector with quick fastening for the screwless connection of perforated cable trays with a side height of 60 mm.

The optimised design means that the connector can be used to create radii and as a length compensation piece for large temperature deviations.

Technical data

Adjustable connector, horizontal	no
Articulated connector, vertical	no
Colour	zinc
Connection type	Screwless connector
Dimension	60x100x200
Dimension	60x100
Maintain electrical functions	no
Material	Steel

Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for cable tray system height	60 mm
Suitable for mesh cable tray	no
Surface	Strip galvanised
Version for	Straight connector

CO2 Footprint (GWP) Cradle-to-Gate	1,1529 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	1,1529 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Width	Height	Dimension B	Plate thickness	Colour	Item no.	Quantity	SSU
KTSMV 610 FS	100 mm	60 mm	100 mm	1 mm	zinc	6068914	piece	1 piece
KTSMV 615 FS	150 mm	60 mm	150 mm	1 mm	zinc	6068916	piece	1 piece
KTSMV 620 FS	200 mm	60 mm	200 mm	1 mm	zinc	6068918	piece	1 piece
KTSMV 630 FS	300 mm	60 mm	300 mm	1 mm	zinc	6068920	piece	1 piece
KTSMV 640 FS	400 mm	60 mm	400 mm	1 mm	zinc	6068922	piece	1 piece
KTSMV 650 FS	500 mm	60 mm	500 mm	1 mm	zinc	6068924	piece	1 piece
KTSMV 660 FS	600 mm	60 mm	600 mm	1 mm	zinc	6068926	piece	1 piece
