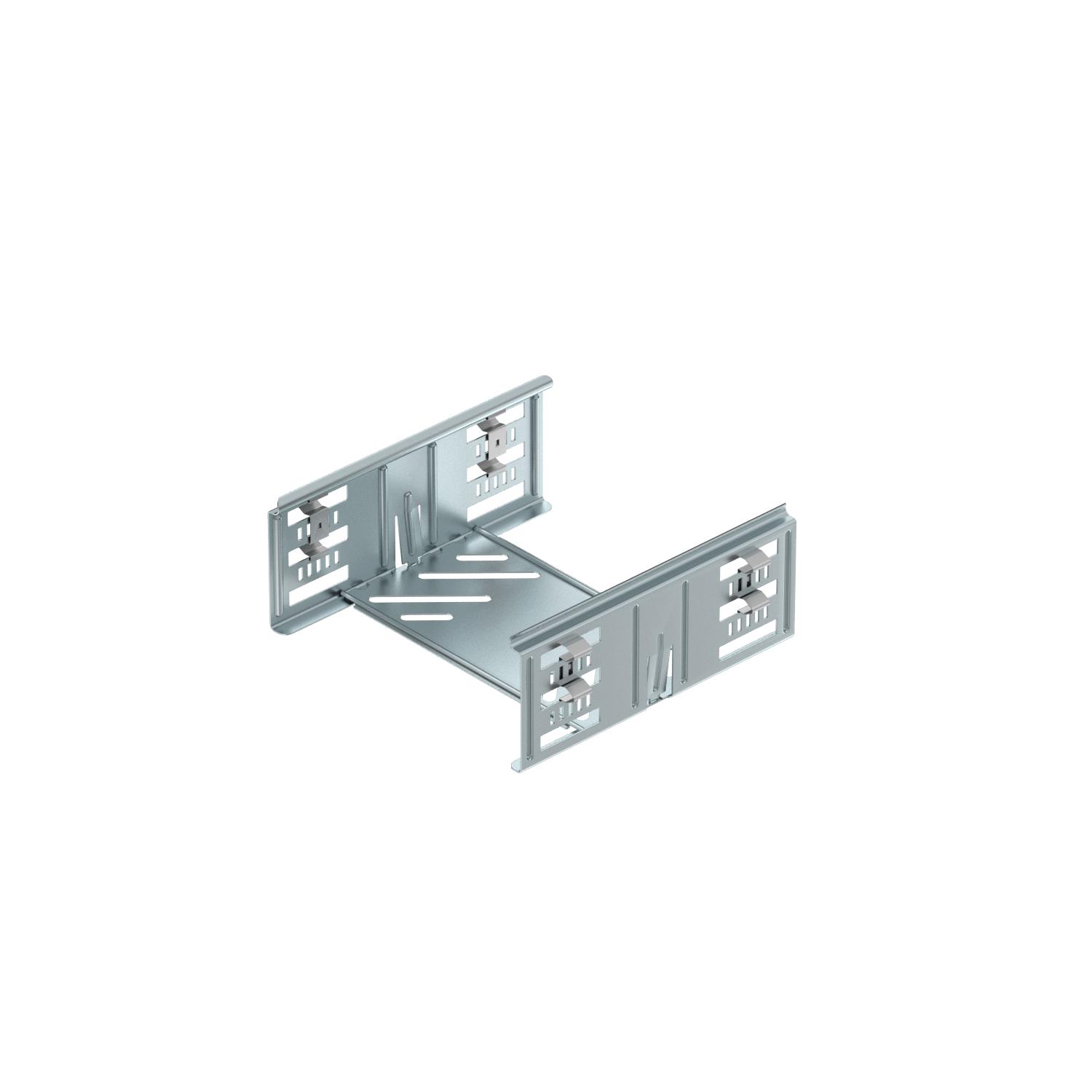

Magic straight connector set FS

Item no. / Types

Width

Height	85 mm

Dimension B

Plate thickness	1 mm

Colour	zinc

Product description

Product description

Cable tray connector with quick fastening for the screwless connection of perforated cable trays with a side height of 85 mm.

The optimised design means that the connector can be used to create radii and as a length compensation piece for large temperature deviations.

Technical data

Adjustable connector, horizontal	no
Articulated connector, vertical	no
Colour	zinc
Connection type	Screwless connector
Dimension	85x200x200
Dimension	85x200
Maintain electrical functions	no
Material	Steel

Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for cable tray system height	85 mm
Suitable for mesh cable tray	no
Surface	Strip galvanised
Version for	Straight connector

Dimension B	200 mm
Height	85 mm

Length	200 mm
Width	200 mm

CO2 Footprint (GWP) Cradle-to-Gate	1,6167 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	1,6167 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Width	Height	Dimension B	Plate thickness	Colour	Item no.	Quantity	SSU
KTSMV 810 FS	100 mm	85 mm	100 mm	1 mm	zinc	6069002	piece	1 piece
KTSMV 820 FS	200 mm	85 mm	200 mm	1 mm	zinc	6069006	piece	1 piece
KTSMV 830 FS	300 mm	85 mm	300 mm	1 mm	zinc	6069008	piece	1 piece
KTSMV 840 FS	400 mm	85 mm	400 mm	1 mm	zinc	6069010	piece	1 piece
KTSMV 850 FS	500 mm	85 mm	500 mm	1 mm	zinc	6069012	piece	1 piece
KTSMV 860 FS	600 mm	85 mm	600 mm	1 mm	zinc	6069014	piece	1 piece
