On-floor branch trunking 2400 | 250 | 40 | 81
morepic-1 morepic-2

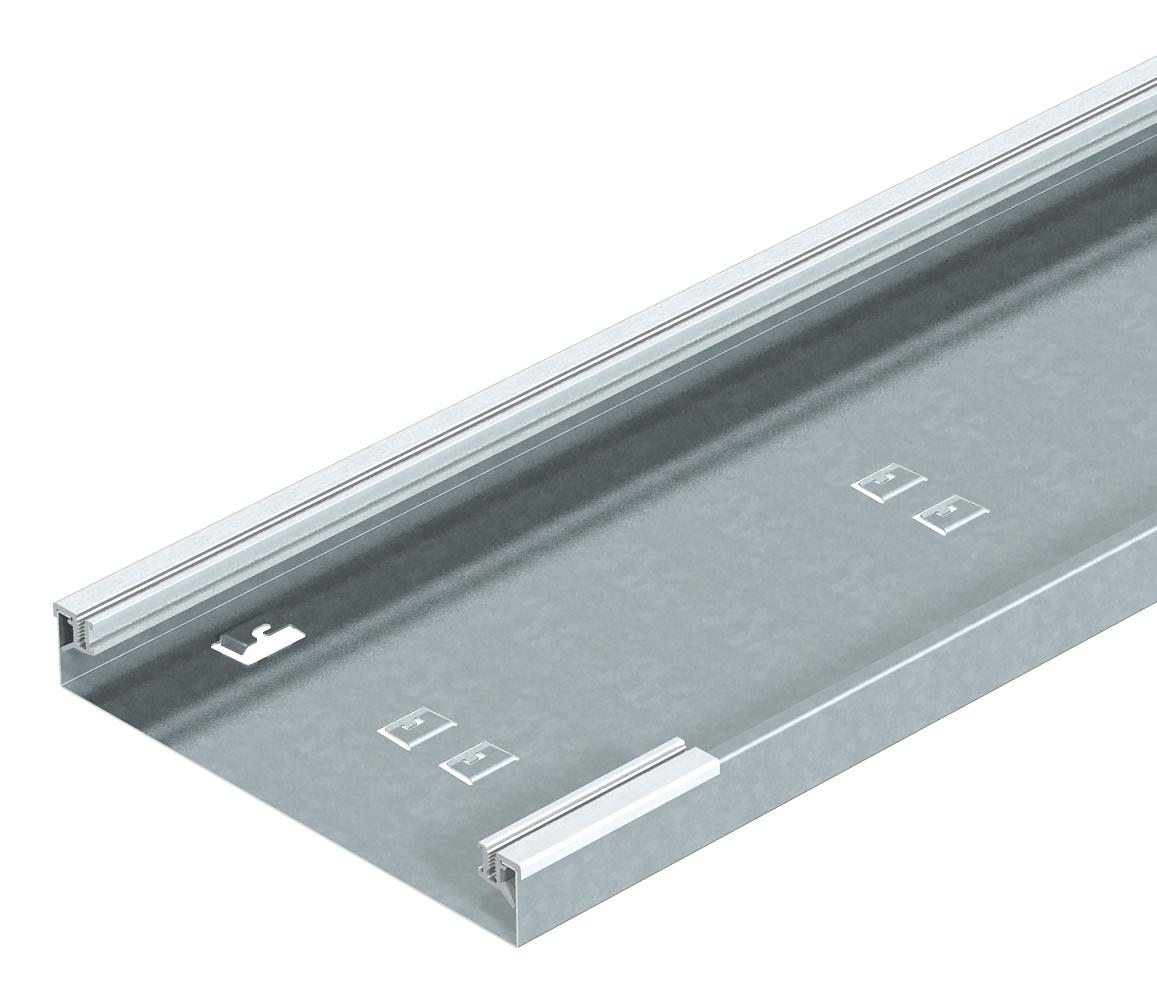

On-floor branch trunking

Item no. 7404882 | EAN 4012195101444

2400 mm
40 mm
Product description
Product description
Onfloor junction trunking base for blank/mounting lid with slope on both sides, free on floor for mounting, with plug-fit aluminium side profiles for layering and fixing the trunking lid. Trunking height suitable for installation of Telitanks.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

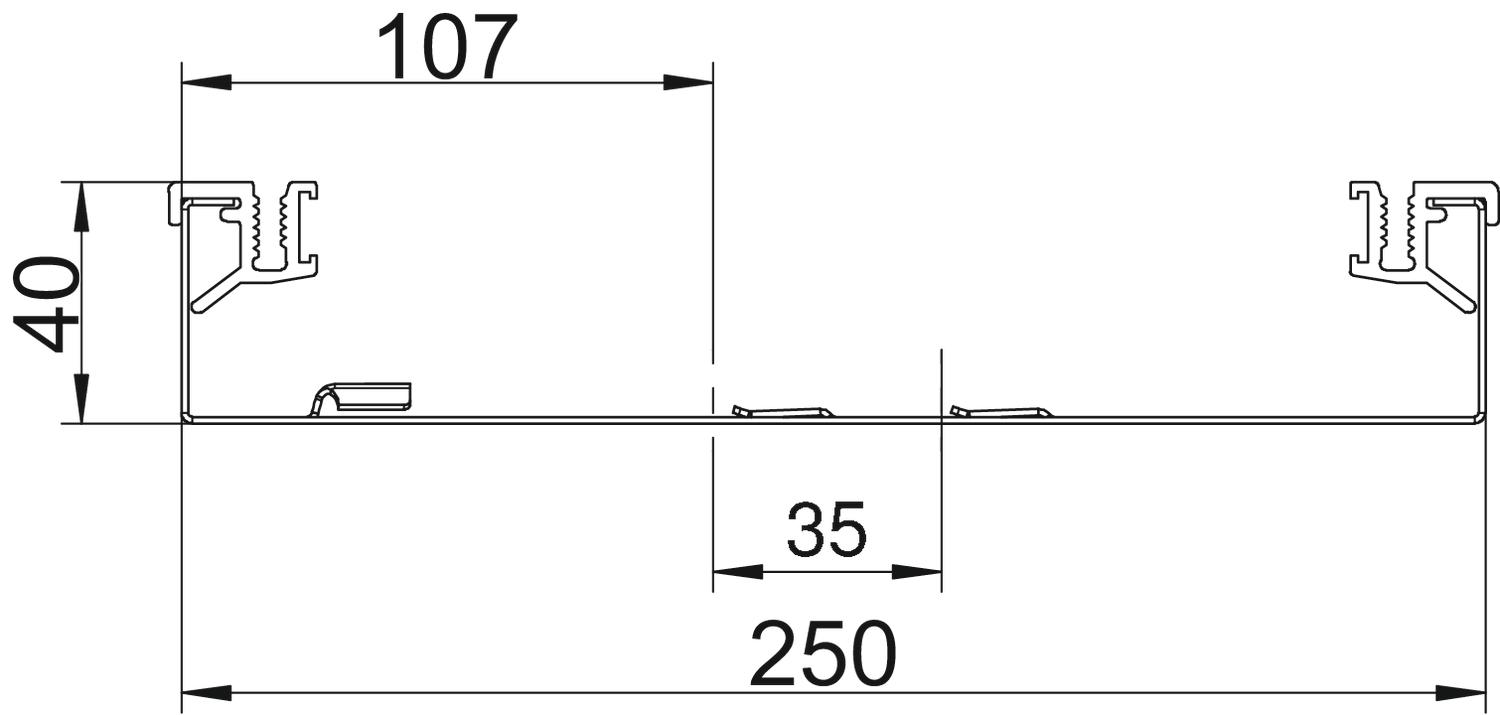

Cross-section, draw 3 3571 mm²
Cross-section, draw a 3430 mm²
Cross-section, draw b 1120 mm²
Dimension 2400x250x40
Dimension B 250 mm
Dimension b 250 mm
Dimension h 40 mm
Height 40 mm
Length 2400 mm
Material Steel
Number of compartments 3 St.
Number of insertable partitions 2
Plate thickness, base 1 mm
Separating retainer fastening Plug
Suitable for Cover sloping on both sides
Surface Strip galvanized
Usable cross-section 81 cm²
Width 250 mm
With separating retainer no
All types

All types

Types Length Width Height Usable cross-section Item no. Quantity SSU
AIKA U 15040 2400 mm 150 mm 40 mm 45 cm² 7404874
2,4 m
AIKA U 25040 2400 mm 250 mm 40 mm 81 cm² 7404882
2,4 m
Downloads

EU declaration of conformity AIKA U 25040 / 7404882 , 0.11MB , pdf
