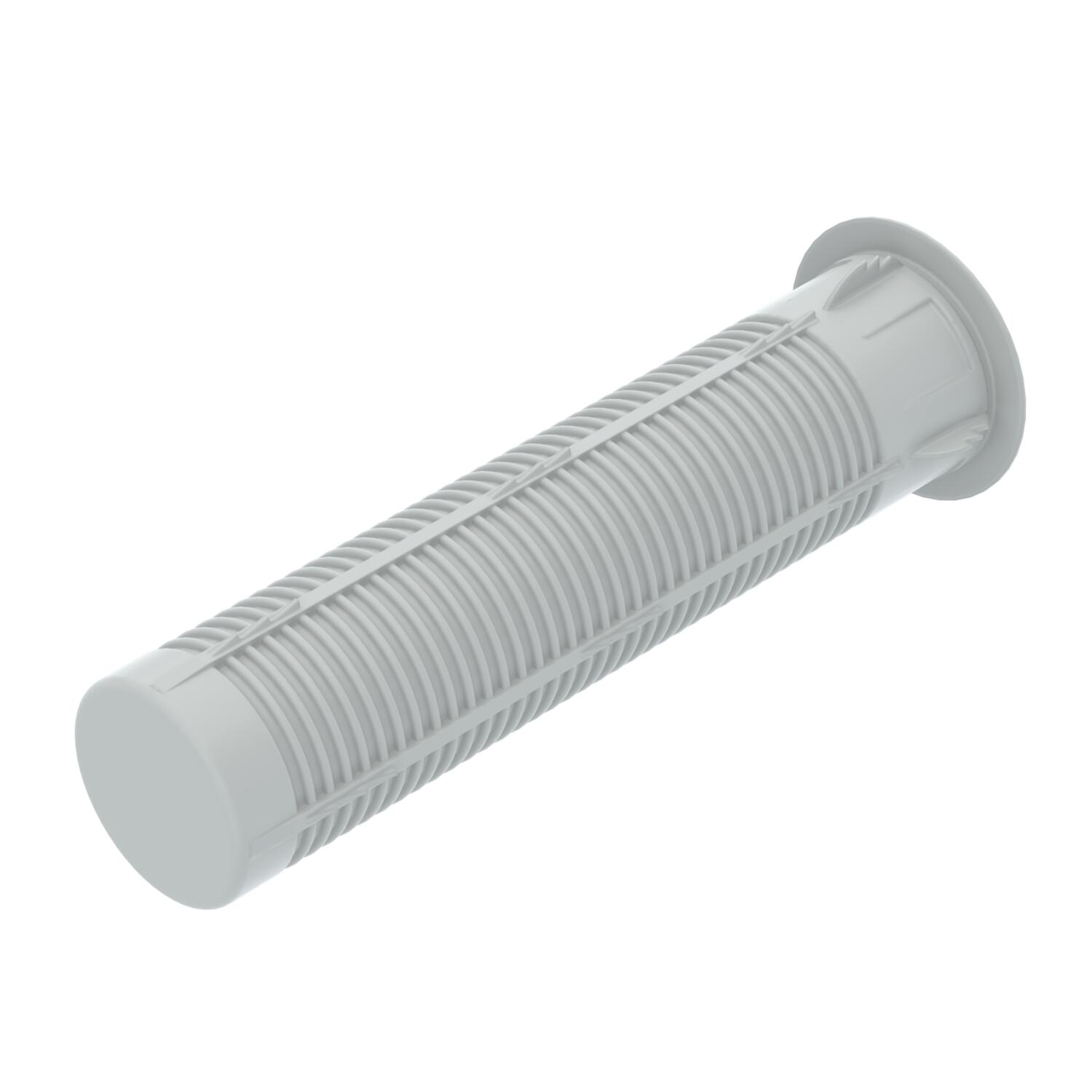

Plastic perforated sleeve
Item no. 7205248 | EAN 4012197507008
- Product description
-
Product descriptionThe plastic wire sleeve is a supplement to the anchor rod or internal thread sleeve and is used to install components on masonry.
The plastic perforated sleeve VM-SH 12x80 is mounted using the anchor rod VMU-A 8x110.
The plastic perforated sleeve VM-SH 16x85 is mounted with the anchor rods VMU-A 10-130 and VMU-A 10-150 or with the internal threaded sleeve VMU-IG M6x80.
The plastic perforated sleeve VM-SH 16x130 is mounted using the anchor rod VMU-A 10-150.
The plastic perforated sleeve VM-SH 20x85 is mounted using the anchor rod VMU-A 12x155 or the internal threaded sleeves VMU-IG M8x80 and VMU-IG M10x80.
- Technical data
-
Technical data

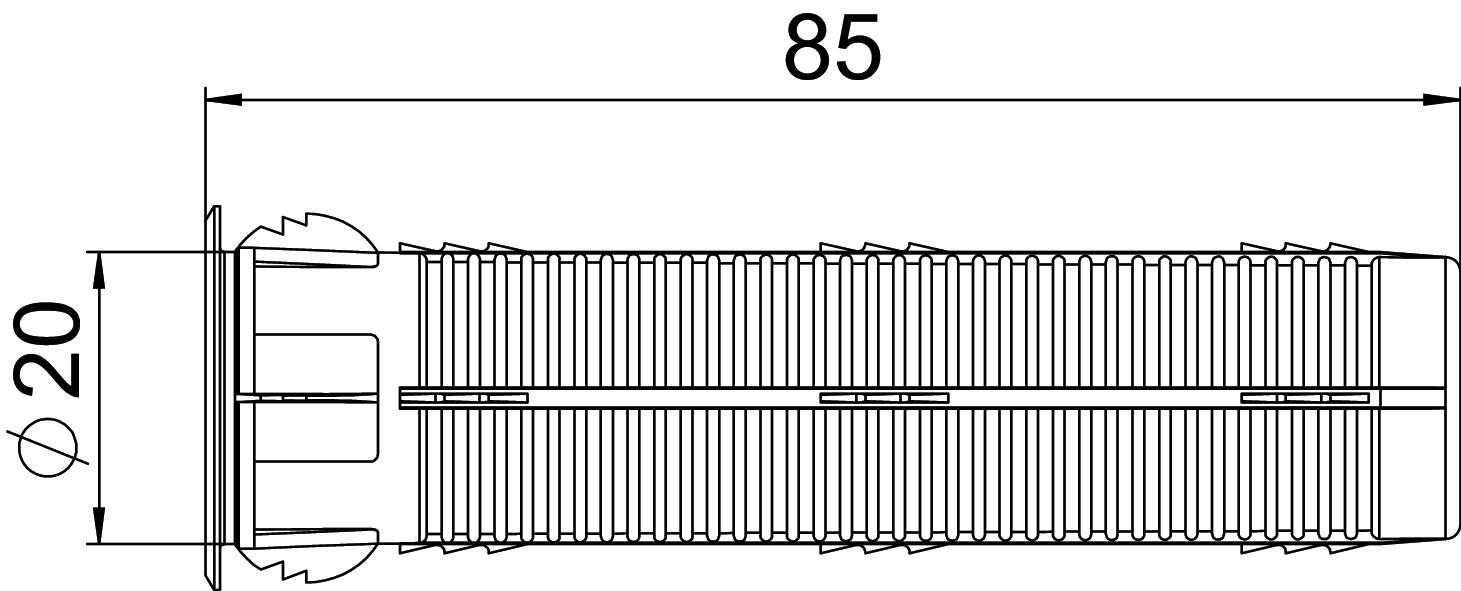

Colour Beige; RAL 1001 Dimension 85 x 26 Dimension D 20 mm Dimension L 85 mm Drill hole depth 95 mm Drill hole diameter, max. 20 mm Length 85 mm Material Polypropylene/polyethylene Self-tapping no Version for For pushing in With flange yes - All types
- Downloads
-
Data sheet FIS H 20x85 K / 7205248 , 0.16MB , pdfEU declaration of conformity FIS H 20x85 K / 7205248 , 0.11MB , pdfMounting instructions Injection mortar FIS V Plus , 1.93MB , pdfNo invitation to tender text is available for this product.
