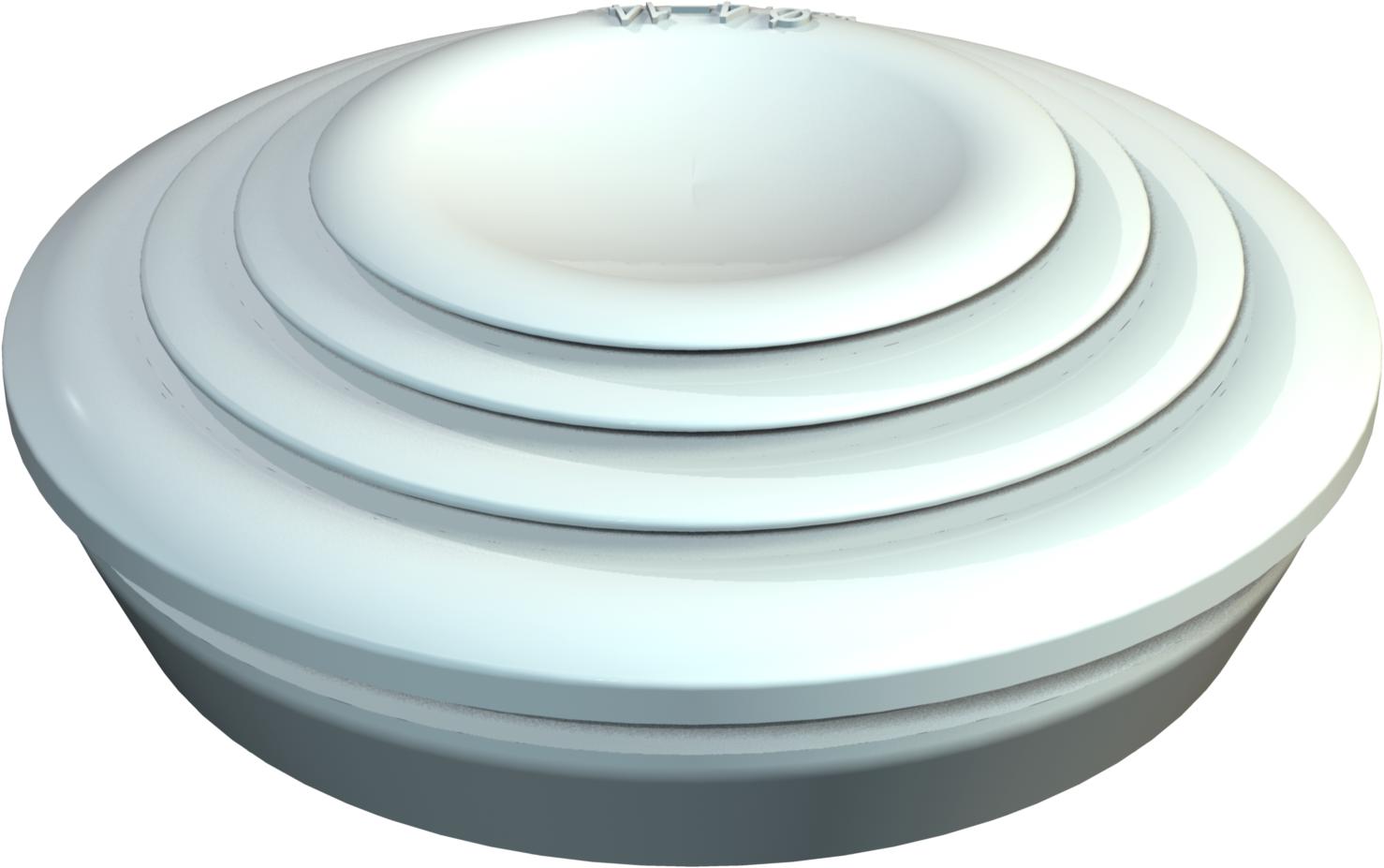

Plug-in seal EDK light grey
Item no. 2011646 | EAN 4012195246978
- Product description
-
Product descriptionThe plug-in seal can be cut back to suit the relevant cable diameter.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension Ø32/5-25 for diameter, max. 25 mm for diameter, min. 5 mm for wall thickness, max. 2,2 mm for wall thickness, min. 2,2 mm Halogen-free yes Material Thermoplastic elastomer Nominal diameter 32 mm Protection rating IP55 Size M32 Version for Cuttable Dimensions

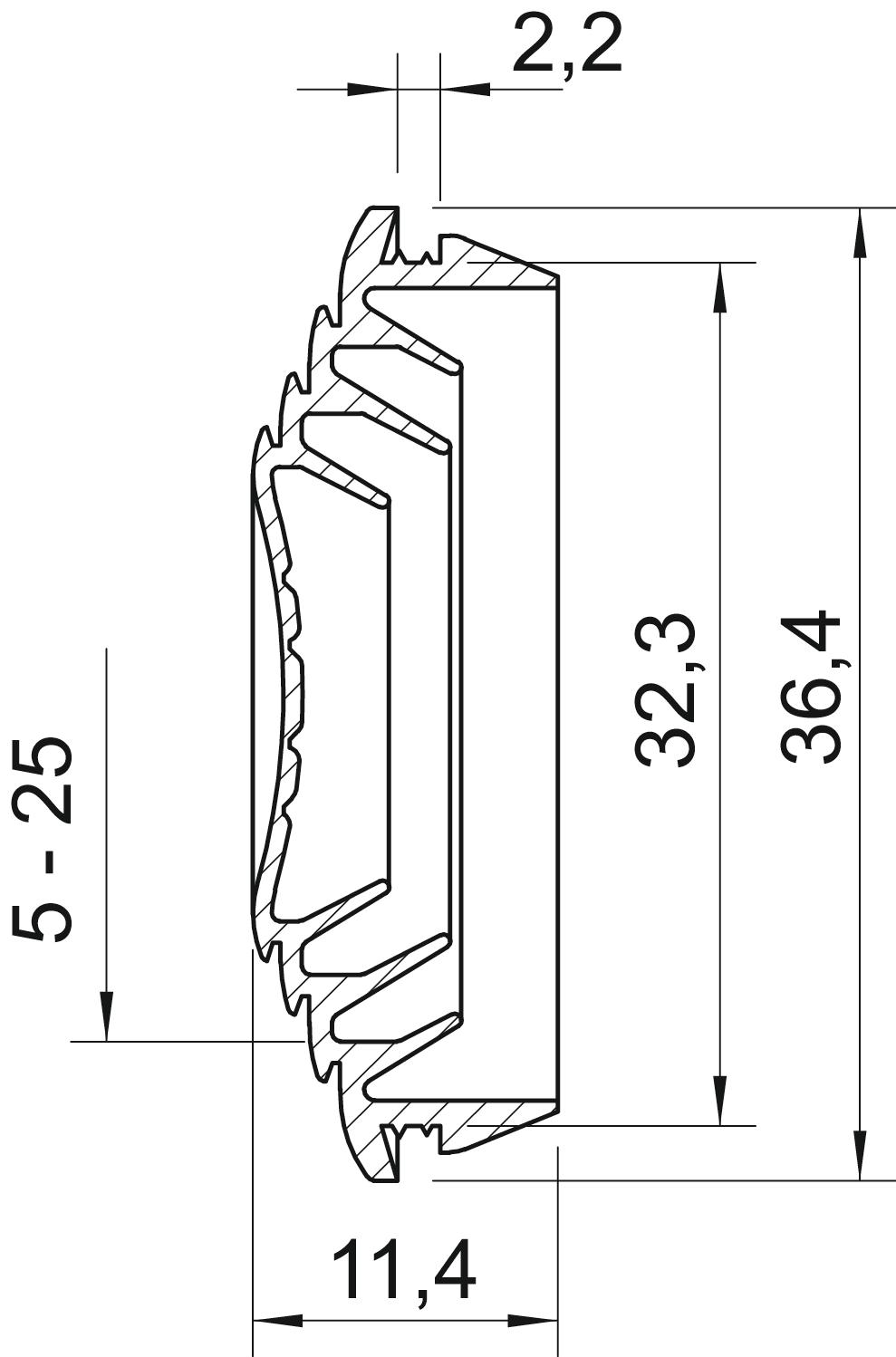

Dimension A 2,2 mm Dimension D1 36,4 mm Dimension D2 32,3 mm Dimension D3 5 mm Dimension D4 14 mm Dimension D5 15 mm Dimension L 11,4 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0151 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0151 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
