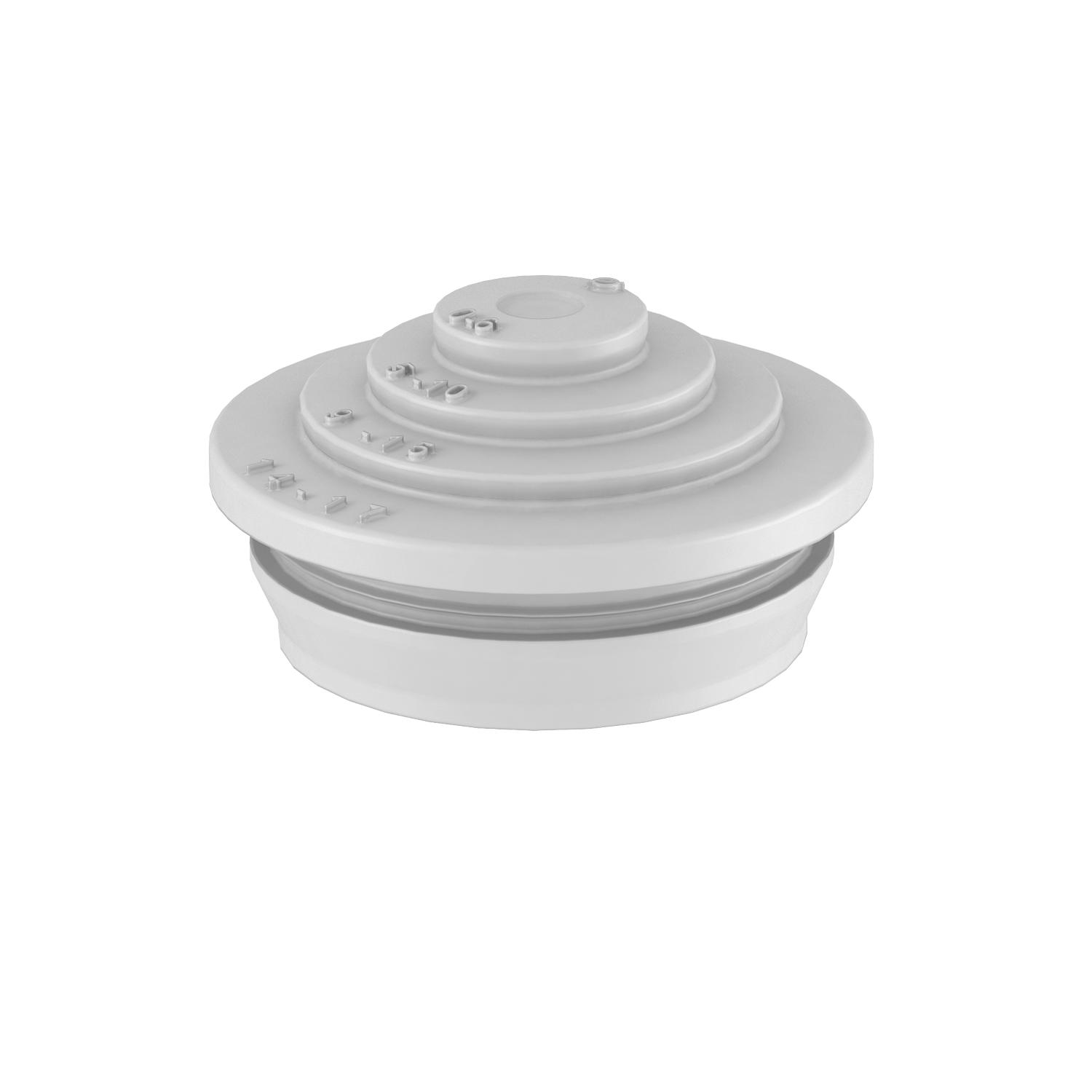

Plug-in seal EDVS, light grey
Item no. 2012375 | EAN 4012195105251
- Product description
-
Product descriptionThe push-in nipple can be cut back to suit the relevant cable diameter.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension M20 Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C for diameter, max. 17 mm Halogen-free yes Material Ethylene vinyl acetate Nominal diameter 20 mm Protection rating IP54 Size M20 Version for Cuttable Dimensions

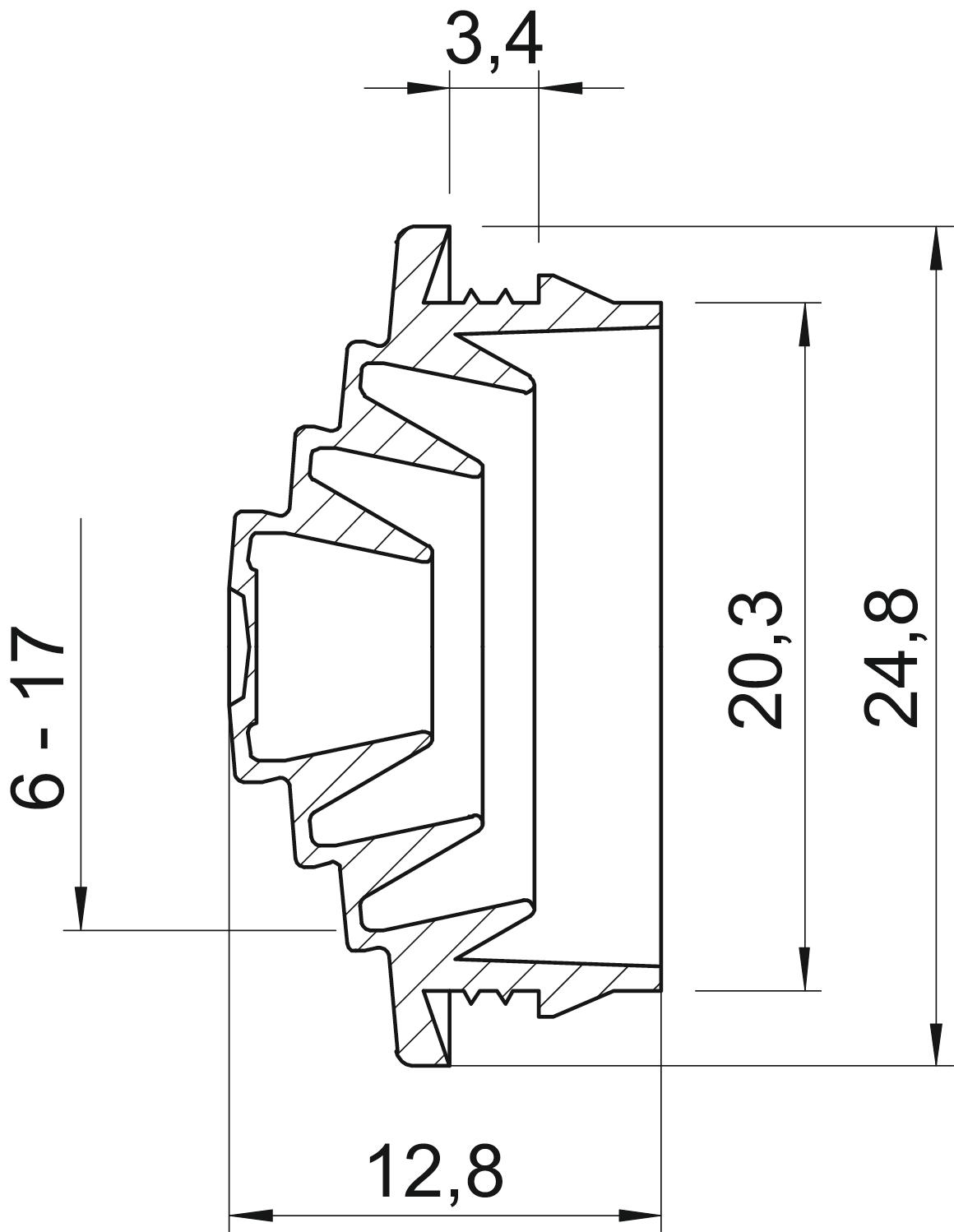

Dimension A 3,4 mm Dimension D1 24,8 mm Dimension D2 20,3 mm Dimension D3 6 mm Dimension D4 10 mm Dimension D5 15 mm Dimension L 12,8 mm Dimension t 3,4 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0103 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0103 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet EDVS M20 LGR / 2012375 , 0.21MB , pdfEU declaration of conformity EDVS M20 LGR / 2012375 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity EDVS M20 LGR / 2012375 , 0.09MB , pdfREACH Declaration of conformity EDVS M20 LGR / 2012375 , 0.12MB , pdfRoHS Declaration of conformity EDVS M20 LGR / 2012375 , 0.12MB , pdf
