Pressure clip for 10 cables 10
morepic-1 morepic-2

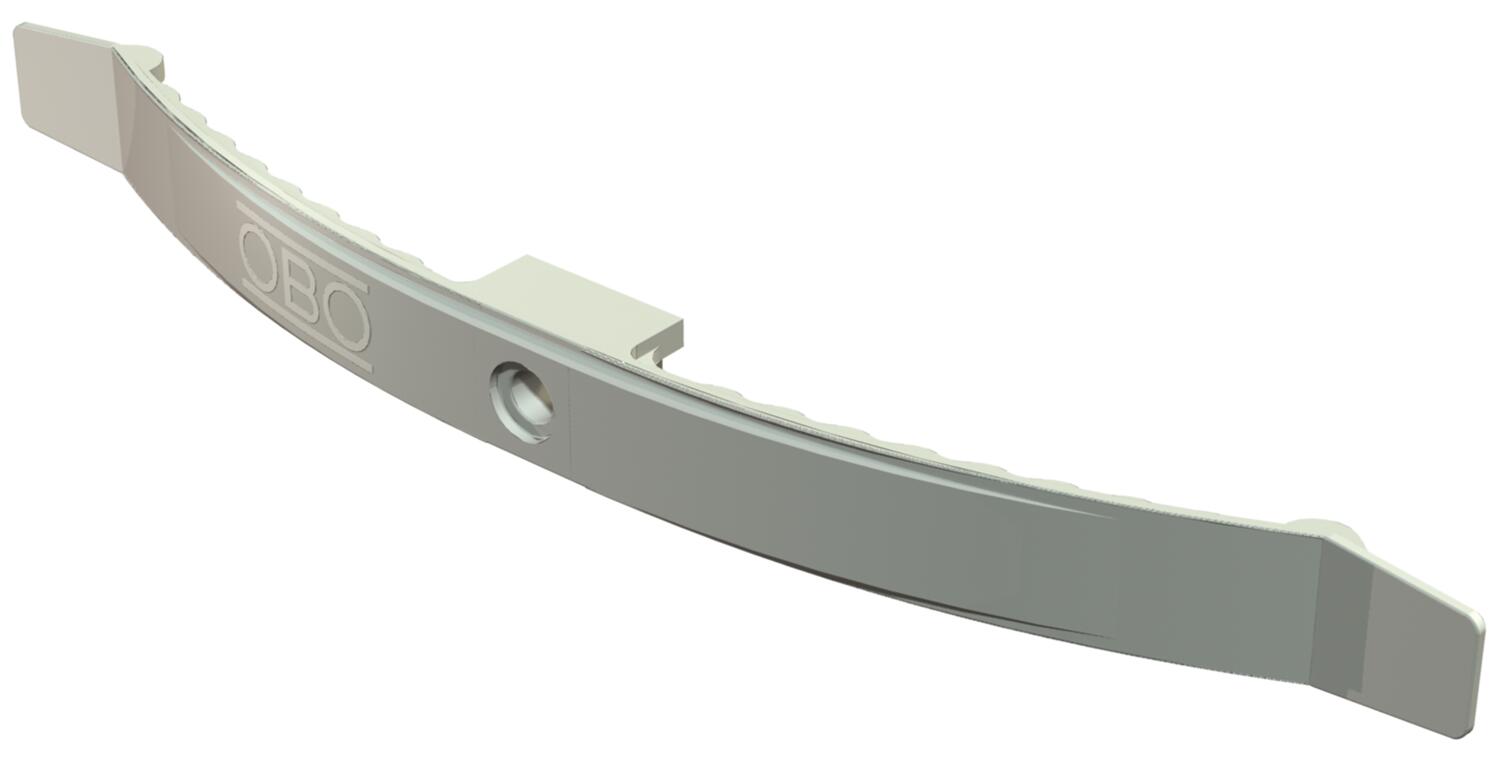

Pressure clip for 10 cables

Item no. 2205041 | EAN 4012195211396

2205041 / 2034
10
Product description
Product description
Standard version for general use, e.g. on intermediate ceilings and partition walls.
Clamping height 9 mm – with spacer 13 mm.
Fastening hole: 6 mm Ø.
2034 for max. 10 cables NYM 3 x 1.5 mm²
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 2x5 NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions no
Material Polyamide
No. of conductors NYM 3 x 1.5 10
With anchor no

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,054 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,054 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2034 10 2205041
50 piece
Downloads

Download

Download

EU declaration of conformity 2034 / 2205041 , 0.06MB , pdf
Download
REACH Declaration of conformity 2034 / 2205041 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2034 / 2205041 , 0.12MB , pdf
Download

2034 / 2205041
Download
