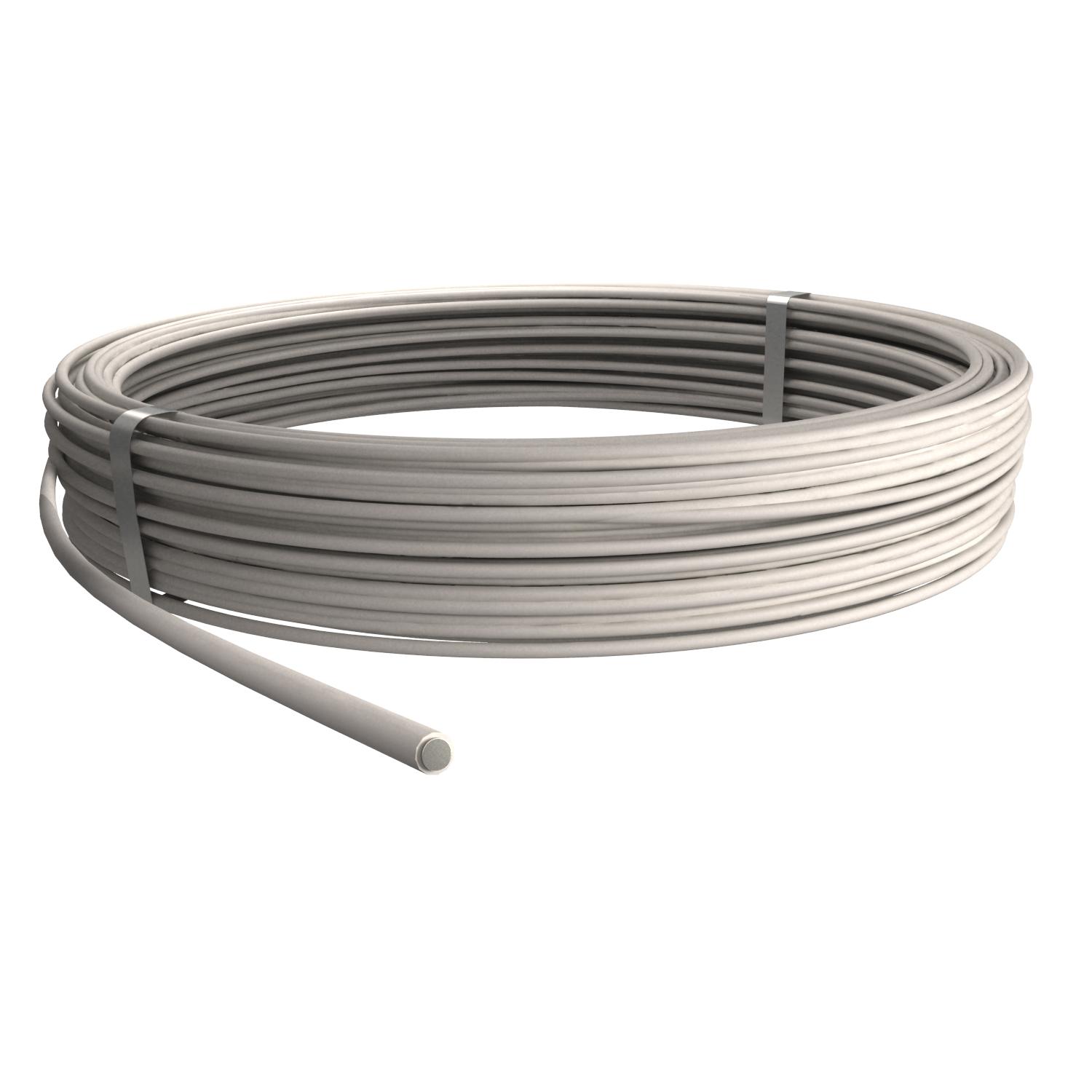

Round conductor, aluminium, with halogen-free sheathing 8 | 20 | 100 | 50 | Aluminium

Round conductor, aluminium, with halogen-free sheathing

Item no. 5021332 | EAN 4012195067474

Item no. / Types	5021332 / RD 8 TP HF

Diameter	8 mm

Normal ring (ca. kg)	20

Nomal ring (approx. m)	100

Cross-section	50 mm²

Material	Aluminium

Product description

Product description

• Can be used as a conductor

• Meets the requirements of VDE 0185-305 (IEC 62305)

• With halogen-free sheathing

• Suitable for routing on, in or under plasterwork, mortar or concrete

Technical data

Technical data

Colour	Cream; RAL 9001
Cross-section	50 mm²
Diameter	8 mm
Dimension	8mm

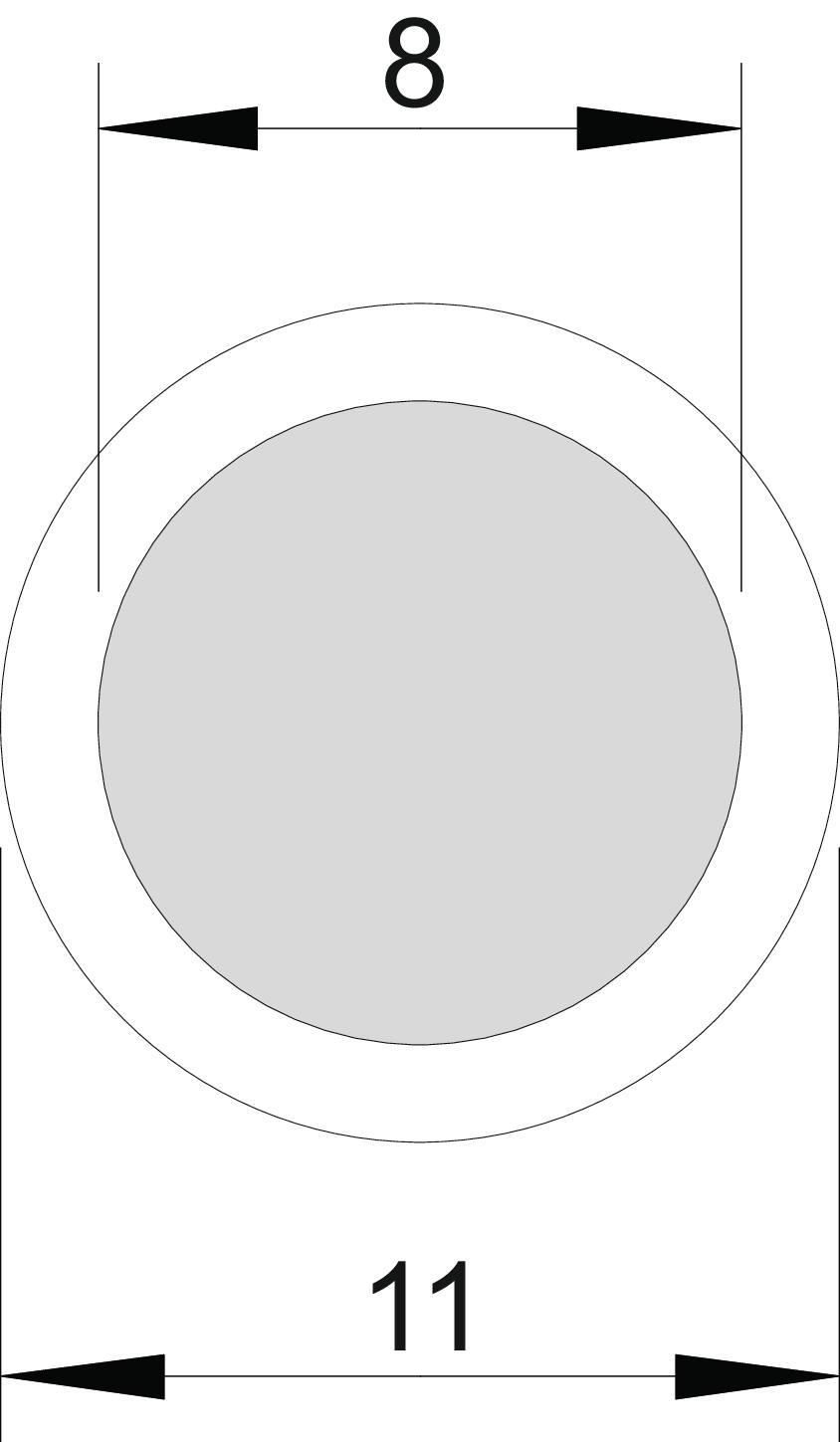

Dimension d	8 mm
Dimension D	11 mm
High voltage-resistant, insulated version	no

Length tolerance ±	5 %
Material	Aluminium
Material jacket	Halogen-free plastic
Material property	Soft
Nomal ring (approx. m)	100
Normal ring (ca. kg)	20
Number of individual wires	1

All types

All types

Types	Diameter	Normal ring (ca. kg)	Nomal ring (approx. m)	Cross-section	Material	Item no.	Quantity	SSU
RD 8 TP HF	8 mm	20	100	50 mm²	Aluminium	5021332	m	100 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Number plates Alu	311 N-ALU 16	3049345	piece	5 piece
Cable bracket for Rd 8 mm, through-way Ø 5 mm	177 20 VA M6	5207339	piece	20 piece
Cable bracket Rd 8–10 mm	177 30 M8	5207460	piece	20 piece
165 MBG... roof cable holder for flat roofs, black, with concrete	165 MBG-8-10	5218700	piece	12 piece
Connector, Rd 8−10 mm with pressure trough	5001 N-VA	5304176	piece	10 piece
Connector, Rd 8−10 mm, double, with pressure trough	5002 N-VA	5304270	piece	10 piece
Vario quick connector ALU	249 8-10 ALU	5311519	piece	30 piece
Gutter clamp RK-FIX A2	RK-FIX VA	5316459	piece	10 piece
Folding and construction clamp	RSF 177 20 VA M8	5317512	piece	50 piece
Connection component with double crossbar	287 DCT	5320707	piece	10 piece
