Screw plug, metric and PG
Item no. 2029517 | EAN 4012195389972
- Product description
-

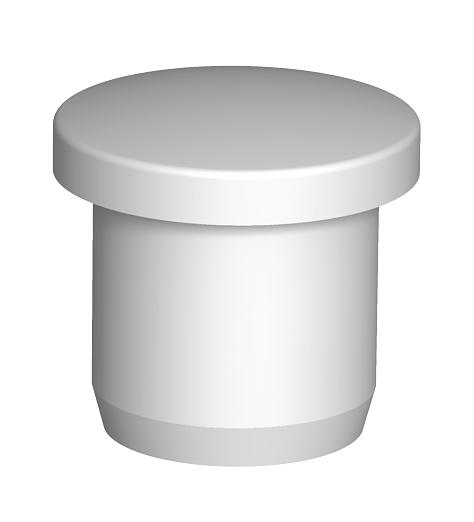

Product descriptionScrew plug in Light grey; RAL 7035 for dust-proof and waterproof closure of installed but (as yet) unfilled V-TEC... cable glands.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension 12mm explosion-proof no External diameter 16,5 mm Fibre-glass reinforced yes For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Inner diameter 12 mm Material Polyamide Nominal thread size metric/PG 20 Permitted temperature range, max. 100 °C Permitted temperature range, min. -40 °C Screw for PG thread dimension 16 Size M20 / Pg16 Suitable for metric thread dimension 20 Thread type Metric Version for Miscellaneous Dimensions

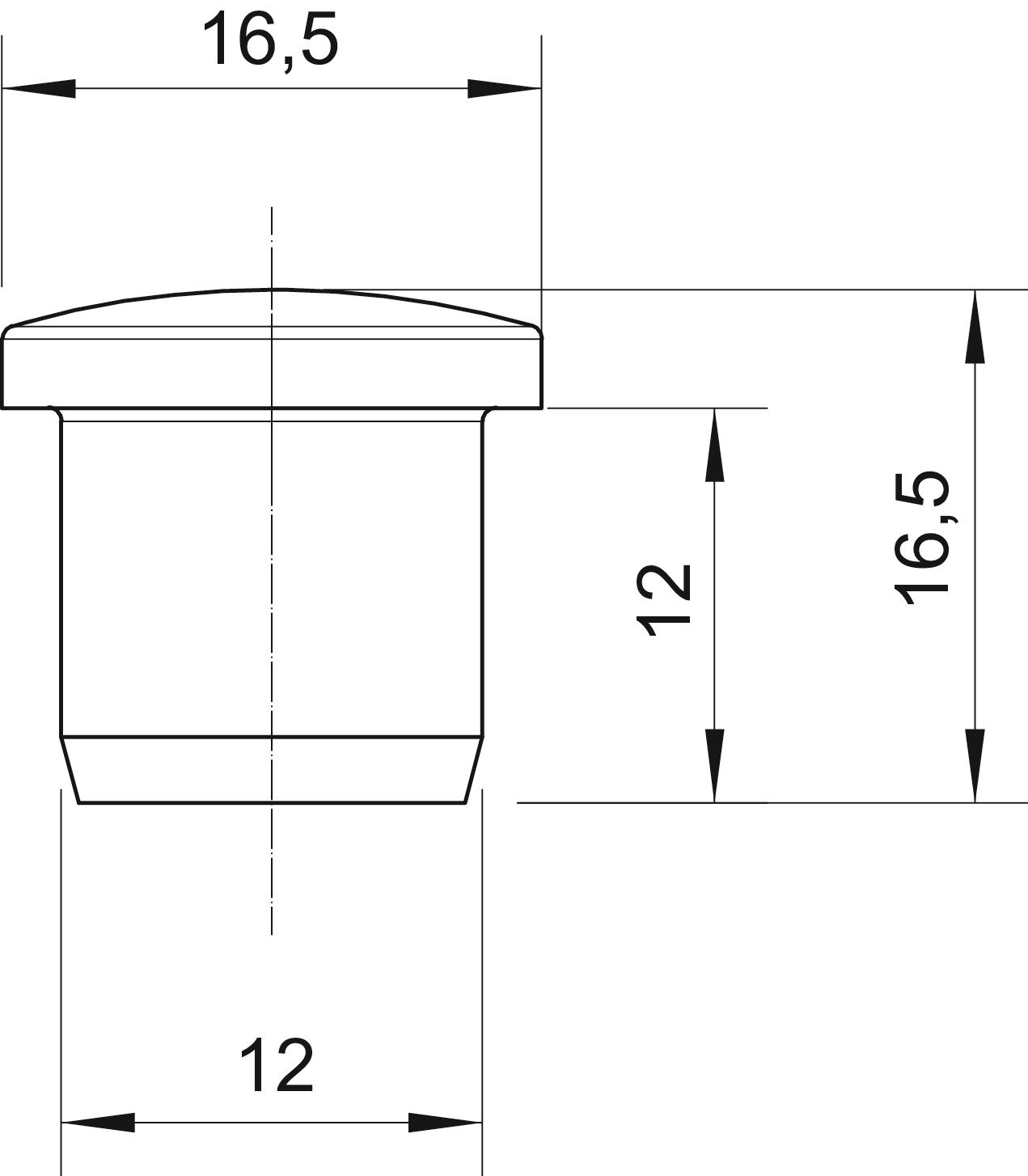

Dimension D1 12 mm Dimension D2 16,5 mm Dimension H 16,5 mm Dimension L 12 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0016 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0016 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 107VS VM 12 PA / 2029517 , 0.14MB , pdfREACH Declaration of conformity 107VS VM 12 PA / 2029517 , 0.12MB , pdfRoHS Declaration of conformity 107VS VM 12 PA / 2029517 , 0.12MB , pdf
