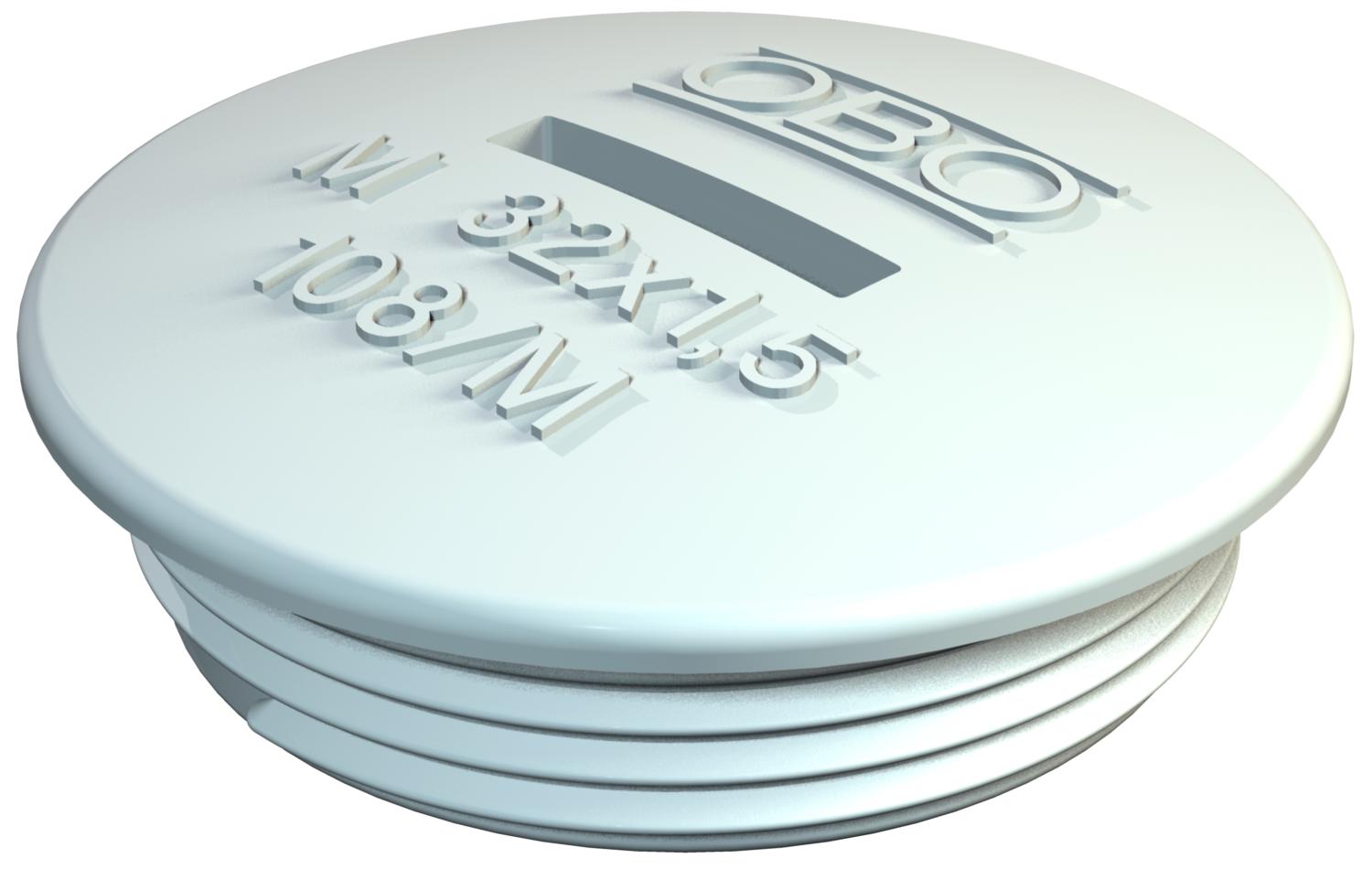

Screw plug, metric thread
Item no. 2033011 | EAN 4012195426554
- Product description
-
Product descriptionScrew plug in accordance with DIN 46320, with metric thread to IEC 423. Protection rating IP54, IP68 (5 bar/1h) possible in conjunction with sealing ring type 171.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension M20 explosion-proof no Fibre-glass reinforced no For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant yes Material Polystyrene Nominal thread size metric/PG 20 Protection rating IP54 Thread M20 x 1,5 Thread increase 1,5 mm Thread type Metric Unstable torque 2,5 Nm Dimensions

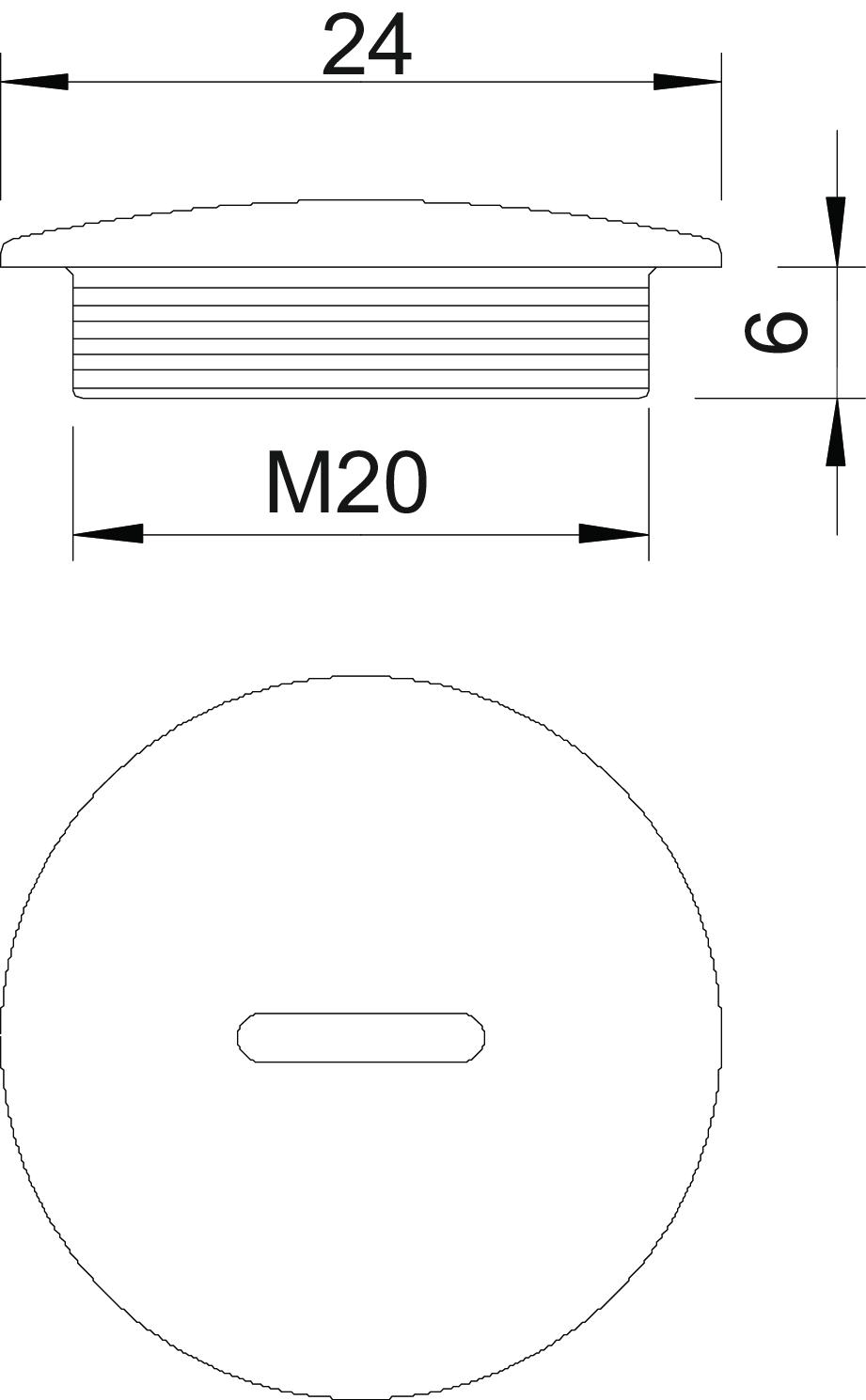

Dimension D 24 mm Dimension L 6 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0067 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0067 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 108 M20 PS / 2033011 , 0.20MB , pdfEU declaration of conformity 108 M20 PS / 2033011 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 108 M20 PS / 2033011 , 0.09MB , pdfREACH Declaration of conformity 108 M20 PS / 2033011 , 0.12MB , pdfRoHS Declaration of conformity 108 M20 PS / 2033011 , 0.09MB , pdf
